1985 Suzuki GS300L Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1985 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

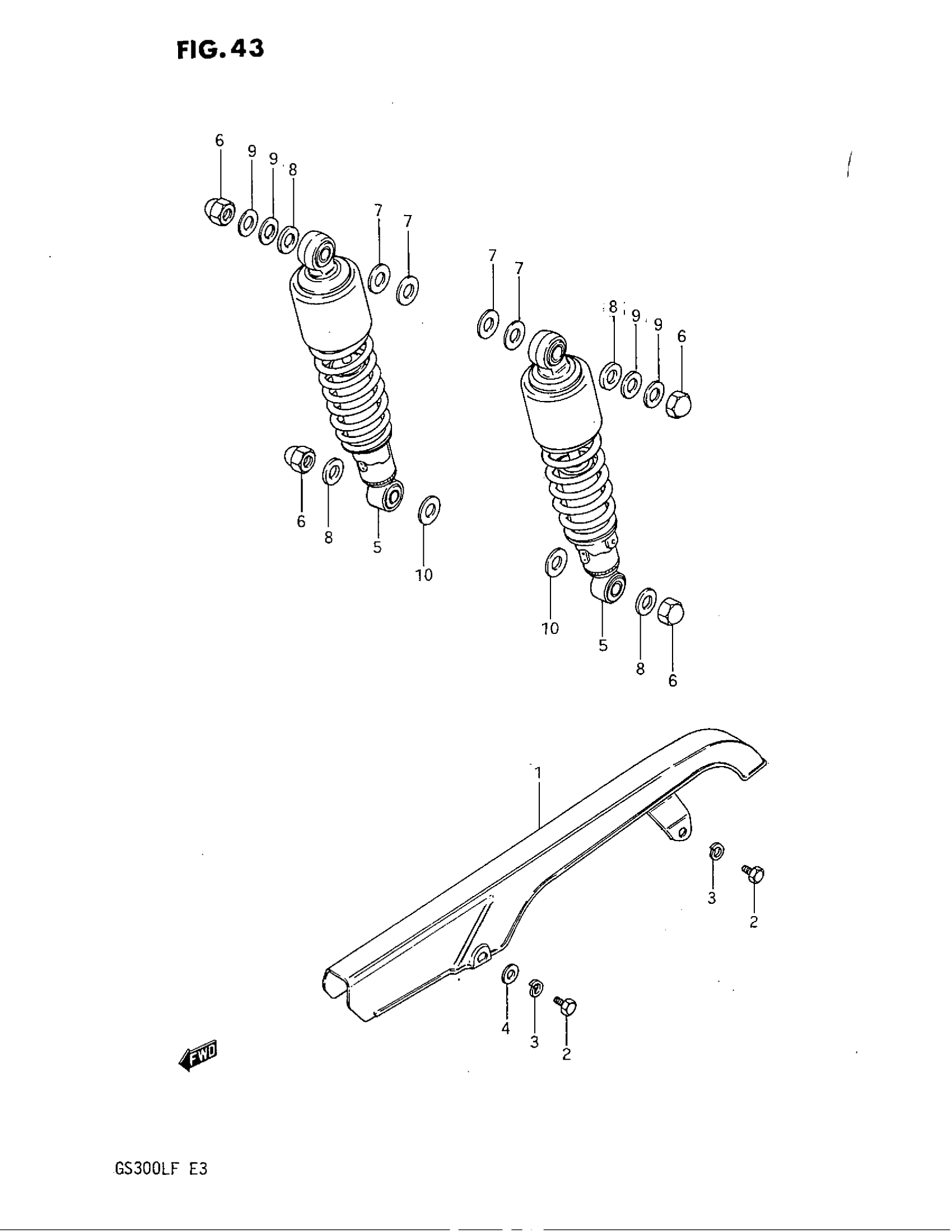

1985 Suzuki GS300L Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE

61310-11900

1
Out of stock

2

BOLT This part replaces 01107-06108.

01500-06107

2
Out of stock

3

2

$2.28

In stock

4

WASHER This part replaces 08322-21068.

08322-01067

1
Out of stock

5

SHOCK ABSORBER, REAR

62100-11910

2
Out of stock

6

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

7

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

8

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

4
Out of stock

9

WASHER This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

10

WASHER This part replaces 09160-12004.

09160-12088

2
Out of stock
