1983 Suzuki GS300L Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1983 Suzuki GS300L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

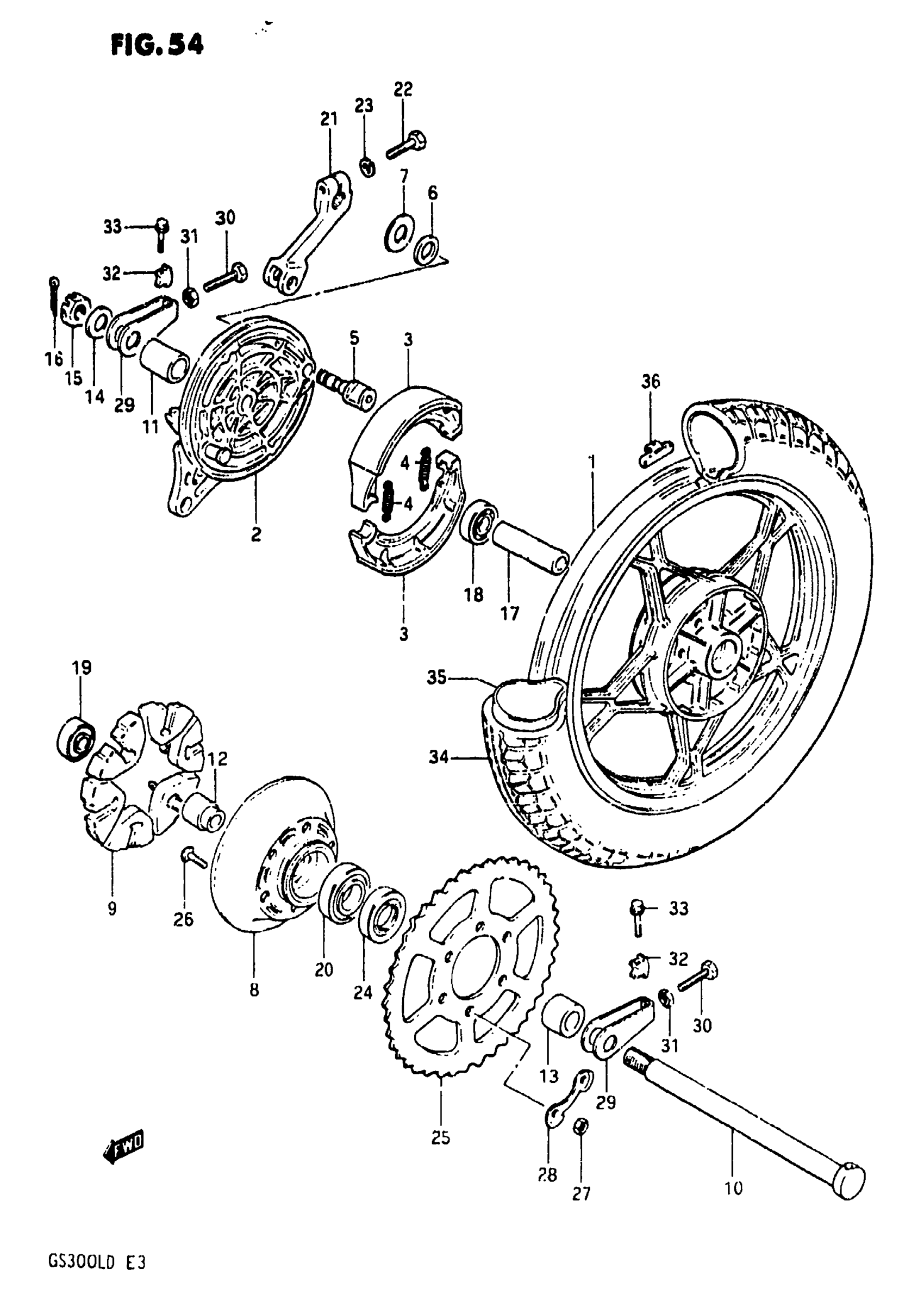

1983 Suzuki GS300L Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL,REAR (2.15x16)(BLACK)

64150-37350-291

1
Out of stock

2

PANEL

64210-44060

1
Out of stock

3

SHOE SET, BRAKE This part replaces 64410-11301.

64400-11860

2
Out of stock

4

SPRING

55420-30000

2
Out of stock

5

CAM, REAR BRAKE This part replaces 54440-08003.

54440-08004

1
Out of stock

6

O RING (ID:14.8,D:2.40) This part replaces 09280-15001.

09280-15003

1
Out of stock

7

WASHER This part replaces 09160-15001.

09160-15048

1
Out of stock

8

DRUM, SPROCKET

64611-44001

1
Out of stock

9

SHOCK ABSORBER, REAR HUB

64651-11300

6
Out of stock

10

AXLE,REAR

64711-44400

1
Out of stock

11

SPACER,RH

09180-17043

1
Out of stock

12

SPACER,RR HUB B This part replaces 64733-33000.

64733-3300V

1
Out of stock

13

SPACER, LH

09180-17042

1
Out of stock

14

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

1
Out of stock

15

NUT

09141-16001

1
Out of stock

16

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

17

SPACER,17.6X24X This part replaces 09180-17056.

09180-17056-XC0

1
Out of stock

18

BEARING, REAR HUB RH

08143-63037

1
Out of stock

19

BEARING, REAR HUB LH

08143-62037

1
Out of stock

20

BEARING

08113-62057

1
Out of stock

21

LEVER, BRAKE CAM

64451-44400

1
Out of stock

22

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

23

1

$2.28

In stock

24

SEAL,OIL(30.5X5 This part replaces 09285-30001.

09285-30003

1
Out of stock

25

SPROCKET, REAR (NT:42)

64511-11530

1
Out of stock

26

BOLT | MODEL Z This part replaces 09119-10002.

09105-10001

6
Out of stock

26

BOLT | MODEL D This part replaces 09119-10021.

09105-10003

6
Out of stock

27

NUT This part replaces 09140-10026.

09140-10026-XC0

6
Out of stock

28

LOCK WASHER

09169-10006

3
Out of stock

29

ADJUSTER, CHAIN

61410-47200

2
Out of stock

30

BOLT (8X50) This part replaces 09104-08018.

09104-08034

2
Out of stock

31

2

$1.93

In stock

32

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

33

BOLT, LH This part replaces 01517-08508.

01550-08507

2
Out of stock

34

TIRE, REAR (4,60S16) BS | IRC This part replaces 65100-44510.

65100-38330

1
Out of stock

34

TIRE, REAR (4,60S16) BS | BS This part replaces 65100-44530.

65100-38330

1
Out of stock

35

TUBE, INNER REAR | IRC

65200-37300

1
Out of stock

35

TUBE, INNER REAR | BS This part replaces 65200-37320.

65200-37300

1
Out of stock

36

BALANCER, WHEEL NO.2 This part replaces 55411-45100.

55412-17G00

1
Out of stock

36

BALANCER (30G)

55412-45100

—
Out of stock

36

BALANCER (10G) This part replaces 55413-45100.

55411-00A00

1
Out of stock
