1981 Suzuki GS250T Stand - Rear Brake Diagram

← All diagrams

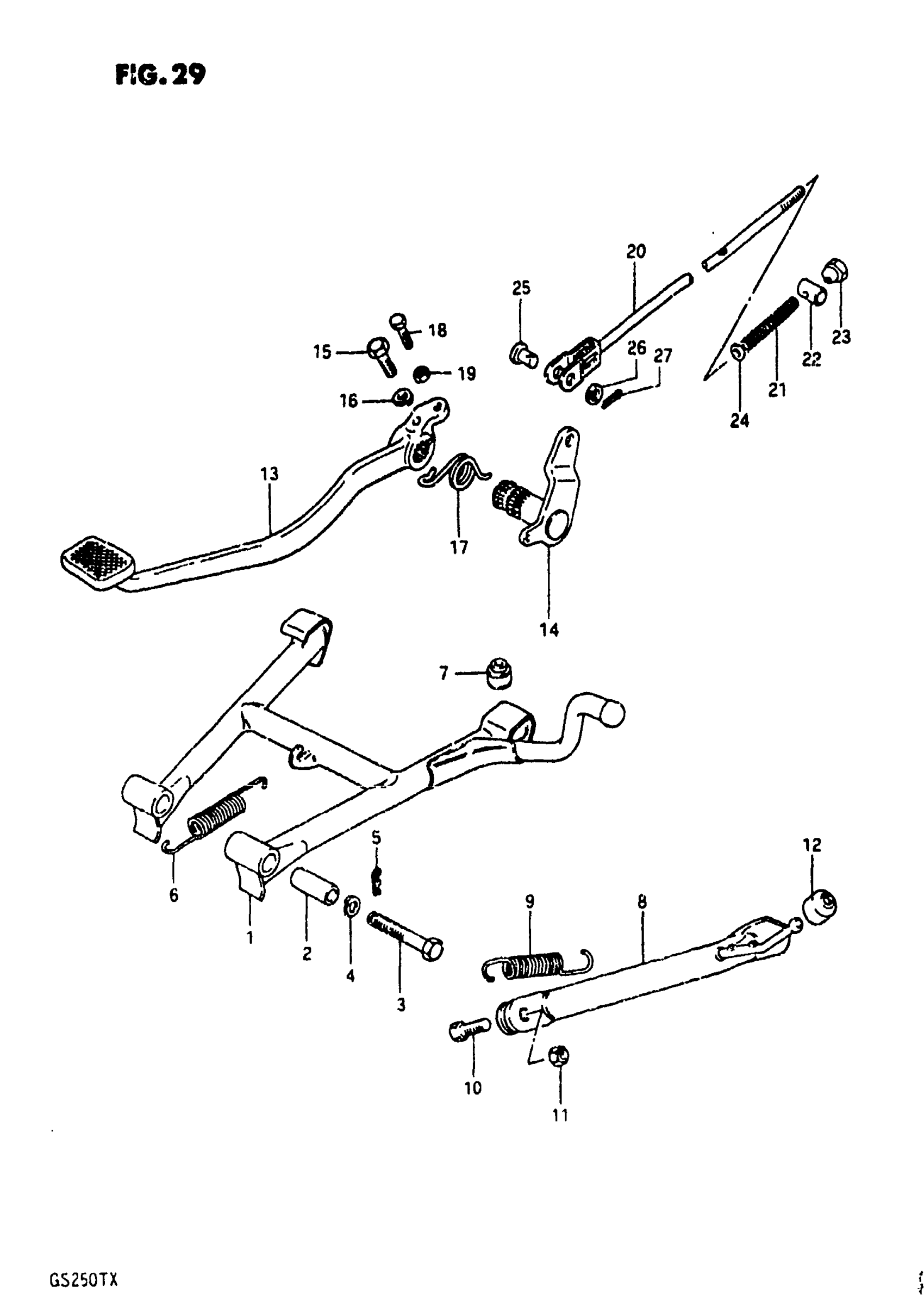

Find the part on the Stand - Rear Brake diagram for your 1981 Suzuki GS250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS250T Stand - Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAND, CENTER | MODEL T

42100-44100

1
Out of stock

1

STAND, CENTER | MODEL X

42100-44300

1
Out of stock

2

SPACER

09180-10040

2

$3.12

In stock

3

BOLT, 10 X 65 This part replaces 09101-10018.

09101-10030

2
Out of stock

4

2

$1.93

In stock

5

CLIP This part replaces 09385-10001.

09385-10005

2
Out of stock

6

1

$8.50

In stock

7

CUSHION

09321-10002

1

$2.35

In stock

8

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 42310-11400.

42310-11980

1
Out of stock

8

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 42310-11420.

42310-11960

1
Out of stock

9

1

$8.93

In stock

10

BOLT

09100-10067

1
Out of stock

11

1

$2.35

In stock

12

CUSHION

09320-07001

1

$2.92

In stock

13

PEDAL, BRAKE

43110-44200

1
Out of stock

14

ARM, BRAKE PEDAL ROD

43120-44200

1
Out of stock

15

1

$2.73

In stock

16

1

$2.28

In stock

17

SPRING

09448-37016

1
Out of stock

18

1

$2.48

In stock

19

1

$1.82

In stock

20

ROD ASSY, REAR BRAKE | Includes Item(s) 21 - 27

43300-44200

1
Out of stock

21

SPRING

09440-09004

1
Out of stock

22

.PIN (13X18) This part replaces 09209-13003.

09209-13018

1
Out of stock

23

.NUT This part replaces 09150-06001.

09150-06010

1
Out of stock

24

1

$1.84

In stock

25

PIN

09200-06013

1

$2.38

In stock

26

1

$1.84

In stock

27

COTTER PIN This part replaces 04111-20208.

04111-2020A

1
Out of stock
