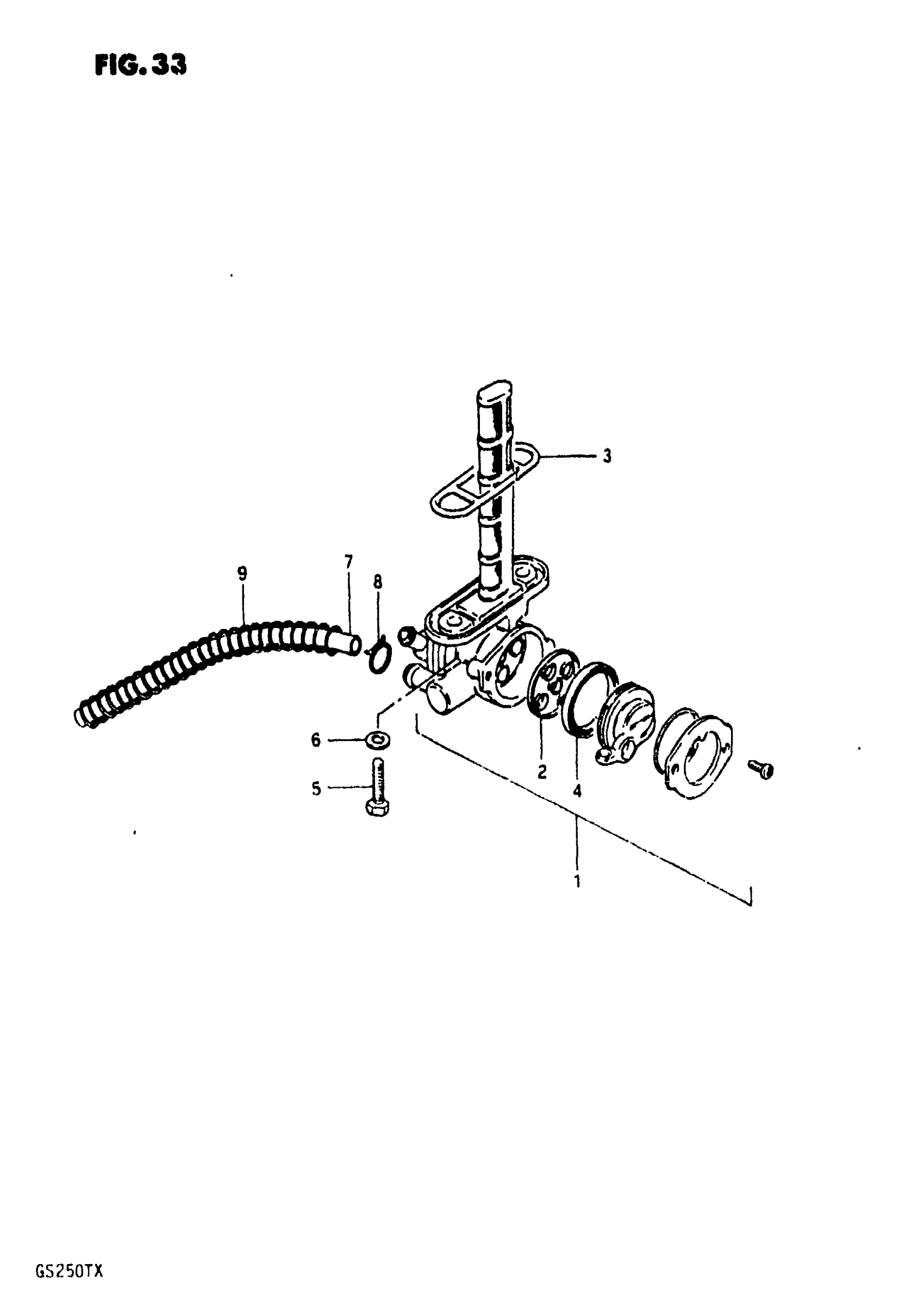

Suzuki GS250T (1981) FUEL COCK Diagram

#

Description

Price

1

COCK ASSY,FUEL | Includes Item(s) 2 - 4 This part replaces 44300-44250.

44300-44251

Unavailable

2

GASKET This part replaces 44341-33150.

44341-33151

$2.20

3

O RING

44348-31051

Unavailable

4

V SEAL,FUEL COC This part replaces 44353-33154.

44353-33155

$5.17

5

SCREW This part replaces 09128-06005.

02162-0616B

$2.13

6

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.09

7

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$14.30

8

CLIP

09401-10403

$1.73

9

SPRING This part replaces 09440-13016.

09440-13052

$7.10
