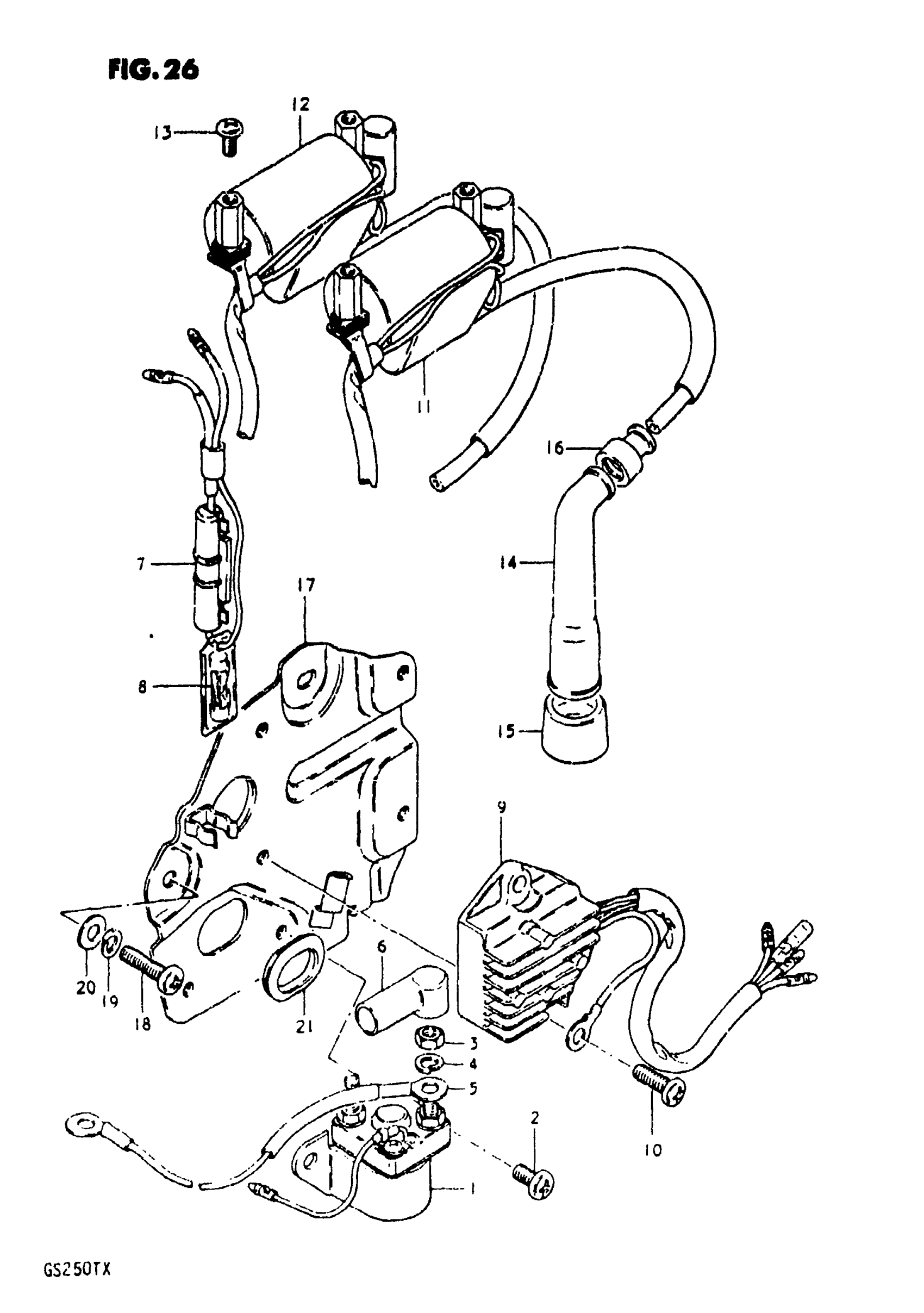

Suzuki GS250T (1981) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$69.94

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$1.91

4

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.89

5

LEAD WIRE, (-) This part replaces 33850-44110.

33850-03201

$13.20

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$7.40

7

FUSE CASE ASSY | Includes Item(s) 8 This part replaces 36740-15010.

36740-15011

$9.22

8

FUSE (15A)

09481-15001

$2.14

9

RECTIFIER ASSY This part replaces 32800-44040.

32800-47121

Unavailable

10

SCREW This part replaces 02112-06168.

02112-06167

$1.46

11

COIL ASSY,IGNIT This part replaces 33410-44220.

33410-44X50

Unavailable

12

COIL ASSY,IGNIT This part replaces 33420-44220.

33410-44X50

Unavailable

13

SCREW This part replaces 02112-05108.

02112-05107

$1.46

14

CAP, SPARK PLUG

33510-11410

$24.82

15

SEAL, SPARK PLUG This part replaces 33541-32410.

33541-38210

$4.60

16

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.15

17

PLATE, PARTS HOLDER | MODEL T This part replaces 47410-44100.

47410-44101

Unavailable

17

PLATE, ELECTRIC PARTS HOLDER | MODEL X

47410-44101

Unavailable

18

SCREW This part replaces 02112-06208.

02112-06207

$1.83

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

20

WASHER This part replaces 08322-21068.

08322-01067

$1.93

21

GROMMET | MODEL T

09308-19001

Unavailable
