1981 Suzuki GS250T Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1981 Suzuki GS250T, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

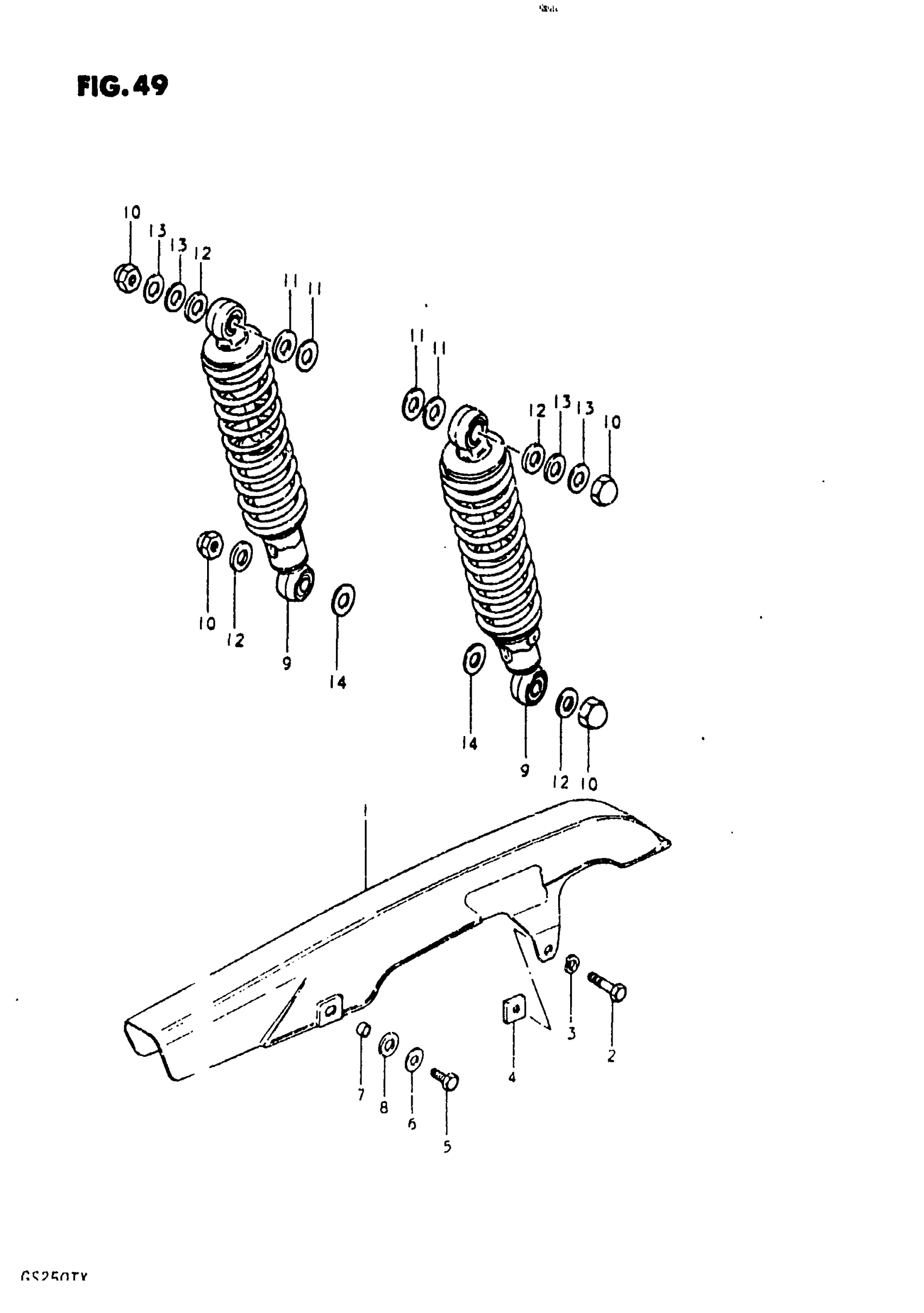

1981 Suzuki GS250T Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, CHAIN | MODEL T This part replaces 61311-44100-291.

61311-44102

1
Out of stock

1

CASE, CHAIN | MODEL X This part replaces 61311-44102-291.

61311-44102

1
Out of stock

2

1

$2.10

In stock

3

1

$2.28

In stock

4

NUT

61316-43000

1
Out of stock

5

BOLT This part replaces 01107-06108.

01500-06107

1
Out of stock

6

WASHER (65x18x1.0)

09160-06056

1
Out of stock

7

SPACER This part replaces 09180-06032.

09180-06246

1
Out of stock

8

FUEL TANK UPPER WASHER This part replaces 09320-08005.

09161-08006

1
Out of stock

9

NO DESCRIPTION AVAILABLE | MODEL T,~F.NO.700560 This part replaces 62100-11410.

62100-11401

2
Out of stock

9

NO DESCRIPTION AVAILABLE | MODEL T,F. NO.700561~ This part replaces 62100-11411.

62100-11401

2
Out of stock

9

NO DESCRIPTION AVAILABLE | MODEL X This part replaces 62100-11420.

62100-11440

2
Out of stock

10

NUT This part replaces 08313-11108.

08313-10107

4
Out of stock

11

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

12

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

4
Out of stock

13

WASHER This part replaces 09160-10033.

09160-10128-XC0

4
Out of stock

14

WASHER This part replaces 09160-12004.

09160-12088

2
Out of stock
