1986 Suzuki GS1150EF Cylinder Head Diagram

← All diagrams

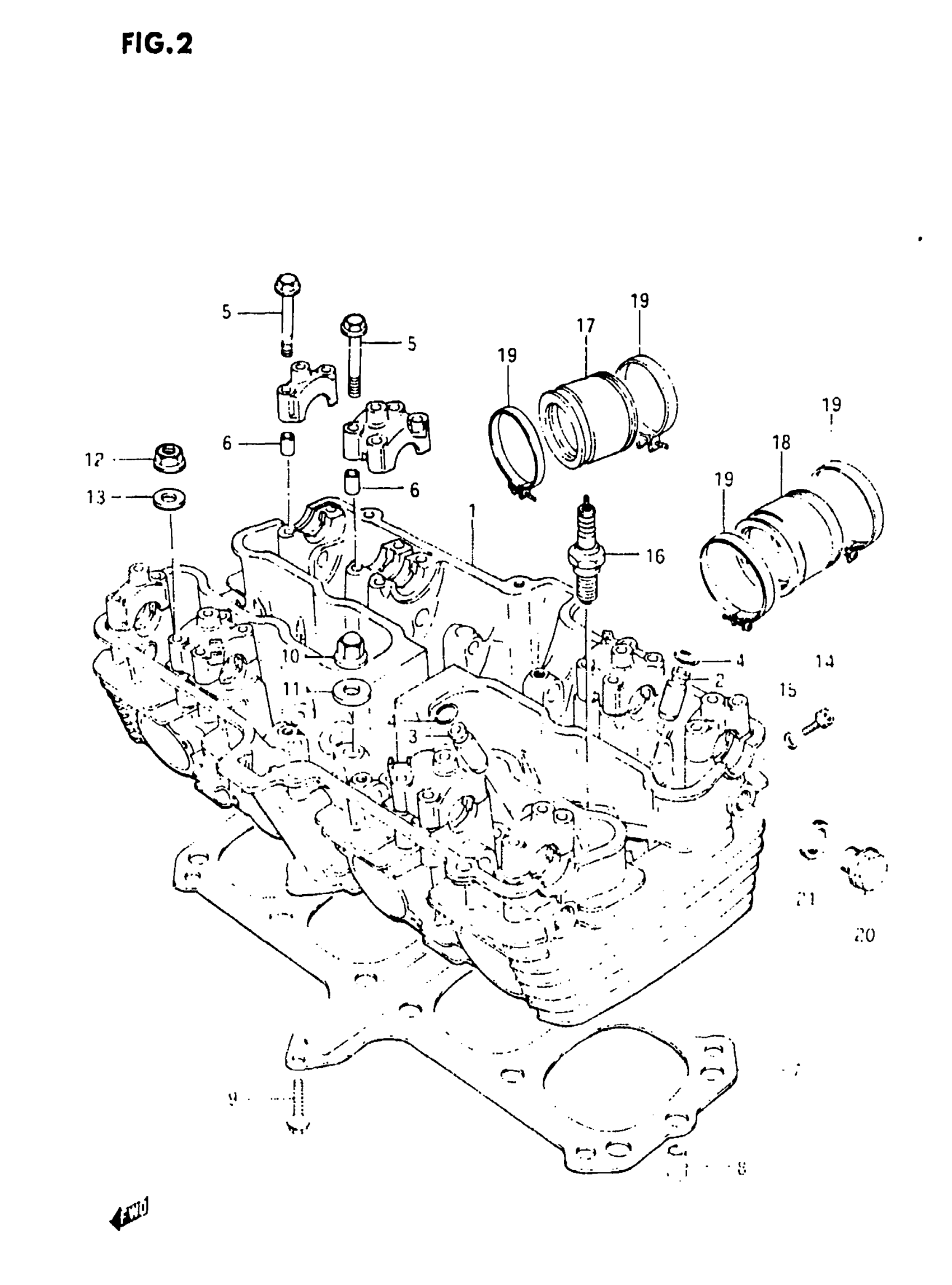

Find the part on the Cylinder Head diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HEAD ASSY, CYLINDER | Includes Item(s) 2 - 6

11100-00A03

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-49290

8
Out of stock

3

GUIDE, EXHAUST VALVE

11115-49290

8
Out of stock

4

.RING (10X85)

09381-10004

16
Out of stock

5

BOLT (6X39)

09103-06026

24
Out of stock

6

PIN

09206-08001

16
Out of stock

7

GASKET, CYLINDER HEAD

11141-00A03

1
Out of stock

8

PIN

04211-11189

2
Out of stock

9

BOLT This part replaces 01517-06305.

01550-0630A

1
Out of stock

10

NUT

09159-10026

8
Out of stock

11

GASKET

09168-10017

8
Out of stock

12

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

4
Out of stock

13

WASHER

09160-10039

4
Out of stock

14

NO DESCRIPTION AVAILABLE This part replaces 07110-05085.

07130-05083

4
Out of stock

15

GASKET

09168-05010

4
Out of stock

16

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

4
Out of stock

16

SPARK PLUG (ND,X27ES-U)

09482-00185

4
Out of stock

17

2

$18.68

In stock

18

2

$18.68

In stock

19

CLAMP

09402-52306

8
Out of stock

20

4

$3.63

In stock

21

GASKET

09168-14004

4
Out of stock
