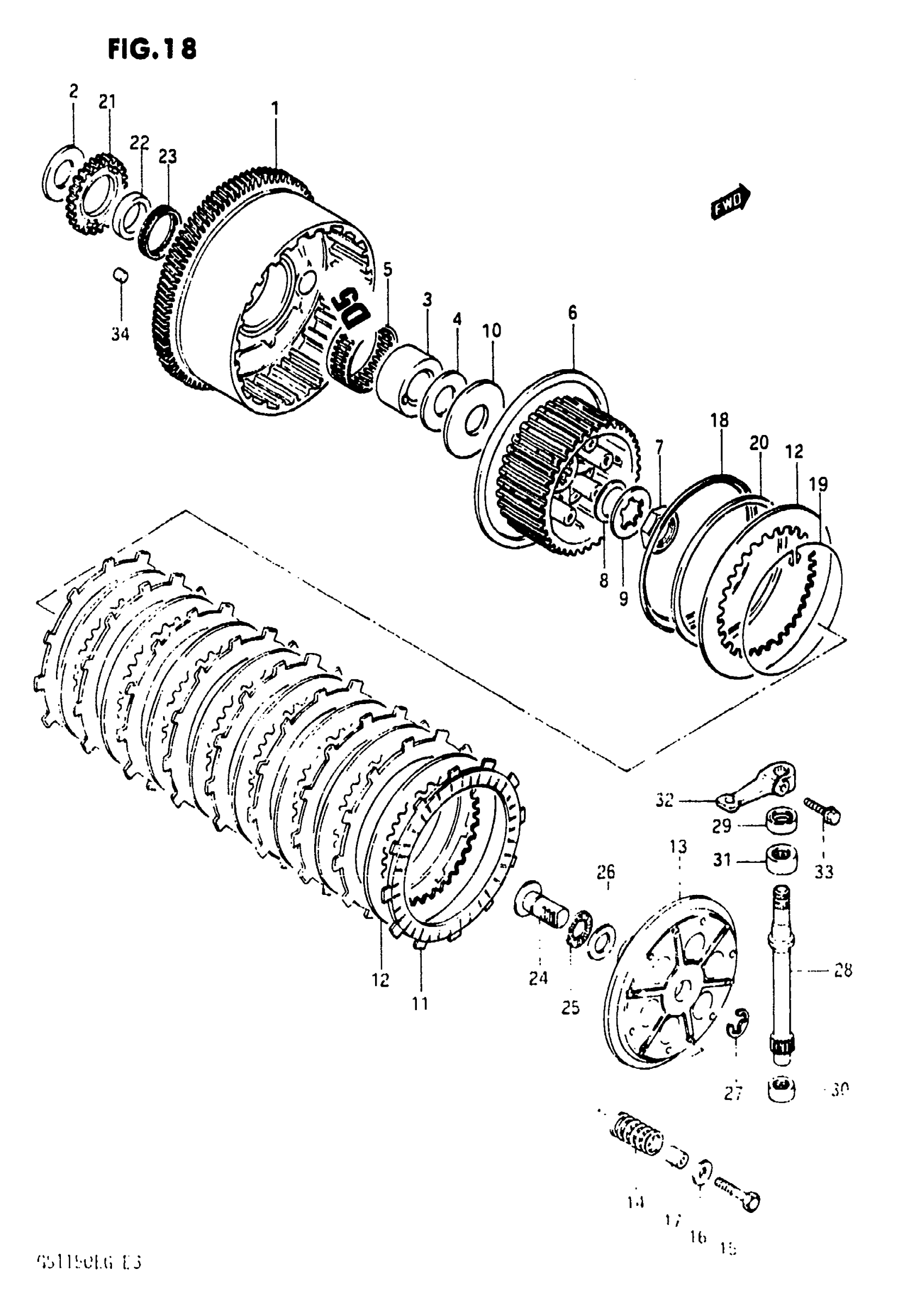

Suzuki GS1150EF (1986) CLUTCH Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | GS550ES3/ESEMODEL F/F2 This part replaces 21200-00A00.

21200-00A03

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL GMODEL G This part replaces 21200-00A02.

21200-00A03

Unavailable

2

WASHER

09160-25055

$9.37

3

SPACER

21251-09300

Unavailable

4

SHIM (T:1.0)

21261-09300

Unavailable

4

SHIM (T:1.05)

21262-09300

Unavailable

4

SHIM (T:1.1)

21263-09300

Unavailable

4

SHIM (T:1.15)

21264-09300

Unavailable

4

SHIM (T:1.2)

21265-09300

Unavailable

5

BEARING

09263-51002

$48.07

6

HUB, SLEEVE

21410-00A00

$124.29

7

NUT This part replaces 09140-24011.

09140-24014

Unavailable

8

WASHER

09164-24006

$3.38

9

WASHER

09167-25007

Unavailable

10

WASHER

09160-25022

Unavailable

11

PLATE, DRIVE (T:3) This part replaces 21441-49200.

21441-31D00

$24.61

12

PLATE, DRIVEN

21451-49200

$8.97

13

DISC, PRESSURE

21462-49201

Unavailable

14

SPRING

09440-19014

$5.98

15

BOLT, REAR This part replaces 01107-06308.

01500-06307

$3.17

16

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

17

SPACER (6.2X12X14) This part replaces 09180-06088.

09180-06174

$5.09

18

SEAL, WAVE WASHER

21471-49100

$8.95

19

RING, STOPPER

21481-45100

$5.30

20

WAVE WASHER

09164-00003

$11.60

21

GEAR, OIL PUMP DRIVE (NT:34)

16321-49000

Unavailable

22

SPACER

16325-45001

Unavailable

23

BEARING

09263-36002

Unavailable

24

RACK, RELEASE

23165-49201

Unavailable

25

BEARING

09263-15003

$7.49

26

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.52

27

E-RING This part replaces 08332-11128.

08332-1112A

$2.35

28

PINION, RELEASE

23261-45400

Unavailable

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

30

BEARING (12X19X12)

09263-12014

$11.31

31

BEARING (15X22X12)

09263-15012

$16.83

32

ARM, RELEASE

23271-45400

Unavailable

33

BOLT This part replaces 01547-06208.

01547-06207

$2.01

34

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

$3.28

28

PINION, RELEASE

23261-45400

Unavailable

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

30

BEARING (12X19X12)

09263-12014

$11.31

31

BEARING (15X22X12)

09263-15012

$16.83

32

ARM, RELEASE

23271-45400

Unavailable

33

BOLT This part replaces 01547-06208.

01547-06207

$2.01

34

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

$3.28
