1986 Suzuki GS1150EF AIR Cleaner Diagram

← All diagrams

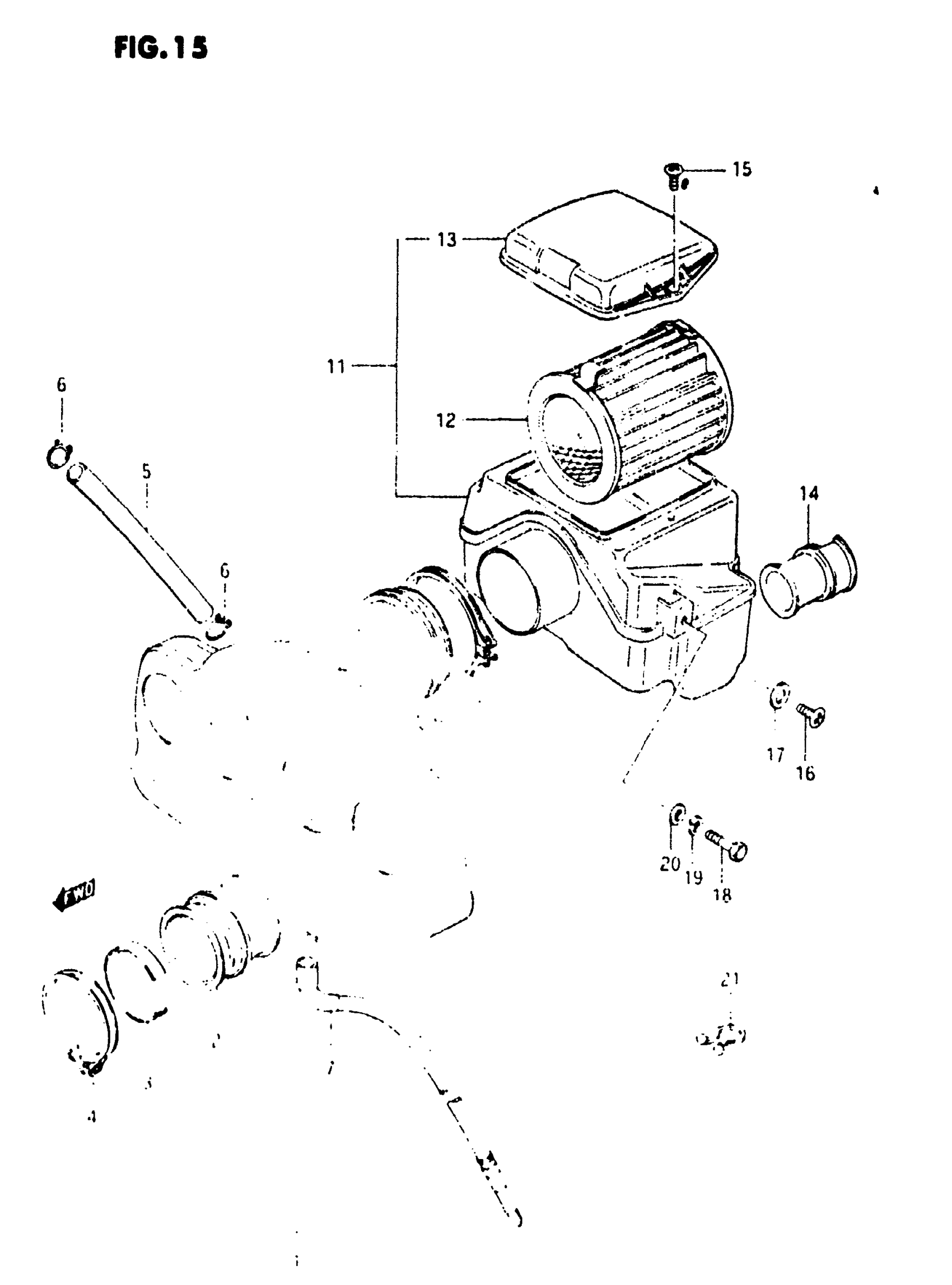

Find the part on the AIR Cleaner diagram for your 1986 Suzuki GS1150EF, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Suzuki GS1150EF AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAMBER ASSY | Includes Item(s) 2 - 10

13701-00A00

1
Out of stock

2

HOSE, OUTLET

13881-49021

4
Out of stock

3

RING

13885-47030

4
Out of stock

4

CLAMP This part replaces 09402-64207.

09402-64203

4
Out of stock

5

HOSE, BREATNER (L:240)

13854-00240

1
Out of stock

6

CLIP This part replaces 13828-37300.

09401-16401

2
Out of stock

7

TUBE,DRAIN This part replaces 13870-21264.

13870-21309

1
Out of stock

8

CLIP This part replaces 13824-00A00.

09401-13409

1
Out of stock

9

TUBE, JOINT

13739-00A00

1
Out of stock

10

CLAMP

09402-80207

1
Out of stock

11

CASE ASSY | Includes Item(s) 12 - 15

13702-00A00

1
Out of stock

12

FILTER

13780-00A00

1
Out of stock

13

CAP

13740-00A00

1
Out of stock

14

TUBE, INLET

13891-00A00

2
Out of stock

15

.SCREW This part replaces 02142-05125.

02142-0512A

2
Out of stock

16

SCREW This part replaces 02112-06168.

02112-06167

1
Out of stock

17

WASHER This part replaces 09160-06007.

09160-06084

1
Out of stock

18

2

$2.10

In stock

19

2

$2.28

In stock

20

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

21

CLAMP, AIR VENT

09408-00031

1
Out of stock
