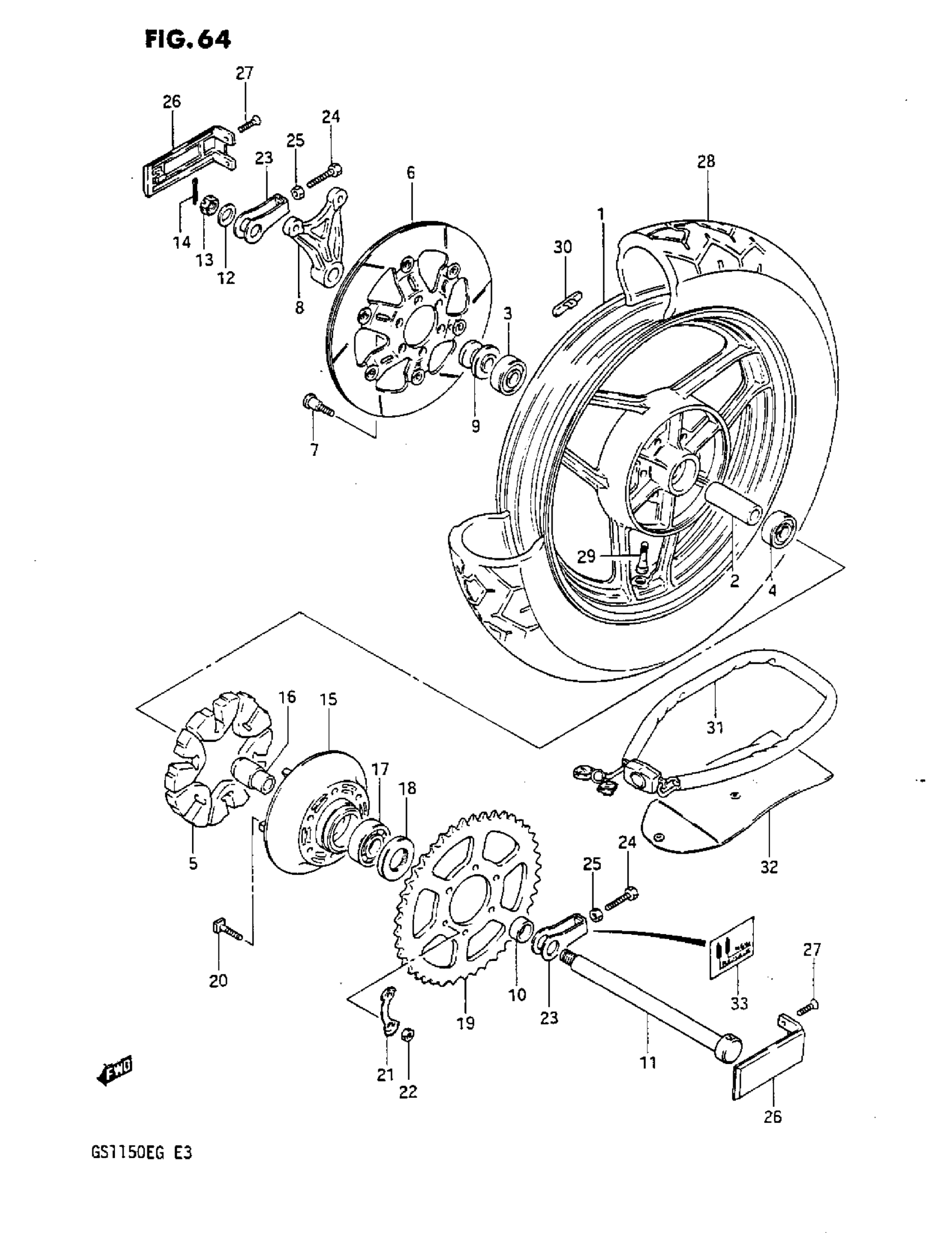

Suzuki GS1150 (1984) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (BLACK) MT3.00x17 | GS1150ES3/ESE

64111-00A00-291

Unavailable

1

WHEEL, REAR (BLACK) MT3.50x17 | MODEL F/F2/G

64111-00A20-291

Unavailable

2

SPACER, BEARING

09180-20093

Unavailable

3

BEARING, RH

08133-62047

$26.19

4

BEARING, LH This part replaces 08153-62047.

09262-20042

$21.31

5

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$10.24

6

DISC, REAR BRAKE

69210-00A01

Unavailable

7

BOLT (8X33) | GS1150ES3/ESE MODEL F/F2 This part replaces 09106-08041.

09106-08148

$4.33

7

BOLT (8X33) | MODEL G This part replaces 09106-08062.

09106-08148

$4.33

8

BRACKET, CALIPER

69721-47011

Unavailable

9

SPACER, AXLE, RH

64740-45002

Unavailable

10

SPACER, AXLE, LH

09180-20094

Unavailable

11

AXLE, REAR

64711-00A00

Unavailable

12

WASHER

09160-19020

Unavailable

13

NUT This part replaces 08314-41188.

08314-40187

$5.09

14

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.37

15

DRUM, SPROCKET This part replaces 64611-31002.

64611-31003

Unavailable

16

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

17

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$23.39

18

OIL SEAL

09285-33001

$12.15

19

SPROCKET,REAR,N This part replaces 64511-49001.

64511-49002

Unavailable

20

BOLT

09105-10001

$3.12

21

WASHER

09169-10007

Unavailable

22

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.53

23

CHAIN ADJUSTER

61410-00A00

Unavailable

24

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$2.80

25

NUT This part replaces 08310-12088.

08310-00087

$1.83

26

COVER, ADJUSTER

61441-00A00

Unavailable

27

SCREW This part replaces 02132-05167.

02122-05167

$0.81

28

TIRE, T/L (130/90V17) BS | GS1150ES3/ESE

65100-00A35

Unavailable

28

TIRE, T/L (130/90V17) BS | MODEL F/F2/G

65100-00A10

Unavailable

29

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$8.71

30

BALANCER (10G) | 0-3, U.N. This part replaces 55411-00A00-291.

55411-00A00

$1.35

30

BALANCER, WHEEL NO.2 | 0-3, U.N. This part replaces 55412-00A00-291.

55412-17G00

$5.14

30

BALANCER (30G) | 0-3, U.N. This part replaces 55413-00A00-291.

55413-00A01

Unavailable

31

NO DESCRIPTION AVAILABLE This part replaces 94140-15501-KEY.

94100-27821

Unavailable

32

BAG

94141-31301

Unavailable

33

LABEL

68377-49000

Unavailable
