1984 Suzuki GS1150 Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1984 Suzuki GS1150, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

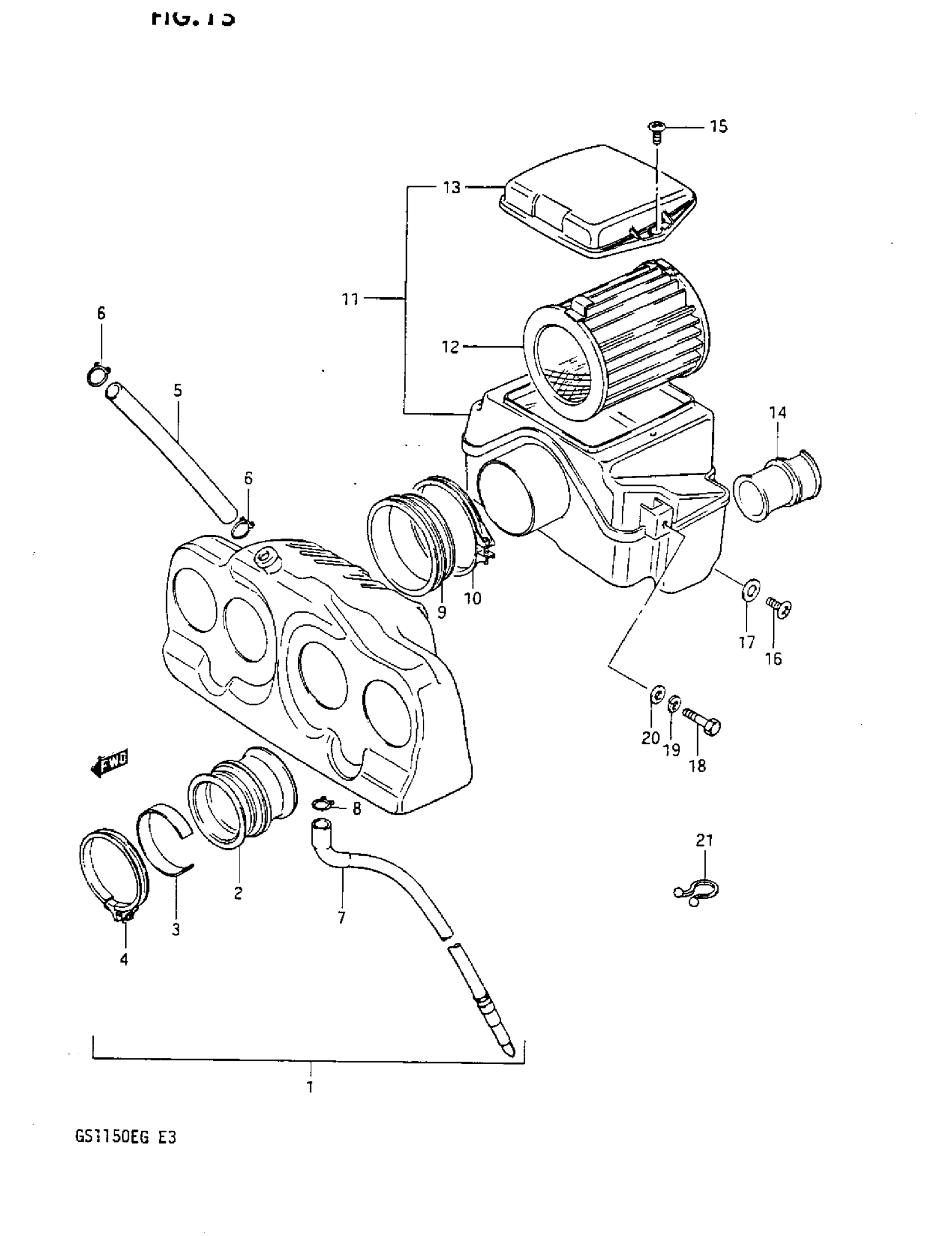

1984 Suzuki GS1150 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAMBER ASSY

13701-00A00

1
Out of stock

2

HOSE, OUTLET

13881-49021

4
Out of stock

3

RING

13885-47030

4
Out of stock

4

CLAMP This part replaces 09402-64207.

09402-64203

4
Out of stock

5

HOSE, BREATHER (L:240)

13854-00240

1
Out of stock

6

2

$3.10

In stock

7

1

$12.36

In stock

8

1

$2.31

In stock

9

TUBE, JOINT

13739-00A00

1
Out of stock

10

CLAMP

09402-80207

1

$8.20

In stock

11

CASE ASSY

13702-00A00

1
Out of stock

12

FILTER

13780-00A00

1
Out of stock

13

CAP

13740-00A00

1
Out of stock

14

TUBE, INLET

13891-00A00

2
Out of stock

15

2

$1.47

In stock

16

1

$1.52

In stock

17

1

$1.90

In stock

18

2

$2.10

In stock

19

2

$2.28

In stock

20

2

$1.84

In stock

21

CLAMP, AIR VENT

09408-00031

1
Out of stock
