1983 Suzuki GS1100S Wiring Harness Diagram

← All diagrams

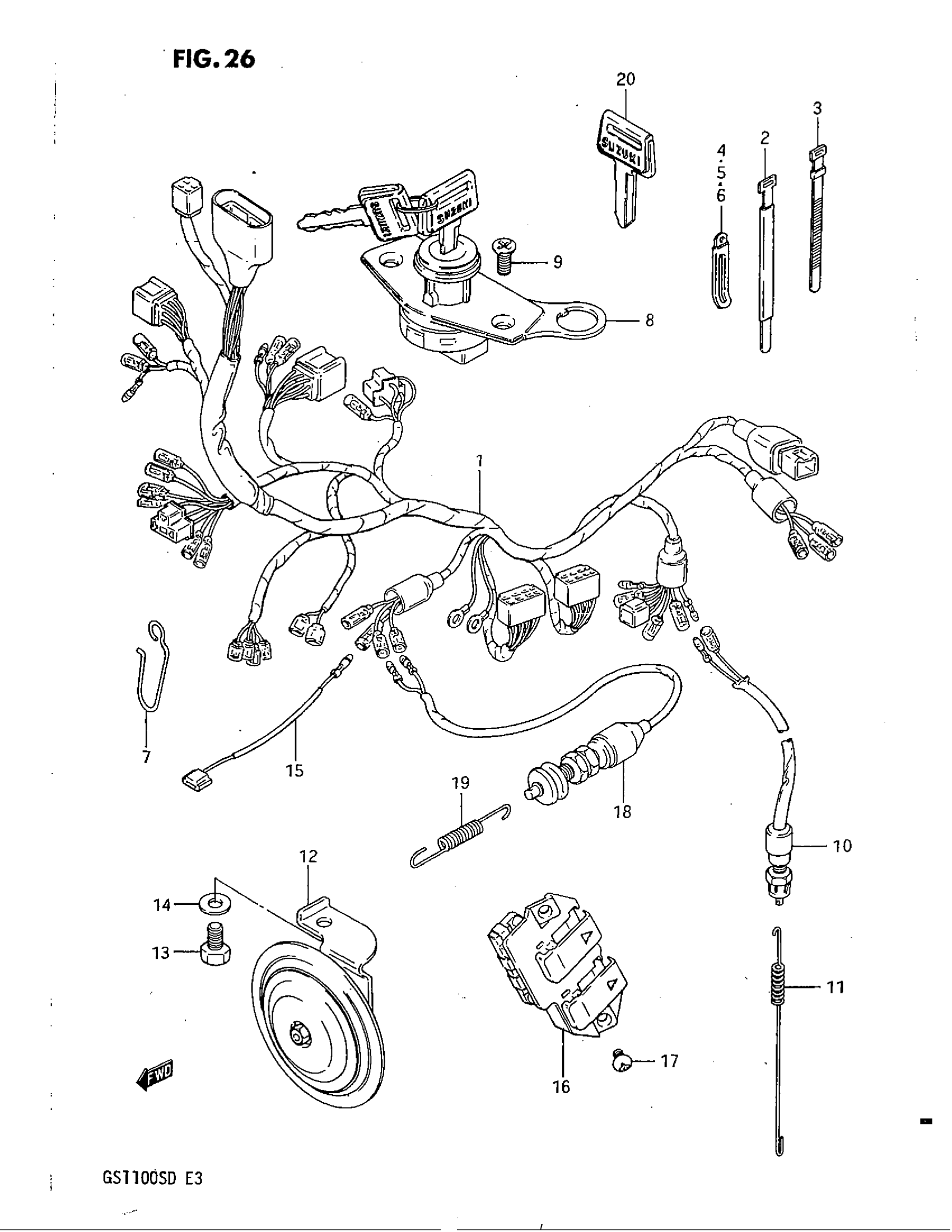

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS1100S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100S Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-49330

1
Out of stock

2

CLAMP This part replaces 09407-18301.

09407-18302

5
Out of stock

3

CLAMP (L:120)

09407-12402

4
Out of stock

4

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

2
Out of stock

4

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

5

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

2
Out of stock

6

CLAMP This part replaces 09404-06412.

09404-06039

1
Out of stock

7

GUIDE, HARNESS This part replaces 36618-49300.

36618-49302

1
Out of stock

8

SWITCH ASSY, IGNITION

37110-49310

1
Out of stock

9

SCREW This part replaces 02122-05108.

02122-05107

2
Out of stock

10

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

1
Out of stock

11

SPRING

09443-06027

1
Out of stock

12

HORN

38500-49320

1
Out of stock

13

BOLT This part replaces 01107-08128.

01500-08127

2
Out of stock

14

WASHER This part replaces 08322-11088.

08322-01087

2
Out of stock

15

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

1
Out of stock

16

SWITCH, SIDE COVER LEFT

37850-49300

1
Out of stock

17

NO DESCRIPTION AVAILABLE This part replaces 03241-04088.

03241-0408A

2
Out of stock

18

NO DESCRIPTION AVAILABLE This part replaces 37840-49300.

37840-49301

1
Out of stock

19

SPRING

09443-06046

1
Out of stock

20

KEY, BLANK | OPT

37146-49300

1
Out of stock
