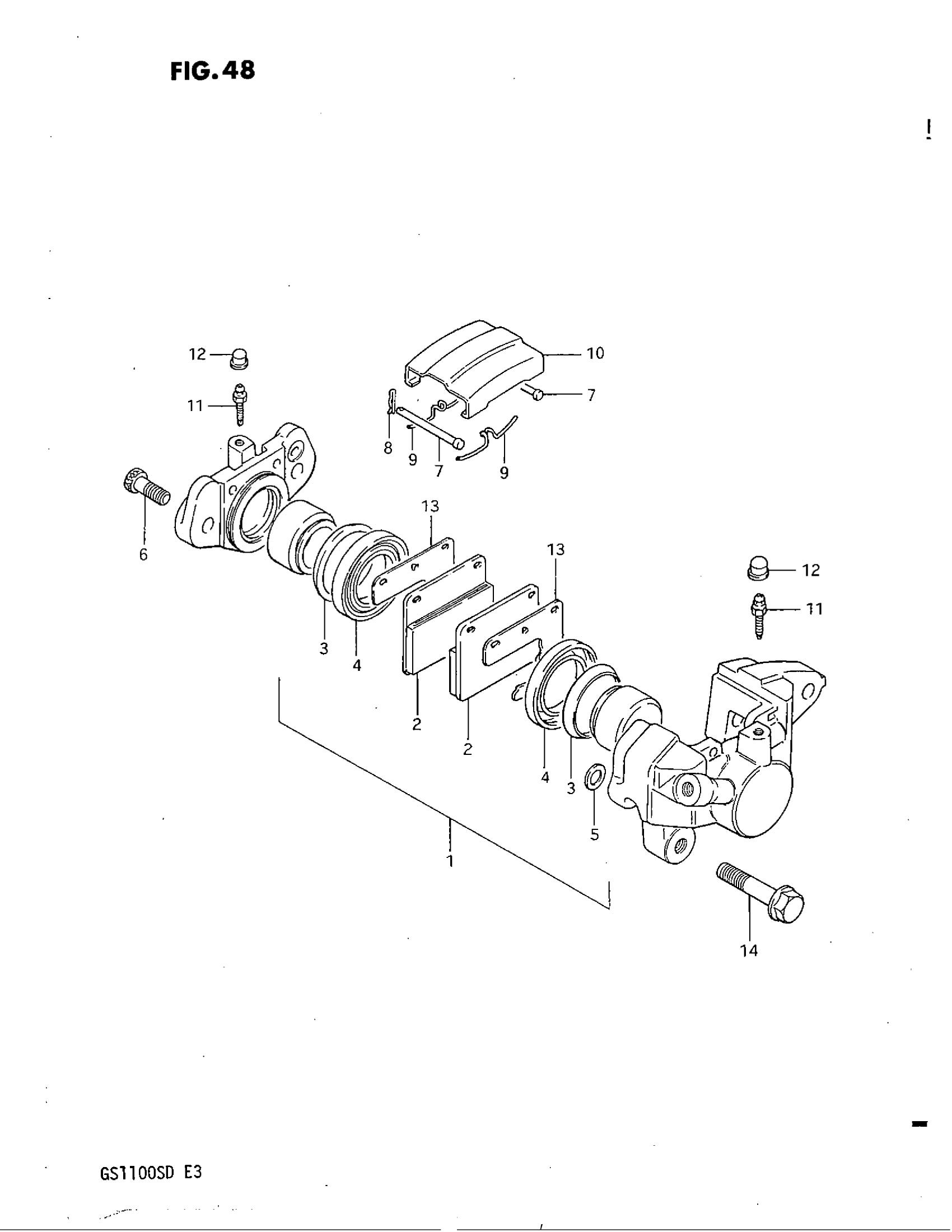

Suzuki GS1100S (1983) REAR CARIPERS Diagram

#

Description
Price

CALIPER ASSY, R | Includes Item(s) 1 - 13 This part replaces 69100-45021.

69100-08C00-999

Unavailable

1

PISTON SET This part replaces 69100-45860.

69100-08821

$90.57

2

PAD SET This part replaces 69130-45021.

69101-45850-XNA

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$8.30

4

BOOT, PISTON

69108-45000

$8.00

5

SEAL, PISTON

69107-45000

$7.60

6

BOLT, HOUSING

69145-45000

Unavailable

7

PIN

69141-45000

$4.86

8

.CLIP, PAD PIN

69142-45000

$3.97

9

SPRING

69143-45001

$6.34

10

DUST COVER

69151-45000

$13.48

11

BREATHER, NO.1

59121-18410

$7.99

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$4.73

13

SHIM

69152-45001

$10.00

14

BOLT, RH This part replaces 01527-10308.

01550-10307

$3.58
