1983 Suzuki GS1100S Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1983 Suzuki GS1100S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

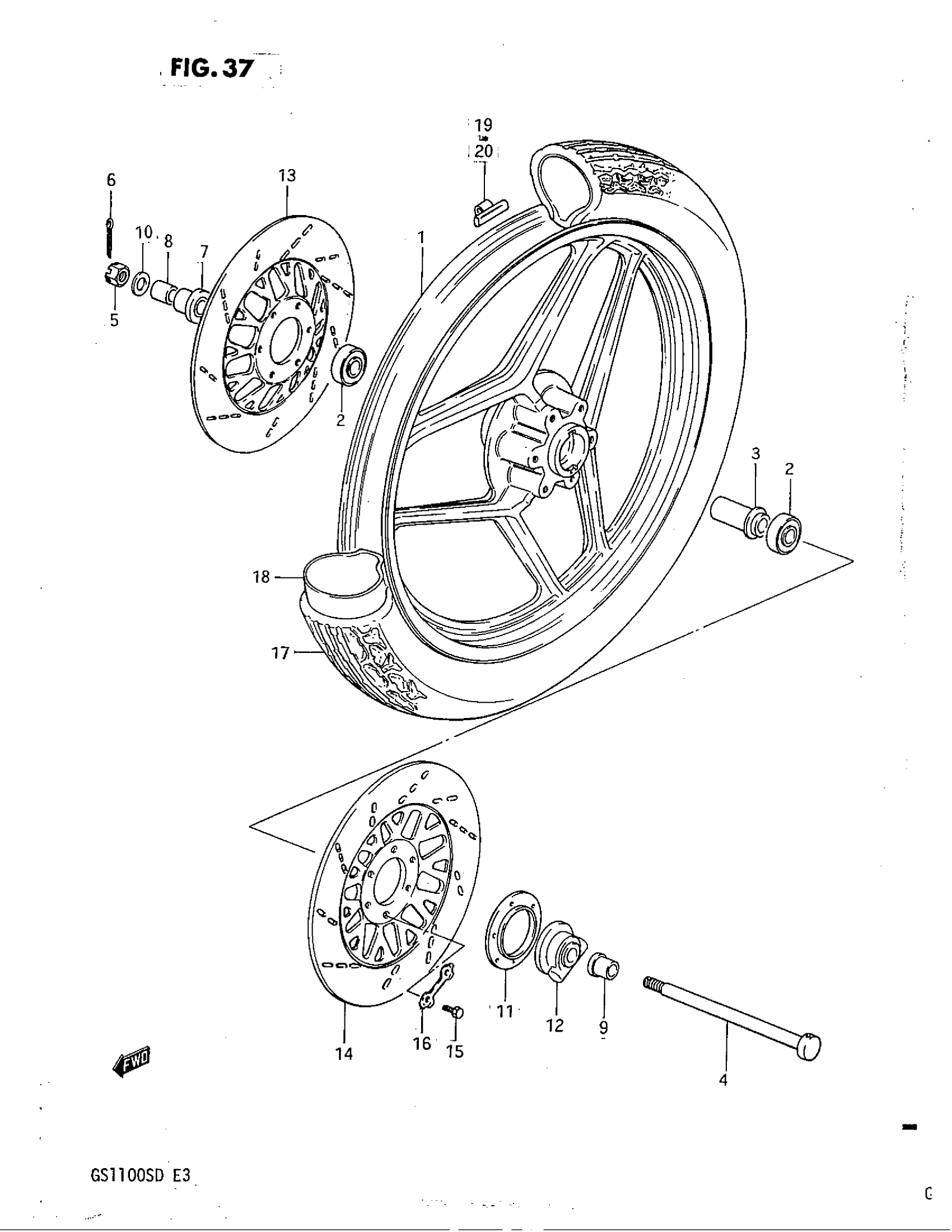

1983 Suzuki GS1100S Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, FRONT (19X1.85) | (BLACK)

54111-49500-291

1
Out of stock

2

BEARING This part replaces 08123-63027.

08123-6302B

2
Out of stock

3

SPACER

54730-18400

1
Out of stock

4

AXLE, FRONT

54711-49000

1
Out of stock

5

NUT This part replaces 08314-31128.

08314-3112A

1
Out of stock

6

PIN This part replaces 04111-30308.

04111-3030A

1
Out of stock

7

SPACER, BEARING RH

54740-18402

1
Out of stock

8

SPACER, AXLE RH

54741-49300

1
Out of stock

9

SPACER, AXLE LH

54741-49000

1
Out of stock

10

WASHER This part replaces 08322-21128.

08322-01127

1
Out of stock

11

DUST SEAL

54871-45010

1
Out of stock

12

BOX ASSY,SPEEDO This part replaces 54600-18401.

54600-18403

1
Out of stock

13

DISK, FRONT BRAKE RH

59211-45250

1
Out of stock

14

DISK, FRONT BRAKE LH

59221-45250

1
Out of stock

15

BOLT

09100-08140

12
Out of stock

16

WASHER

09169-08016

6
Out of stock

17

TIRE (3.50V19) | BS This part replaces 55100-49530.

55100-49330

1
Out of stock

18

TUBE This part replaces 55200-15030.

55200-44611

1
Out of stock

19

BALANCER, WHEEL NO.2 This part replaces 55411-49300.

55412-17G00

1
Out of stock

20

BALANCER (30G)

55412-49300

1
Out of stock
