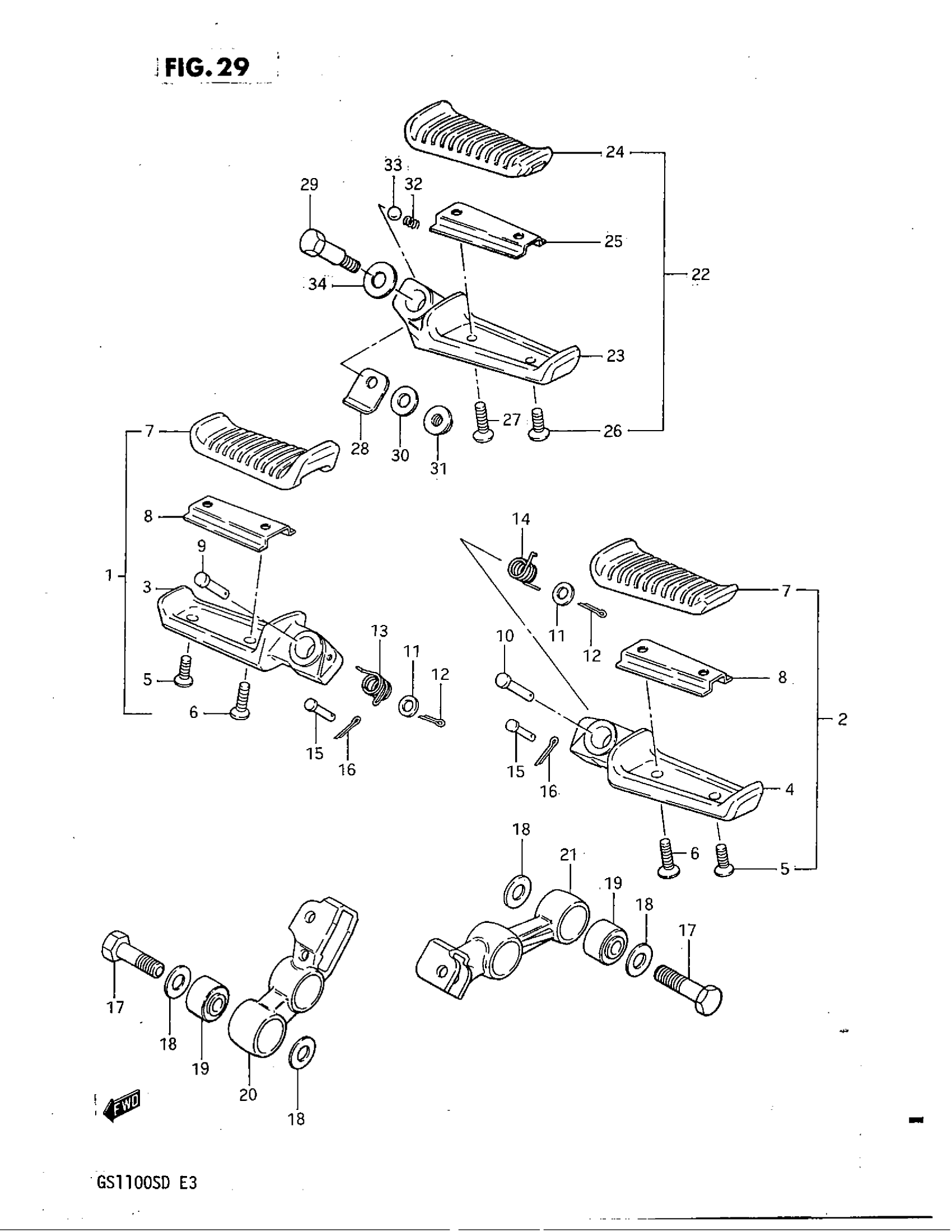

Suzuki GS1100S (1983) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY,F This part replaces 43501-33300.

43501-33301

Unavailable

2

FOOTREST ASSY,F | Includes Item(s) 3 - 8 This part replaces 43502-33300.

43502-33301

Unavailable

3

FOOTREST ASSY,F This part replaces 43510-33300.

43501-33301

Unavailable

4

FOOTREST ASSY,F This part replaces 43520-33300.

43502-33301

Unavailable

5

SCREW This part replaces 02112-05128.

02112-05127

$1.97

6

SCREW This part replaces 02112-05168.

02112-05167

$1.97

7

RUBBER,FR FOOTR This part replaces 43551-33300.

43551-33301

Unavailable

8

PLATE, FRONT FOOTREST RUBBER This part replaces 43580-33300.

43580-33301

Unavailable

9

PIN, RH

09200-08002

$1.97

10

PIN, LH

09200-08040

Unavailable

11

WASHER This part replaces 08322-11088.

08322-01087

$1.86

12

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

13

SPRING This part replaces 09448-10002.

09448-10002-XC0

Unavailable

14

SPRING This part replaces 09448-14028.

09448-14028-XC0

$4.15

15

PIN

09200-06040

Unavailable

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.22

17

BOLT (10X38) This part replaces 09104-10012.

09104-10029

$3.25

18

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.37

19

BUSH

09319-10008

$6.68

20

HOLDER, FOOTREST RH

43531-49310

Unavailable

21

HOLDER, FOOTREST LH

43541-49310

Unavailable

22

FOOTREST ASSY, PILLION RH

43600-45501

Unavailable

22

FOOTREST ASSY, PILLION LH | Includes Item(s) 23 - 27

43700-45501

Unavailable

23

BAR, PILLION FOOTREST RH

43610-45501

Unavailable

23

BAR, PILLION FOOTREST LH

43710-45501

Unavailable

24

RUBBER, PILLION FOOTREST

43612-45500

Unavailable

25

PLATE, RUBBER STOP This part replaces 43632-45500.

43632-45501

Unavailable

26

SCREW This part replaces 02132-05127.

02122-05127

$1.68

27

SCREW This part replaces 02132-05168.

02122-05167

$0.81

28

PLATE, SPRING STOP

43635-45510

Unavailable

29

BOLT

09111-06038

$5.17

30

WASHER This part replaces 08322-11088.

08322-01087

$1.86

31

NUT This part replaces 08319-31068.

08319-31067

$2.01

32

SPRING

09440-05003

$1.48

33

BALL

06111-07004

$1.22

34

SHIM

09181-08004

Unavailable
