1983 Suzuki GS1100GL Seat Diagram

← All diagrams

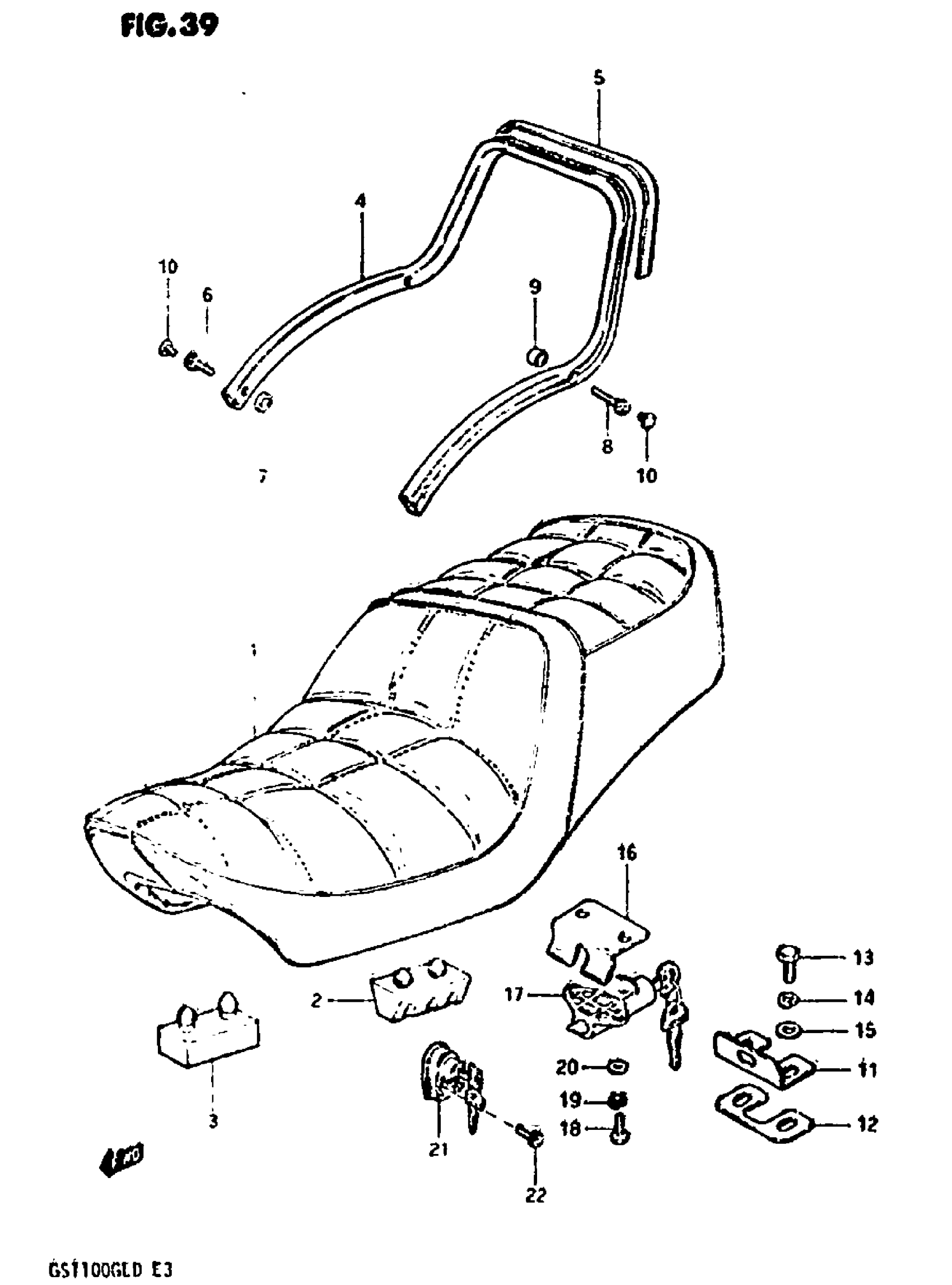

Find the part on the Seat diagram for your 1983 Suzuki GS1100GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100GL Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEAT (BLACK)

45100-45370-48G

1
Out of stock

2

CUSHION

45149-45330

2
Out of stock

3

CUSHION

09321-08006

2
Out of stock

4

HANDLE, DILLION RIDER | Includes Item(s) 5

46210-45370

1
Out of stock

5

RUBBER

46214-34410

1
Out of stock

6

BOLT This part replaces 09106-08010.

07130-0825B

2
Out of stock

7

SPACER

46219-45340

2
Out of stock

8

BOLT This part replaces 09106-08021.

07130-08407

2
Out of stock

9

SPACER

46218-45340

2
Out of stock

10

CAP1

09250-06004

4

$1.55

In stock

11

STRIKER, SEAT LOCK

45213-47200

1
Out of stock

12

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

2
Out of stock

13

2

$2.10

In stock

14

2

$2.28

In stock

15

WASHER This part replaces 08322-21068.

08322-01067

2
Out of stock

16

GUIDE, SEAT LOCK

45214-49105

1
Out of stock

17

LOCK ASSY, SEAT

95700-47820

1
Out of stock

18

BOLT This part replaces 01107-06208.

01500-06207

2
Out of stock

19

2

$2.28

In stock

20

.WASHER This part replaces 08322-11068.

08322-0106B

2
Out of stock

21

LOCK SET, HELMET

95700-34210

1
Out of stock

22

BOLT This part replaces 09106-05008.

07130-0525B

2
Out of stock
