1983 Suzuki GS1100G Tail Cover Diagram

← All diagrams

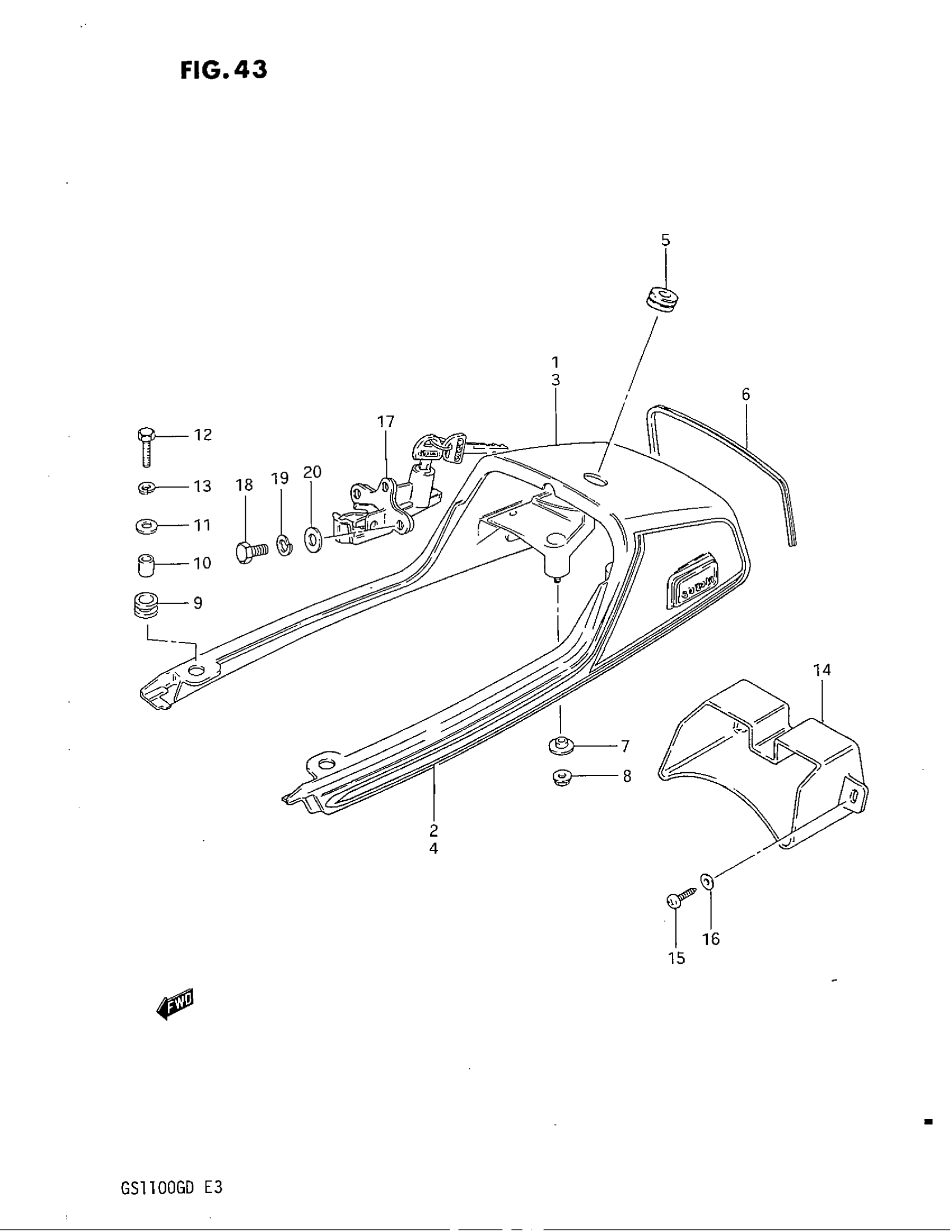

Find the part on the Tail Cover diagram for your 1983 Suzuki GS1100G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS1100G Tail Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, SEAT TAIL | Includes Item(s) 2

45500-49450-86G

1
Out of stock

2

TAPE SET, SEAT TAIL COVER

68160-49440-86D

1
Out of stock

3

COVER, SEAT TAIL | Includes Item(s) 4

45500-49450-78R

1
Out of stock

4

TAPE SET

68160-49440-78U

1
Out of stock

5

GROMMET

45522-49200

1
Out of stock

6

MOULDING, SEAT TAIL COVER

45562-49400

1
Out of stock

7

WASHER

09169-06016

2
Out of stock

8

.NUT This part replaces 08319-21068.

08319-2106A

2
Out of stock

9

CUSHION, FRONT

09320-10003

2
Out of stock

10

SPACER This part replaces 09180-07013.

09180-06290

2
Out of stock

11

WASHER, FRONT This part replaces 09160-06004.

09160-06134

2
Out of stock

12

BOLT This part replaces 01107-06258.

01500-06257

2
Out of stock

13

2

$2.28

In stock

14

BOX, SEAT TAIL

94991-49400

1
Out of stock

15

SCREW This part replaces 02142-06128.

02142-06127

2
Out of stock

16

2

$2.28

In stock

17

SEAT LOCK SET

95700-49830

1
Out of stock

18

BOLT This part replaces 01107-06128.

01500-06127

3
Out of stock

19

3

$2.28

In stock

20

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock
