1983 Suzuki GS1100E Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1983 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

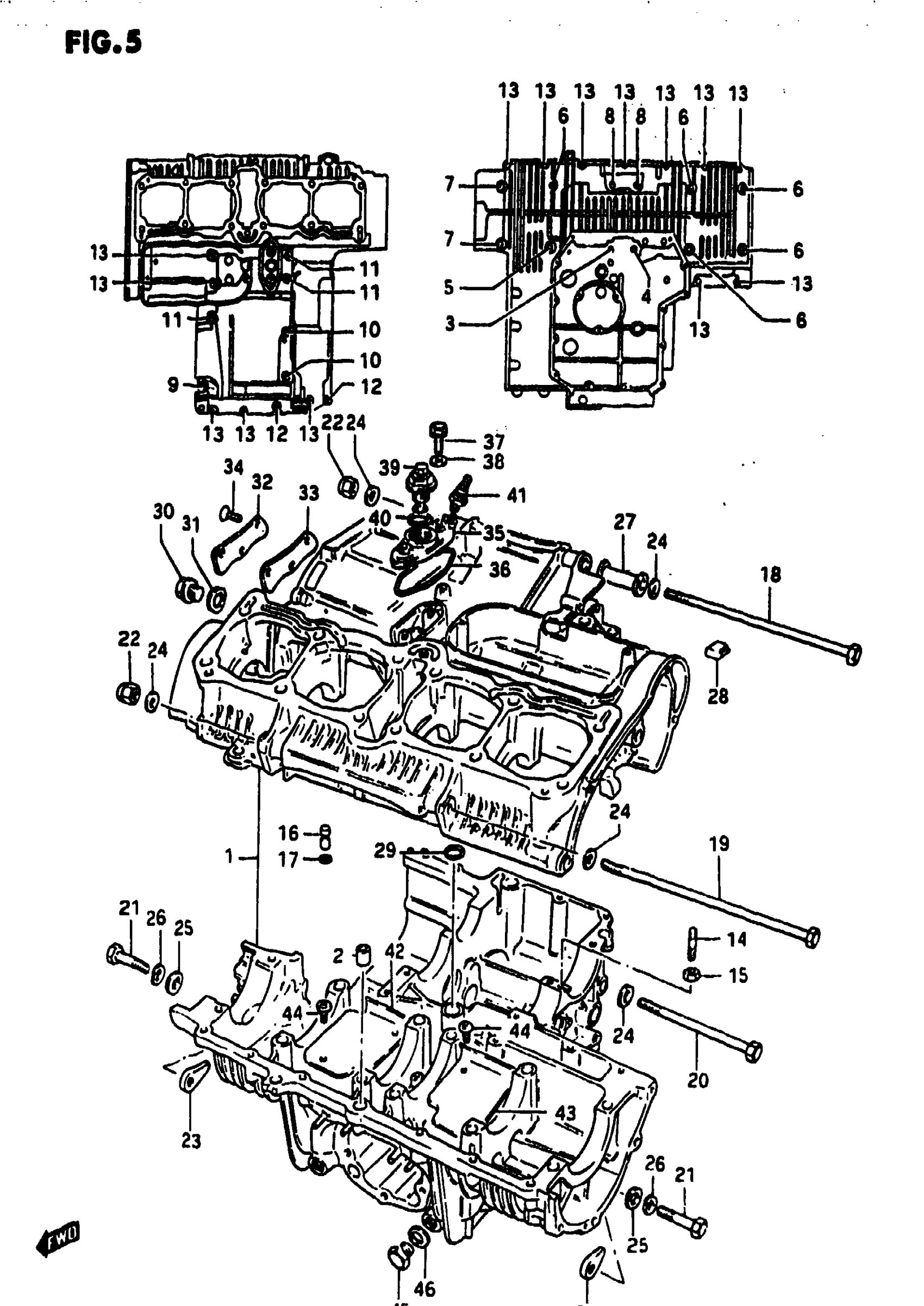

1983 Suzuki GS1100E Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 17 This part replaces 11300-49822.

11300-49826

1
Out of stock

2

PIN This part replaces 09206-13001.

04211-13189

2
Out of stock

3

BOLT (8x155)

09103-08059

1
Out of stock

4

BOLT (8X125) This part replaces 09103-08020.

09103-08106

1
Out of stock

5

BOLT (8X100) This part replaces 09103-08009.

09103-08070

1
Out of stock

6

5

$5.63

In stock

7

BOLT This part replaces 01517-08658.

01550-08657

2
Out of stock

8

BOLT This part replaces 01517-08608.

01550-08607

2
Out of stock

9

BOLT, LH This part replaces 01517-08508.

01550-08507

1
Out of stock

10

2

$4.70

In stock

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

3
Out of stock

12

BOLT This part replaces 01517-06558.

01550-06557

2
Out of stock

13

BOLT This part replaces 01517-06408.

01550-06407

14
Out of stock

14

1

$2.58

In stock

15

NUT This part replaces 08316-16068.

08319-31067

1
Out of stock

16

NOZZLE, OIL GALLERY

09364-05005

1
Out of stock

17

O RING

09280-03003

1
Out of stock

18

BOLT (10x230)

09100-10140

1
Out of stock

19

ENGINE MOUNT BO This part replaces 09101-10010.

09101-10010-XC0

1
Out of stock

20

BOLT (10x165)

09100-10078

1
Out of stock

21

BOLT This part replaces 01107-10608.

01500-1060A

2
Out of stock

22

NUT

09159-10011

3
Out of stock

23

NUT

09159-10020

2
Out of stock

24

WASHER This part replaces 08322-11108.

08322-01107

6
Out of stock

25

WASHER

09160-10005

2
Out of stock

26

LOCK WASHER This part replaces 08321-21108.

08321-01107

2
Out of stock

27

SPACER

11610-49300

1
Out of stock

28

RUBBER PAD, CRANKCASE

11252-25000

1
Out of stock

29

O RING, OIL GALLARY

09280-13001

1
Out of stock

30

1

$3.63

In stock

35

HOUSING SWITCH

16445-45000

1
Out of stock

36

O RING

16448-45000

1
Out of stock

31

GASKET

09168-14004

1
Out of stock

32

CAP, OIL GALLERY

09168-14004

1
Out of stock

37

BOLT This part replaces 01517-06258.

01550-06257

2
Out of stock

38

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

2
Out of stock

33

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

1
Out of stock

39

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

1
Out of stock

34

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

40

O RING

09280-19001

1
Out of stock

41

CAUGE, OIL TEMPERATURE

34870-49000

1
Out of stock

42

PLATE, OIL SEPARATER RH This part replaces 11521-49200.

11521-49201

1
Out of stock

43

PLATE, OIL SEPARATER LH This part replaces 11522-49200.

11522-49201

1
Out of stock

44

SCREW This part replaces 02112-06088.

02112-06087

4
Out of stock

45

PLUG, ENGINE OIL

09247-14013

2
Out of stock

46

WASHER

09168-14004

2
Out of stock
