1981 Suzuki GS1100E Rear Combination Lamp Diagram

← All diagrams

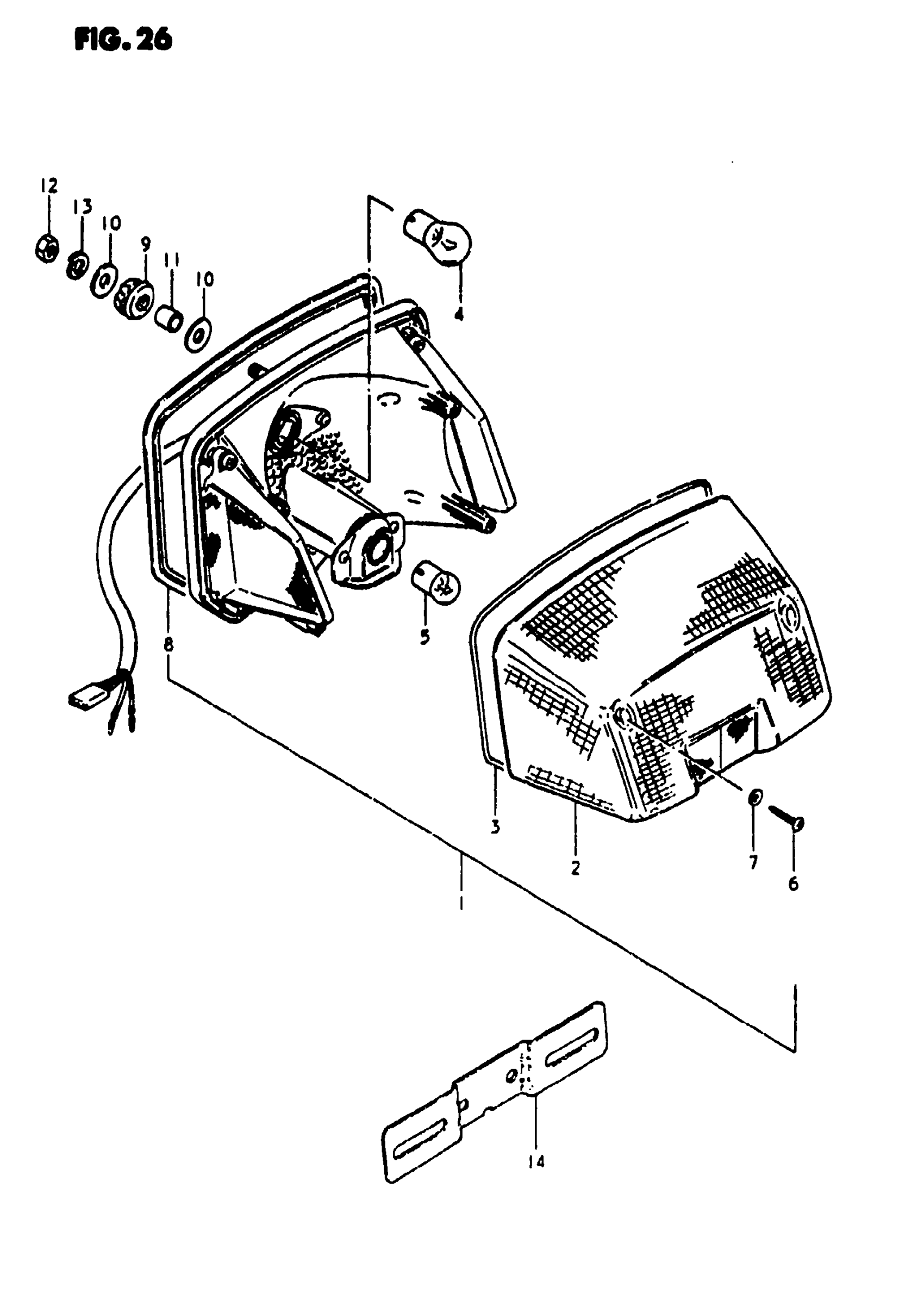

Find the part on the Rear Combination Lamp diagram for your 1981 Suzuki GS1100E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS1100E Rear Combination Lamp Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LAMP ASSY, TAIL | Includes Item(s) 2 - 8

35710-49230

1
Out of stock

2

LENS

35712-49230

1
Out of stock

3

GASKET

35713-49230

1
Out of stock

4

BULB (12V,32/3CP)

09471-12035

1
Out of stock

5

BULB (12V, BW) This part replaces 09471-12037.

09471-12141

1
Out of stock

6

SCREW This part replaces 03211-04208.

03211-04207

4
Out of stock

7

GASKET

35627-43010

4

$2.65

In stock

8

GASKET

35733-49230

1
Out of stock

9

CUSHION

09320-09010

3

$2.92

In stock

10

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

6
Out of stock

11

SPACER,7.2X10X1 This part replaces 09180-06006.

09180-07019

3
Out of stock

12

.NUT This part replaces 08310-11068.

08310-00067

3
Out of stock

13

3

$2.28

In stock

14

PLATE, LICENSE

35927-49230

1
Out of stock
