1980 Suzuki GS1100-LT Front Calipers Diagram

← All diagrams

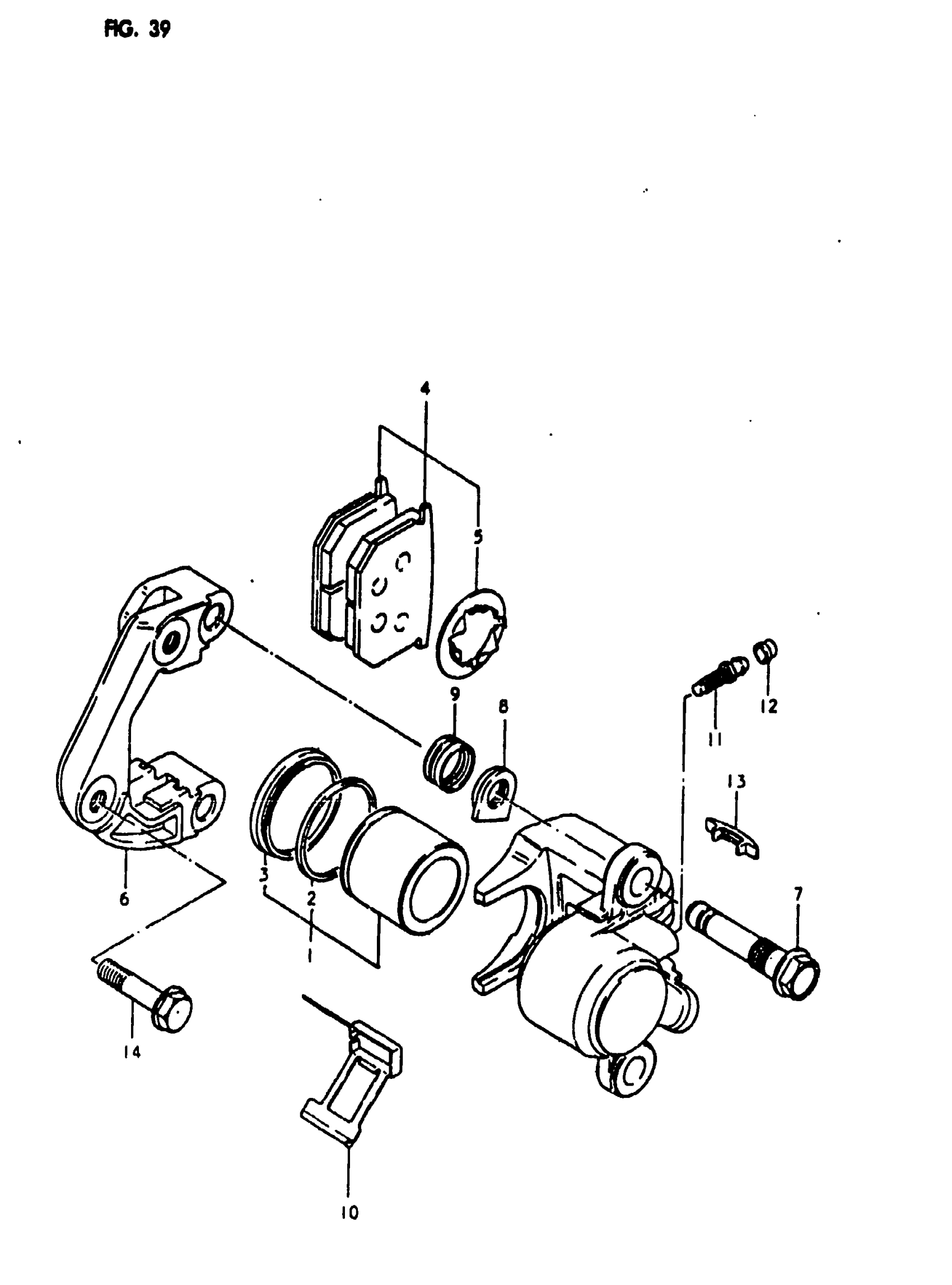

Find the part on the Front Calipers diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1100-LT Front Calipers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

NO DESCRIPTION AVAILABLE This part replaces 59100-49100.

59100-49103

1
Out of stock

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 13 This part replaces 59300-49100.

59300-49103

1
Out of stock

1

PISTON SET This part replaces 59300-49810.

59300-49811

2
Out of stock

2

PISTON SEAL This part replaces 59107-34020.

59107-34021

2
Out of stock

3

BOOT, PISTON

59308-49000

2
Out of stock

4

PAD SET This part replaces 59300-49820.

59300-49850

2
Out of stock

5

SHIM PAD

59371-49000

2
Out of stock

6

NO DESCRIPTION AVAILABLE This part replaces 59151-49100.

59150-49101

1
Out of stock

6

HOLDER SET, CALIPERS This part replaces 59351-49100.

59350-49101

1
Out of stock

7

AXLE, CALIPERS This part replaces 59305-49000.

59305-49001

4
Out of stock

8

NUT

59317-49000

4
Out of stock

9

BOOT

59312-49000

4
Out of stock

10

SPRING

59315-49000

2
Out of stock

11

BREATHER This part replaces 59121-47050.

59121-34020

2
Out of stock

12

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

2
Out of stock

13

COVER

59324-49000

2
Out of stock

14

BOLT (10X40) This part replaces 01517-10408.

01550-10407

4
Out of stock
