1980 Suzuki GS1100-LT Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1980 Suzuki GS1100-LT, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

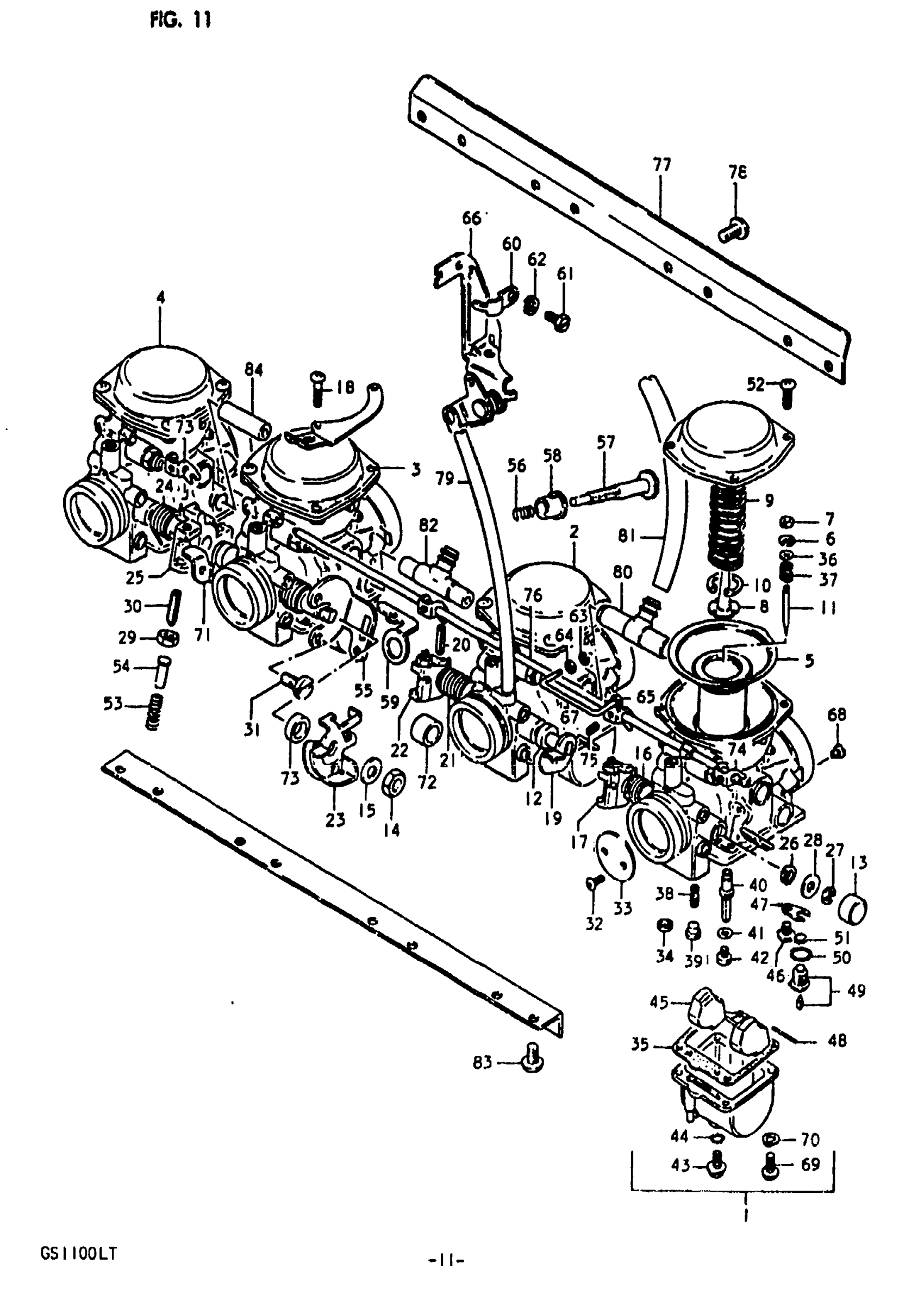

1980 Suzuki GS1100-LT Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CARBURETOR ASSY | Includes Item(s) 1 - 87

13200-49200

1
Out of stock

1

CARBURETOR, NO.1 | LH

13201-49200

1
Out of stock

2

CARBURETOR, NO.2 | ML

13202-49200

1
Out of stock

3

CARBURETOR, NO.3 | MR

13203-49200

1
Out of stock

4

CARBURETOR, NO.4 | RH

13204-49200

1
Out of stock

5

DIAPHRAGM ASSY This part replaces 13500-44080.

13500-38310

4
Out of stock

6

E RING

13394-31210

4
Out of stock

7

RING

13387-44030

4
Out of stock

8

GUIDE HOLDER

13389-44030

4
Out of stock

9

SPRING

13503-49200

4
Out of stock

10

CLIP

13581-44030

4
Out of stock

11

NEEDLE, JET (5058)

13383-49200

4
Out of stock

12

GASKET | ML, MR

13557-49200

2
Out of stock

13

CAP | RH, LH

13578-47070

2
Out of stock

14

1

$1.93

In stock

15

WASHER | MR

13606-47070

1
Out of stock

16

SPRING | LH

13573-47070

1
Out of stock

17

SHAFT | LH

13550-49200

1
Out of stock

18

SCREW | ML:1, MR:2 This part replaces 02111-05158.

02112-05167

3
Out of stock

19

SHAFT | ML

13550-49210

1
Out of stock

20

PIN | LH, ML, RH

13563-47070

3
Out of stock

21

SPRING | ML

13573-45110

1
Out of stock

22

LEVER | ML

13553-47070

1
Out of stock

23

LEVER | MR

13555-47070

1
Out of stock

24

SPRING | MR, RH

13573-47080

2
Out of stock

25

SHAFT | RH

13550-49220

1
Out of stock

26

SEAL This part replaces 13651-51010.

13651-51011

8
Out of stock

27

E RING | LH, RH

13617-44080

2
Out of stock

28

GASKET | LH, RH

13557-47070

2
Out of stock

29

NUT | LH, ML, RH

13607-47070

3
Out of stock

30

SCREW | LH, ML, RH

13605-47080

3
Out of stock

31

SCREW | MR

13605-45110

2
Out of stock

32

SCREW

13604-44080

8
Out of stock

33

VALVE, THROTTIE (#135)

13551-49200

4
Out of stock

34

GASKET

13258-44080

4
Out of stock

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

4
Out of stock

36

WASHER

13382-44030

4

$3.81

In stock

37

SPRING

13388-44030

4

$9.17

In stock

38

JET, PILOT (#45)

09492-45015

4
Out of stock

39

PLUG

13357-44080

4
Out of stock

40

JET, NEEDLE (X-1)

09494-00267

4
Out of stock

41

4

$2.92

In stock

42

JET, MAIN (#107.5)

09491-21014

4
Out of stock

43

SCREW

13247-44080

4

$8.18

In stock

44

O RING

13246-44080

4

$2.92

In stock

45

FLOAT

13250-44080

4
Out of stock

46

4

$1.67

In stock

47

PLATE

13373-39110

4
Out of stock

48

PIN

13254-92311

4

$2.41

In stock

50

4

$5.97

In stock

51

4

$10.26

In stock

52

SCREW | LH, RH:4, ML:3, MR:2 This part replaces 02112-05128.

02112-05127

13
Out of stock

53

SPRING | LH, ML, RH

13268-44010

3
Out of stock

54

PIN | LH, ML, RH

13575-47070

3
Out of stock

55

BRACKET | MR

13627-45110

1
Out of stock

56

SPRING | MR

13271-93011

1
Out of stock

57

ADJUSTER | MR

13267-47070

1
Out of stock

58

BUSH | MR

13276-31210

1
Out of stock

59

BRACKET | MR

13627-44090

1
Out of stock

60

PLATE | ML

13421-47070

1
Out of stock

61

BOLT | ML This part replaces 01104-05108.

01500-0510B

1
Out of stock

62

LOCK WASHER | ML This part replaces 08321-21058.

08321-0105A

1
Out of stock

63

2

$4.76

In stock

64

WASHER | ML

13523-98010

2
Out of stock

65

LEVER | ML

13422-47070

1
Out of stock

66

BRACKET ASSY | ML This part replaces 13624-49200.

13624-45500

1
Out of stock

67

ROD | ML

13425-45110

1
Out of stock

68

JET, PILOT AIR (160)

09493-32002

4
Out of stock

69

SCREW This part replaces 02112-05168.

02112-05167

16
Out of stock

70

LOCK WASHER This part replaces 08321-21058.

08321-0105A

16
Out of stock

71

SHAFT | MR

13550-49230

1
Out of stock

72

RING | ML

13574-49200

1
Out of stock

73

RING | MR

13574-45120

1
Out of stock

74

LEVER

13422-44080

3
Out of stock

75

SCREW

13605-47070

4
Out of stock

76

SHAFT

13410-49200

1
Out of stock

77

PLATE

13628-49200

1
Out of stock

78

SCREW This part replaces 13605-47090.

02142-05127

8
Out of stock

79

HOSE(4.5X8.5X60 This part replaces 13683-45110.

09355-45001-600

1
Out of stock

80

NIPPLE

13685-47070

2
Out of stock

81

HOSE(6X10X600) This part replaces 13683-47070.

09352-60104-600

2
Out of stock

82

NIPPLE

13685-49200

1
Out of stock

83

SCREW This part replaces 02112-06128.

02112-06127

6
Out of stock

84

NIPPLE

13685-49210

2
Out of stock

85

CLIP

13619-49200

2
Out of stock

86

WASHER

13615-49200

2
Out of stock

87

SCREW This part replaces 02112-06168.

02112-06167

2
Out of stock
