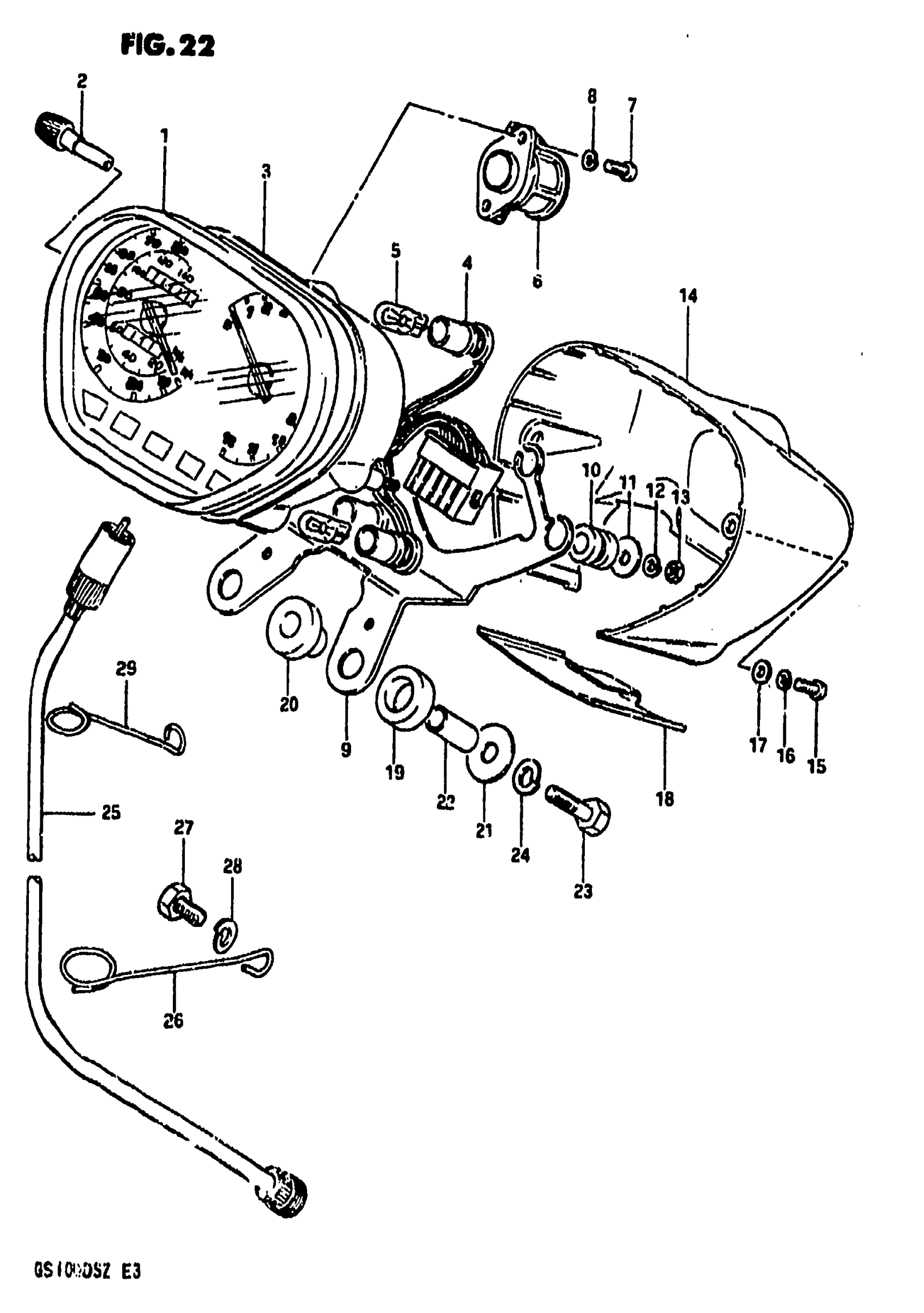

Suzuki GS1000S (1982) SPEEDOMETER-TACHOMETER Diagram

#

Description
Price

1

SPEEDO & TACHOMETER | MILE & KILO SCALE

34101-49310

Unavailable

2

KNOB

34124-39111

$10.80

3

CUSHION

34196-49300

$20.33

4

SOCKET

34173-49300

Unavailable

5

BULB (12V,3.4W)

09471-12028

$1.98

6

GEAR BOX ASSY

34131-49300

Unavailable

7

SCREW This part replaces 02112-04108.

02112-04107

$1.55

8

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

9

BRACKET, METER This part replaces 34950-49300.

34950-49380

Unavailable

10

CUSHION

34955-28010

$5.10

11

WASHER (4.5X16X1.2) This part replaces 34181-49300.

09160-04026

$1.86

12

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

13

NUT This part replaces 08310-11048.

08310-00047

$2.43

14

LOWER COVER

34193-49300

$104.27

15

SCREW This part replaces 02112-04128.

02112-0412A

$1.24

16

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

17

WASHER This part replaces 08322-21048.

08322-01047

$1.88

18

PLATE

34197-49300

Unavailable

19

CUSHION, LOWER

34955-11300

$5.10

20

CUSHION, UPPER

34956-11300

$5.10

21

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.89

22

SPACER (6.1X8X15.5) This part replaces 09180-06040.

09180-06251

$2.28

23

BOLT, REAR This part replaces 01107-06308.

01500-06307

$3.17

24

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

25

CABLE ASSY,SPEE This part replaces 34910-49310.

34910-49312

$44.92

26

GUIDE, METER CABLE

34938-45100

$7.42

27

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

28

WASHER This part replaces 08322-21068.

08322-01067

$1.86

29

GUIDE, METER CABLE

34939-49300

Unavailable
