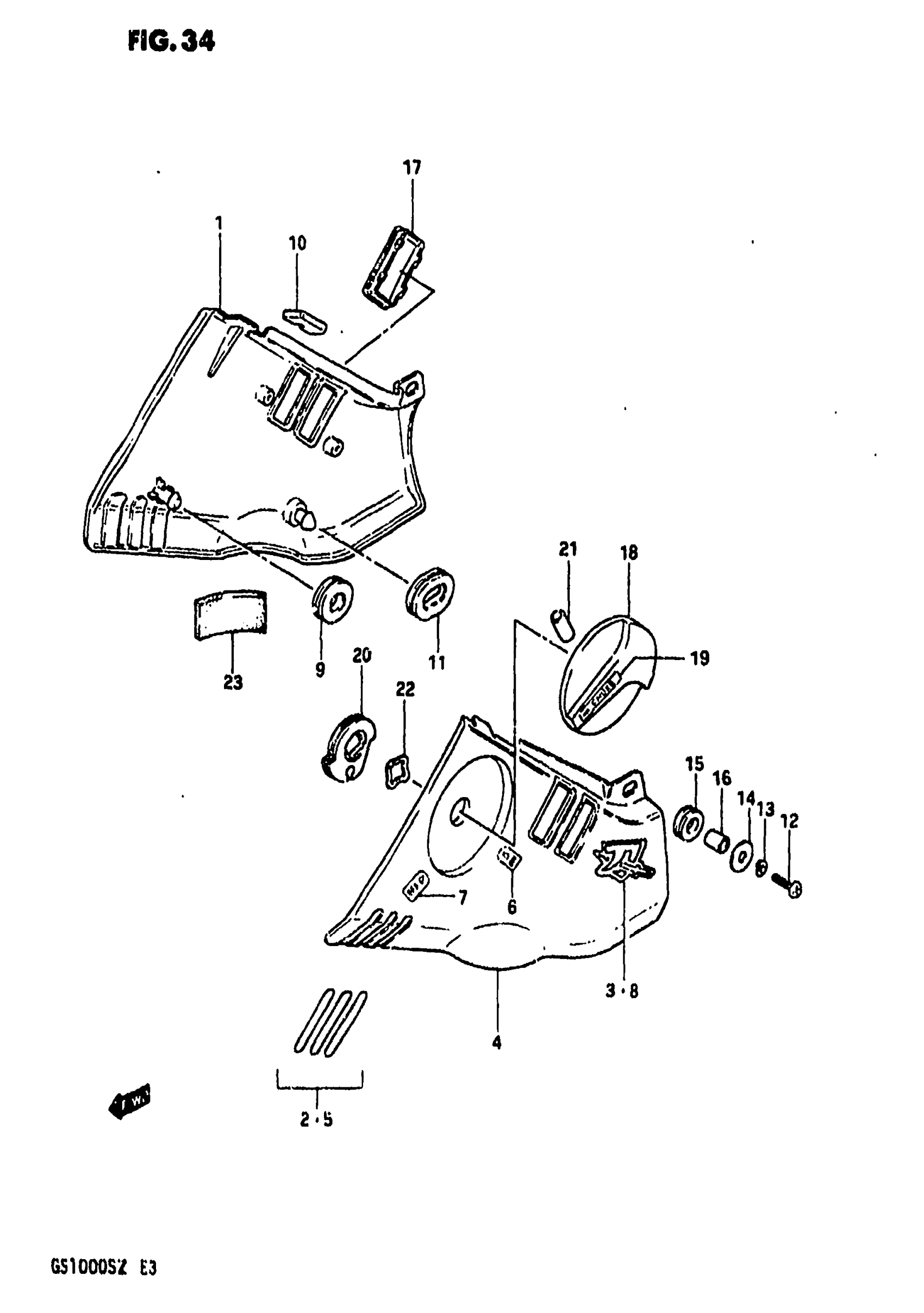

Suzuki GS1000S (1982) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (SILVER) | Includes Item(s) 2

47101-49820-13L

Unavailable

2

LABEL,FRAME COV This part replaces 68134-49300.

68134-49300-291

$4.87

3

EMBLEM,FRAME CO This part replaces 68131-34310-67T.

68131-34321-L96

$8.52

4

COVER, FRAME LH (SILVER) | Includes Item(s) 5 - 7

47201-49820-13L

Unavailable

5

LABEL,FRAME COV This part replaces 68144-49300.

68144-49300-291

$4.87

6

LABEL, CHOCK "ON"

68224-49300

$1.83

7

LABEL, CHOCK "OFF"

68225-49300

$1.85

8

EMBLEM,FRAME CO This part replaces 68131-34310-67T.

68131-34321-L96

$8.52

9

CUSHION, FRONT NO.1

09320-08018

$2.80

10

CUSHION, FRONT NO.2

09329-02002

$1.90

11

CUSHION, REAR

09329-08003

Unavailable

12

SCREW

02142-06167

$1.37

13

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

14

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

15

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

16

SPACER

09180-06038

$1.86

17

CAP, SWITCH HOOL

47129-49300

$4.20

18

LEVER,CHOKE CAB This part replaces 58481-49301-13L.

58481-49302-13L

$58.18

19

LABEL, CHOCK

68223-49300

$2.22

20

HOLDER, STARTER This part replaces 58482-49300.

58482-49301

$5.79

21

TUBE, STARTER LEVER

58483-49300

$1.87

22

WASHER, WAVE

09164-16003

$2.67

23

RUBBER

78821-67000

$3.80
