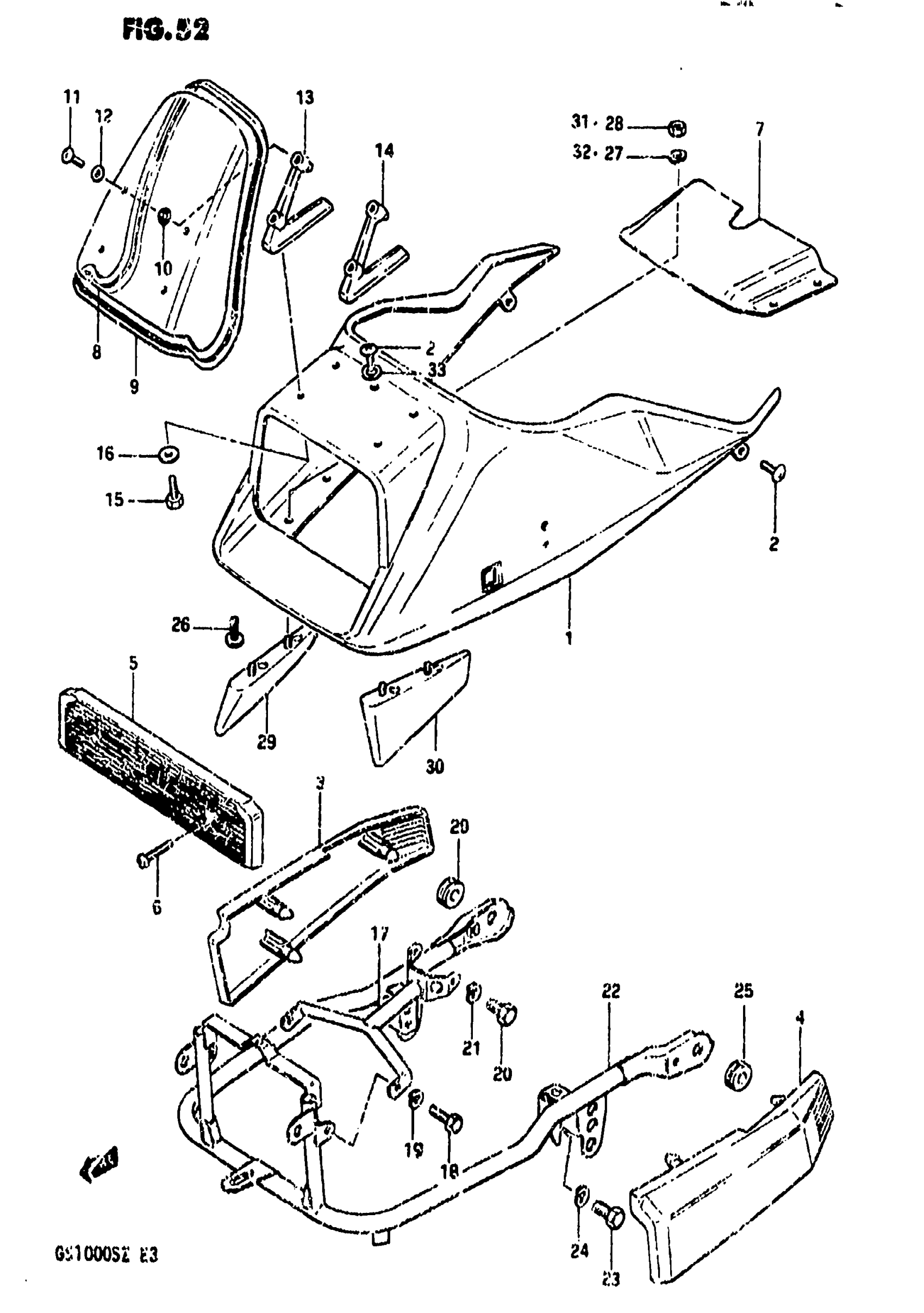

Suzuki GS1000S (1982) COWLING Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 94411-49311-80A.

94411-49331-80A

Unavailable

2

SCREW This part replaces 02142-06125.

02142-0612A

$1.41

3

COVER,COWLING R This part replaces 94431-49300-13L.

94431-49301-13L

$70.30

4

COVER,COWLING,L This part replaces 94441-49300-13L.

94441-49303-13L

$83.83

5

COVER, LOWER

94445-49300

Unavailable

6

SCREW This part replaces 02142-06308.

02142-06307

$1.58

7

COVER, LOWER FRONT

94412-49300

Unavailable

8

WINDOW

94611-49312

Unavailable

9

MOUL

94631-49300

$18.56

10

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

$2.62

11

SCREW This part replaces 02142-05105.

02142-0510B

$1.82

12

WASHER (5.2X11.0X1.0)

09161-05010

$2.67

13

BRACE, WINDOW RH

94621-45500

Unavailable

14

BRACE, WINDOW LH

94625-45500

Unavailable

15

BOLT This part replaces 01107-06128.

01500-06127

$2.01

16

WASHER

09160-06019

$1.43

17

BRACE, FRONT

94510-49302

Unavailable

18

BOLT This part replaces 01107-06163.

01500-0616A

$1.82

19

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

20

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.57

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

22

BRACE, REAR

94530-49301

Unavailable

23

BOLT This part replaces 01107-08128.

01500-08127

$2.74

24

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.89

25

CUSHION

09320-08018

$2.82

26

SCREW This part replaces 02142-06128.

02142-06127

$1.43

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.89

28

.NUT This part replaces 08310-11068.

08310-00067

$1.91

29

WING, RH | OPT

94450-49300

$52.62

30

WING, LH | OPT

94460-49300

$49.83

31

.NUT | OPT This part replaces 08310-11068.

08310-00067

$1.91

32

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$1.89

33

WASHER This part replaces 09161-07003.

09161-06007

Unavailable
