1980 Suzuki GS1000S Cowling Diagram

← All diagrams

Find the part on the Cowling diagram for your 1980 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

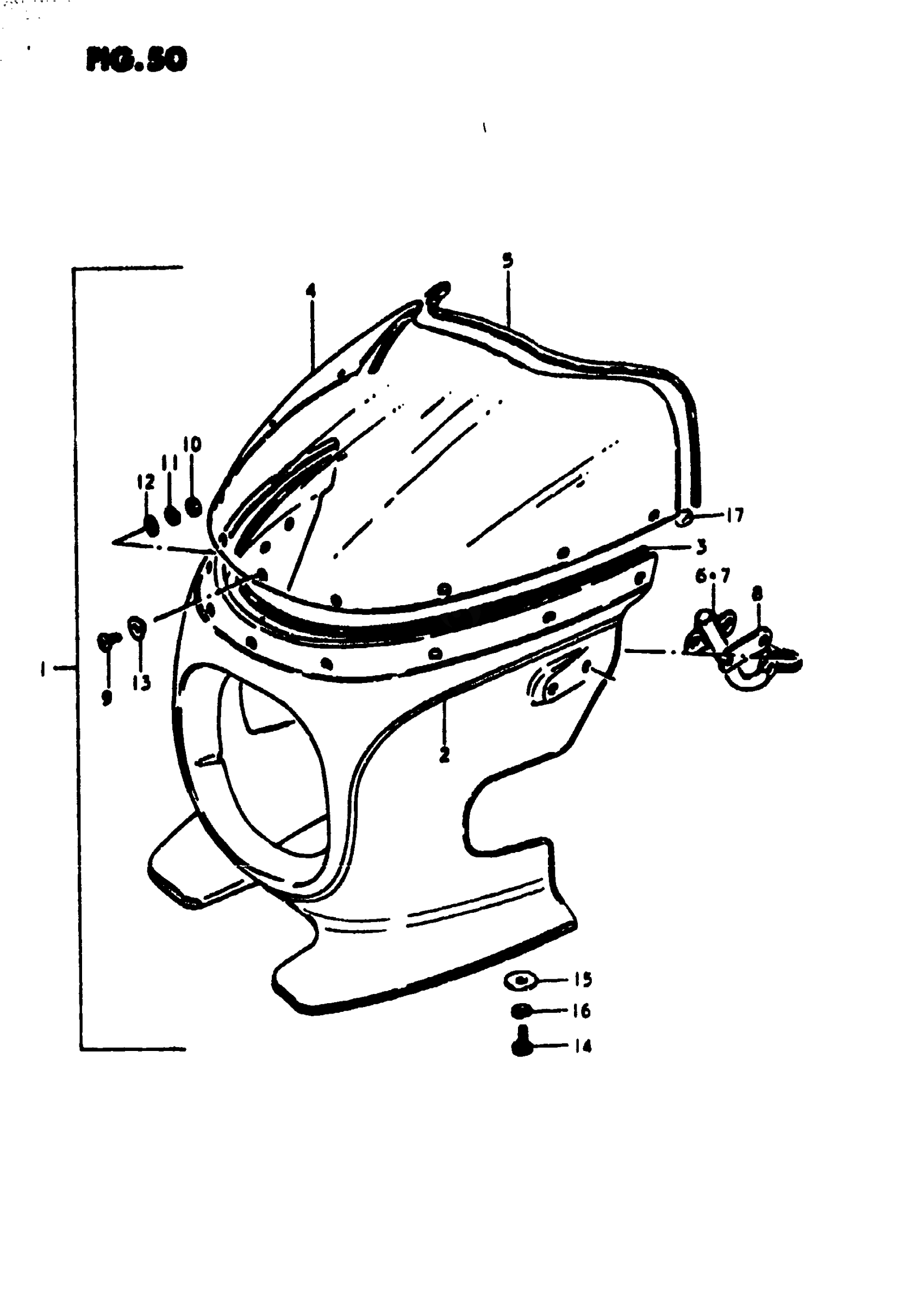

1980 Suzuki GS1000S Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWLING, ASSY | BLUE+WHITE; Includes Item(s) 2 - 14

94400-49000-68U

1
Out of stock

2

TAPE SET

68102-49810-62R

1
Out of stock

3

MOULDING

94591-49000

1
Out of stock

4

WINDOW, COWLING

94611-49001

1
Out of stock

5

MOULDING

94631-49000

1
Out of stock

6

BRACKET, RH

94510-49001

1
Out of stock

7

BRACKET, LH

94520-49001

1
Out of stock

8

CUSHION

94573-49000

2
Out of stock

9

.SCREW This part replaces 02142-05125.

02142-0512A

9
Out of stock

10

NUT This part replaces 08310-11058.

08310-00057

9
Out of stock

11

LOCK WASHER This part replaces 08321-21058.

08321-0105A

9
Out of stock

12

WASHER This part replaces 08322-21058.

08322-01057

9
Out of stock

13

CUSHION(5.5X11X This part replaces 09320-05008.

09320-05021

9
Out of stock

14

4

$2.10

In stock

15

WASHER This part replaces 08322-21068.

08322-01067

4
Out of stock

16

4

$2.28

In stock

17

COVER This part replaces 94651-49000.

94651-48B00

2
Out of stock
