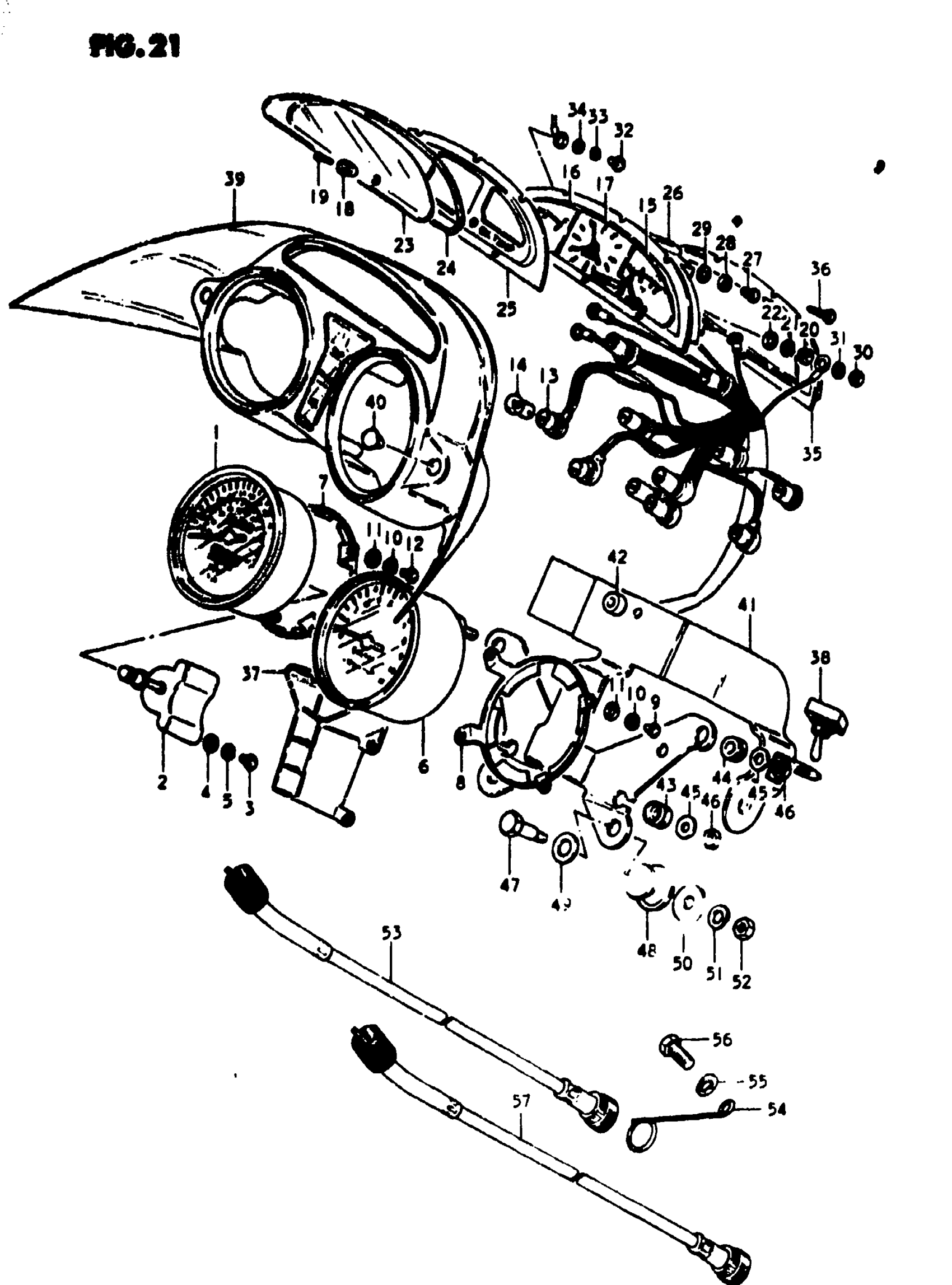

Suzuki GS1000S (1980) COMBINATION METER Diagram

#

Description
Price

1

SPEEDOMETER | Includes Item(s) 2 - 5

34101-49082

Unavailable

2

HOLDER, RESOT BUTTON

34720-49020

Unavailable

3

SCREW This part replaces 02112-04128.

02112-0412A

$1.24

4

WASHER This part replaces 08322-21048.

08322-01047

$1.88

5

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

6

TACHOMETER

34210-49080

Unavailable

7

HOLDER, SPEEDOMETER

34195-49020

Unavailable

8

HOLDER, TACHOMETER

34295-49020

Unavailable

9

SCREW This part replaces 02112-03088.

02112-0308A

$1.81

10

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

11

WASHER This part replaces 08322-21038.

08322-01037

$1.95

12

SCRLW

34183-49020

Unavailable

13

SOCKET ASSY

34173-49020

Unavailable

14

BULB (12V,3.4W)

09471-12001

$1.67

15

TEMPERATURE METER, OIL

34730-49080

Unavailable

16

FUEL METER

34320-49020

Unavailable

17

CLOCK | Includes Item(s) 18 - 19

34600-49020

Unavailable

18

KNOB

34661-49020

Unavailable

19

SCREW

34662-49020

Unavailable

20

NUT This part replaces 08310-11048.

08310-00047

$2.43

21

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

22

WASHER This part replaces 08322-21048.

08322-01047

$1.88

23

GLASS

34312-49020

Unavailable

24

GASKET

34314-49020

Unavailable

25

COVER, UPPER

34313-49020

Unavailable

26

CASE, LOWER

34310-49020

Unavailable

27

SCREW 4X40 This part replaces 02112-04048.

02112-04047

$1.48

28

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

29

WASHER This part replaces 08322-21048.

08322-01047

$1.88

30

NUT This part replaces 08310-11048.

08310-00047

$2.43

31

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.86

32

SCREW This part replaces 02112-03088.

02112-0308A

$1.81

33

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

34

WASHER This part replaces 08322-21038.

08322-01037

$1.95

35

COVER, LOWER

34350-49020

Unavailable

36

SCREW

34383-49020

Unavailable

37

CASE, PILOT BULB

36380-49020

Unavailable

38

SWITCH, CLOCK

37890-49020

Unavailable

39

HOOD, METER

34150-49020

Unavailable

40

CAP

34158-49020

Unavailable

41

BRACKET, METER

34950-49020

Unavailable

42

CUSHION

34389-49020

Unavailable

43

CUSHION, REAR

34189-49020

Unavailable

44

CUSHION, FRONT

34189-49000

Unavailable

45

WASHER

34181-49020

Unavailable

46

NUT This part replaces 08310-11058.

08310-00057

$1.83

47

BOLT This part replaces 09111-08040.

09111-08031

Unavailable

48

CUSHION This part replaces 34956-31000.

34956-31001

$4.11

49

WASHER This part replaces 09160-10028.

09160-10035

$1.80

50

WASHER This part replaces 09160-08047.

09160-08130

$2.01

51

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

52

NUT This part replaces 08313-11088.

08313-10087

$2.29

53

CABLE ASSY,SPEE This part replaces 34910-45112.

34910-45115

$29.97

54

CLAMP

34938-45100

$7.42

55

WASHER This part replaces 08322-21068.

08322-01067

$1.86

56

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

57

CABLE,TACHOMETE This part replaces 34940-44035.

34940-37312

$57.68
