1980 Suzuki GS1000S AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1980 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

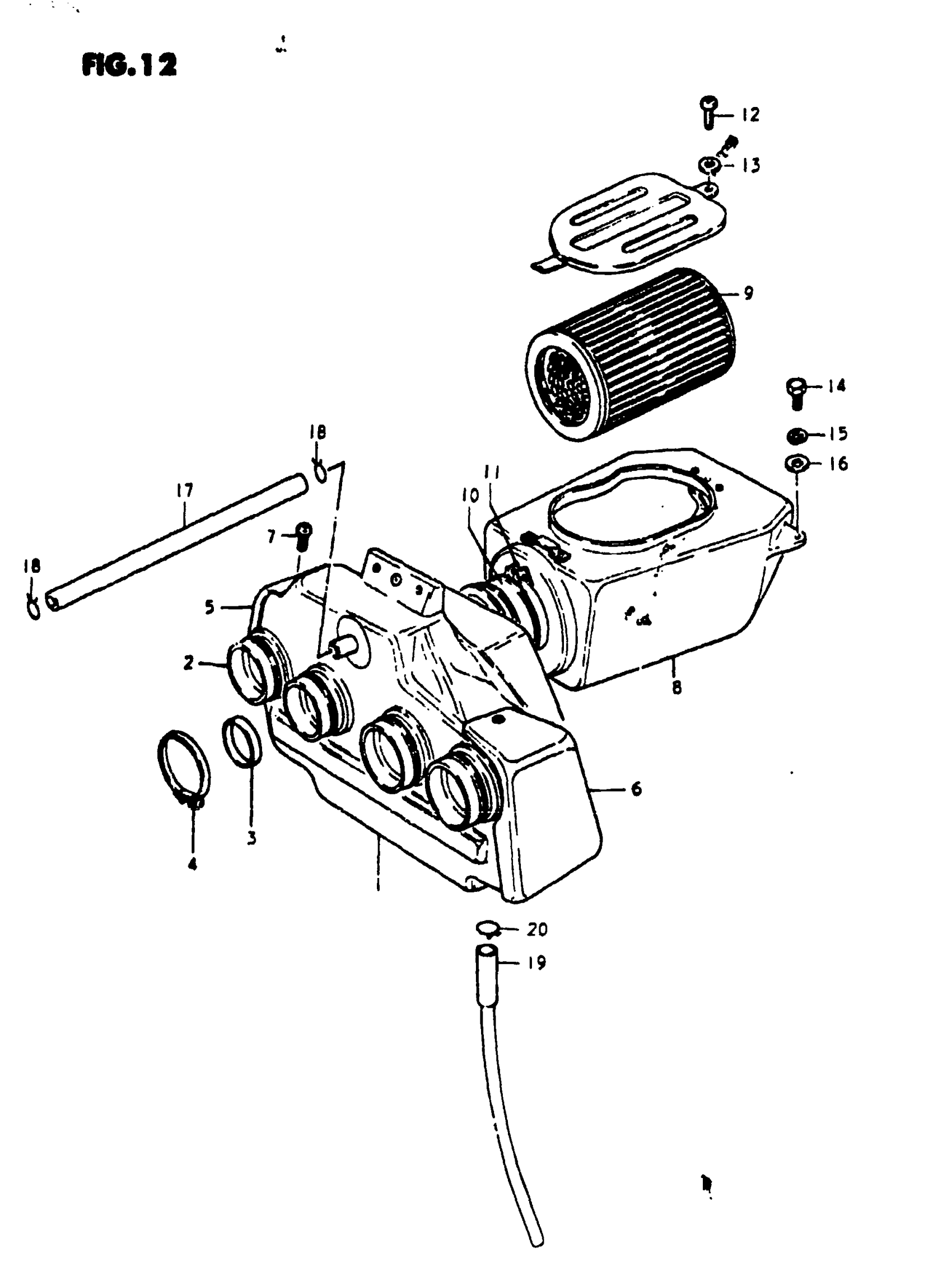

1980 Suzuki GS1000S AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT | Includes Item(s) 2 - 7

13710-49020

1
Out of stock

2

HOSE, OUTLET This part replaces 13881-49020.

13881-49021

4
Out of stock

3

RING This part replaces 13885-49000.

13885-47030

4
Out of stock

4

CLAMP

09402-66306

4

$6.34

In stock

5

COVER, RH

13831-49020

1
Out of stock

6

COVER, LH

13832-49020

1
Out of stock

7

SCREW This part replaces 03211-04108.

03211-0410B

2
Out of stock

8

CASE ASSY, REAR | Includes Item(s) 9 - 13

13701-49001

1
Out of stock

9

FILTER This part replaces 13780-49000.

13780-45500

1
Out of stock

10

HOSE, JOINT

13795-49000

1
Out of stock

11

2

$5.46

In stock

12

1

$1.52

In stock

13

1

$2.33

In stock

14

3

$2.10

In stock

15

3

$2.28

In stock

16

3

$1.84

In stock

17

1

$52.55

In stock

18

CLIP

09401-14301

2

$2.50

In stock

19

1

$15.91

In stock

20

CLIP

09401-14301

1

$2.50

In stock
