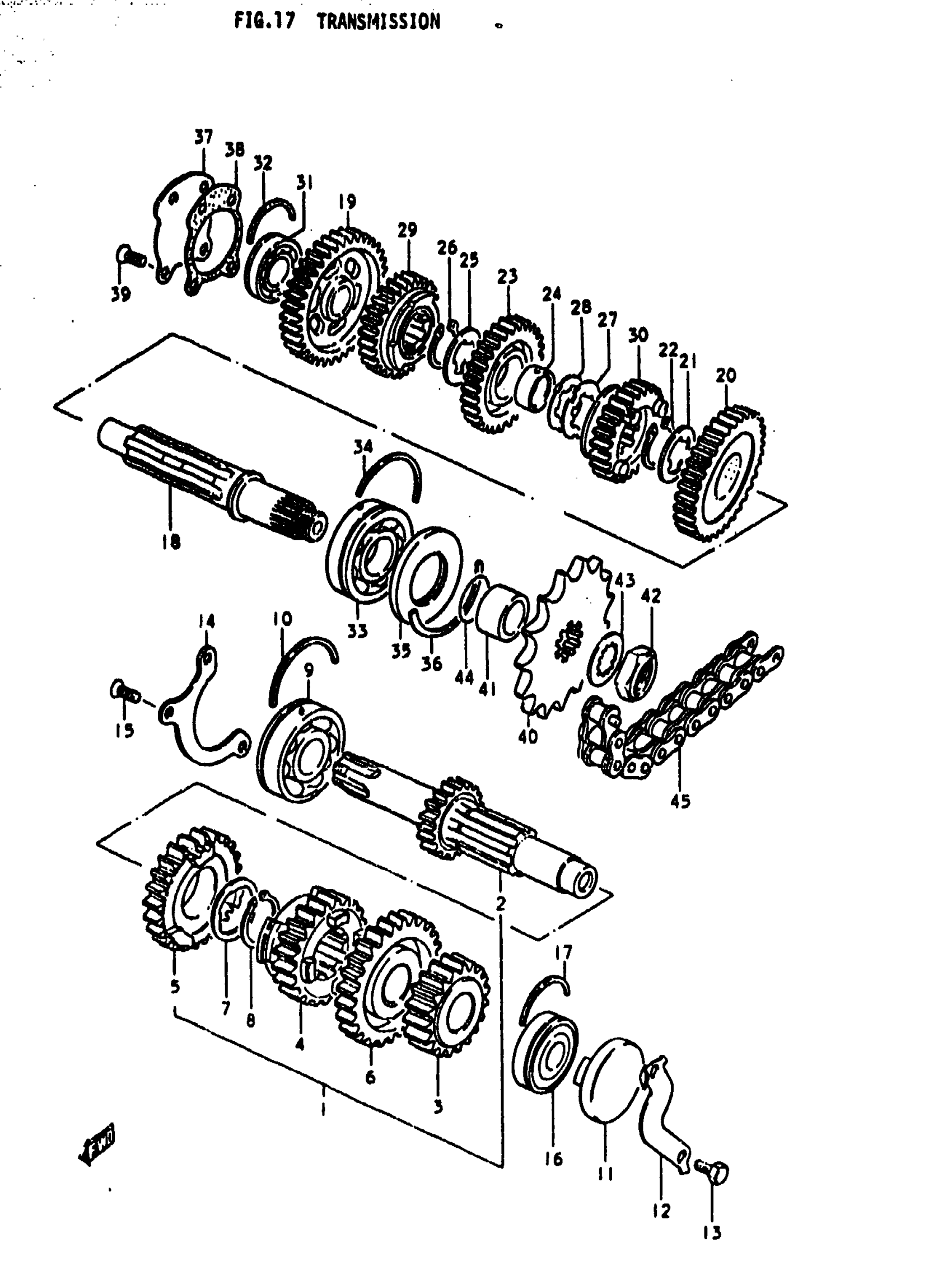

Find the part on the Transmission diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS1000S Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 8 This part replaces 24120-49001.

24120-49002

1
Out of stock

2

COUNTERSHAFT (NT:14) | NT:14 This part replaces 24100-49810.

24121-49002

1
Out of stock

3

GEAR, 2ND DRIVE | NT:18

24221-49001

1
Out of stock

4

GEAR, 3RD DRIVE | NT:21

24231-49000

1
Out of stock

5

GEAR, 4TH DRIVE | NT:24

24240-49000

1
Out of stock

6

GEAR, 5TH DRIVE | NT:26

24250-49000

1
Out of stock

7

WA HER

09167-28001

1
Out of stock

8

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

9

BEARING, LH This part replaces 09262-25051.

09262-25105

1
Out of stock

10

C RING This part replaces 09390-62006.

09390-62012

1
Out of stock

11

PLUG, COUNTERSHAFT LH This part replaces 09241-47003.

09241-47004

1
Out of stock

12

HOLDER

23117-45000

1
Out of stock

13

BOLT This part replaces 01107-06128.

01500-06127

2
Out of stock

14

HOLDER, BEARING

24741-45000

1
Out of stock

15

SCREW This part replaces 02122-06168.

02122-06167

3
Out of stock

16

BEARING, LH

09262-20044

1
Out of stock

17

C RING

09390-47003

1
Out of stock

18

DRIVESHAFT This part replaces 24131-49001.

24131-49002

1
Out of stock

19

GEAR, 1ST DRIVEN | NT:35

24310-49001

1
Out of stock

20

GEAR, 2ND DRIVEN | NT:32

24320-49000

1
Out of stock

21

WASHER

09167-28001

1
Out of stock

22

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

23

GEAR, 3RD DRIVEN | NT:29

24331-49001

1
Out of stock

24

BUSHING

24332-49000

1
Out of stock

25

WASHER, RH

09167-28001

1
Out of stock

26

CIRCLIP This part replaces 08331-11289.

08331-31289

1
Out of stock

27

LOCK WASHER, LH NO. 1 | T:1.5

09167-28002

1
Out of stock

28

LOCK WASHER, LH NO. 2 | T:1.0

09169-28001

1
Out of stock

29

GEAR, 4TH DRIVEN | NT:27

24341-45000

1
Out of stock

30

GEAR, 5TH DRIVEN | NT:25

24351-49000

1
Out of stock
