1979 Suzuki GS1000S Rear Wheel Diagram

← All diagrams

Find the part on the Rear Wheel diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

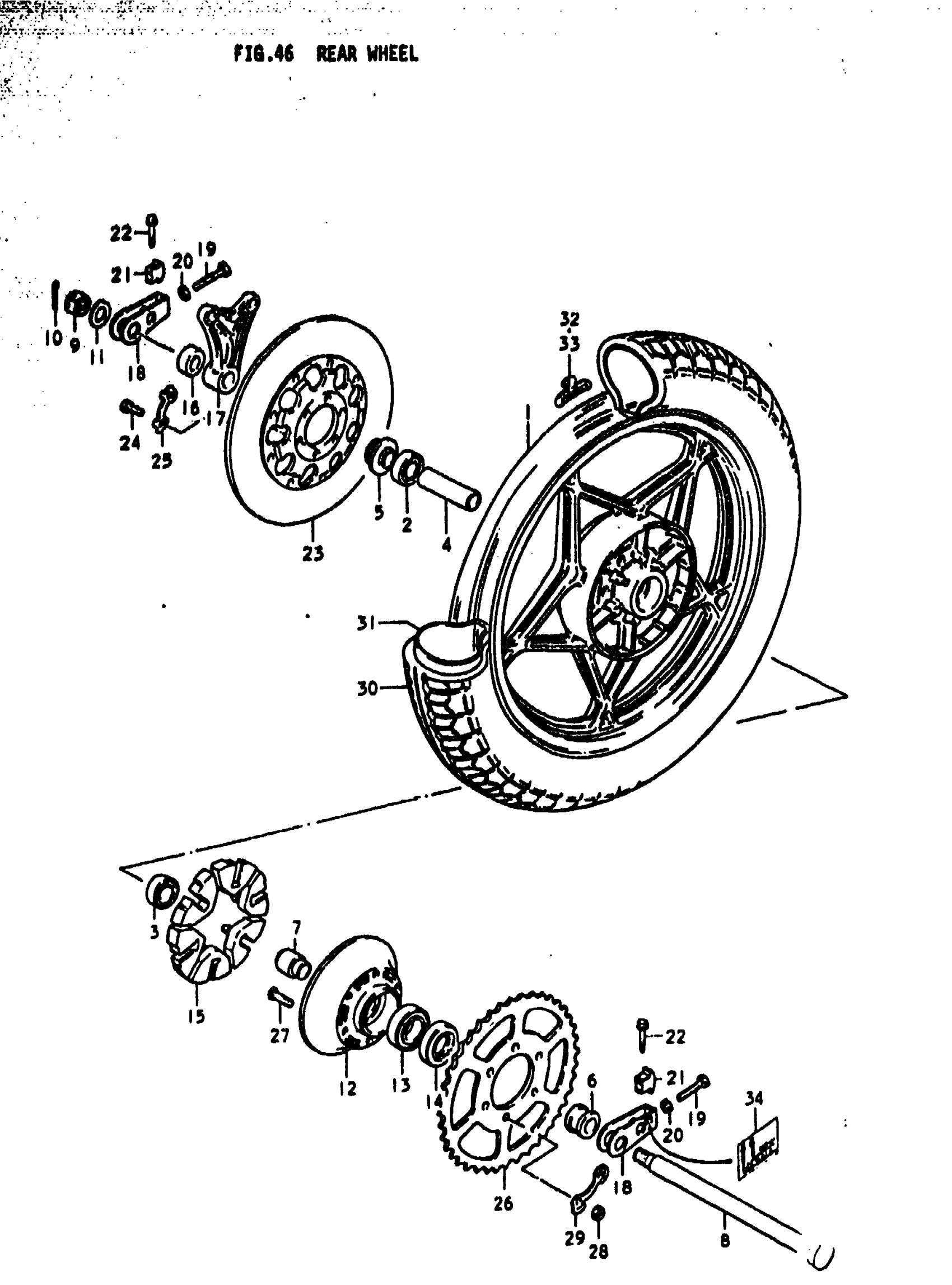

1979 Suzuki GS1000S Rear Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WHEEL, REAR | 2.15x18 This part replaces 64111-47602.

64111-49300-12U

1
Out of stock

2

BEARING, RH

08133-62047

1
Out of stock

3

BEARING, LH This part replaces 08153-62047.

09262-20042

1
Out of stock

4

SPACER

64730-45000

1
Out of stock

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

1
Out of stock

6

SPACER, AXLE LH | 20x33x28.3

09180-20054

1
Out of stock

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

1
Out of stock

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

1
Out of stock

9

NUT This part replaces 08314-31188.

08314-3118A

1
Out of stock

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

1
Out of stock

11

WASHER | 19x34x4

09160-19008

1
Out of stock

12

DRUM, SPROCKET This part replaces 64611-31000.

64611-31003

1
Out of stock

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

1
Out of stock

14

OIL SEAL

09285-33001

1
Out of stock

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

6
Out of stock

16

SPACER

09180-20070

1
Out of stock

17

BRACKET, REAR CARLPERS

69721-47011

1
Out of stock

18

ADJUSTER, CHAIN This part replaces 61410-31000.

61410-31001

2
Out of stock

19

BOLT (8X50) This part replaces 09104-08006.

09104-08034

2
Out of stock

20

2

$1.93

In stock

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

2
Out of stock

22

BOLT This part replaces 01517-08408.

01550-08407

2
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 59210-18401.

59210-18402

1
Out of stock

24

BOLT

09100-08147

6
Out of stock

25

WASHER

09169-08016

3
Out of stock

26

SPROCKET,REAR,N | NT:42 This part replaces 64511-49000.

64511-49002

1
Out of stock

27

BOLT This part replaces 09119-10002.

09105-10001

6
Out of stock

28

NUT This part replaces 08310-12108.

08310-00107

6
Out of stock

29

WASHER

09169-10007

3
Out of stock

30

TIRE (4.00V18) | 4.00V18 This part replaces 65100-49015.

65100-49016

1
Out of stock

31

TUBE, INNER | 4.00-18

65200-49015

1
Out of stock

32

BARANCER | (0~3) 20G

55411-47001

1
Out of stock

33

BARANCER | (0~3) 30G

55412-47001

1
Out of stock

34

LABEL, CHAIN WEAR INDICATOR

68377-49000

1
Out of stock
