1979 Suzuki GS1000S Front Caripers Diagram

← All diagrams

Find the part on the Front Caripers diagram for your 1979 Suzuki GS1000S, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

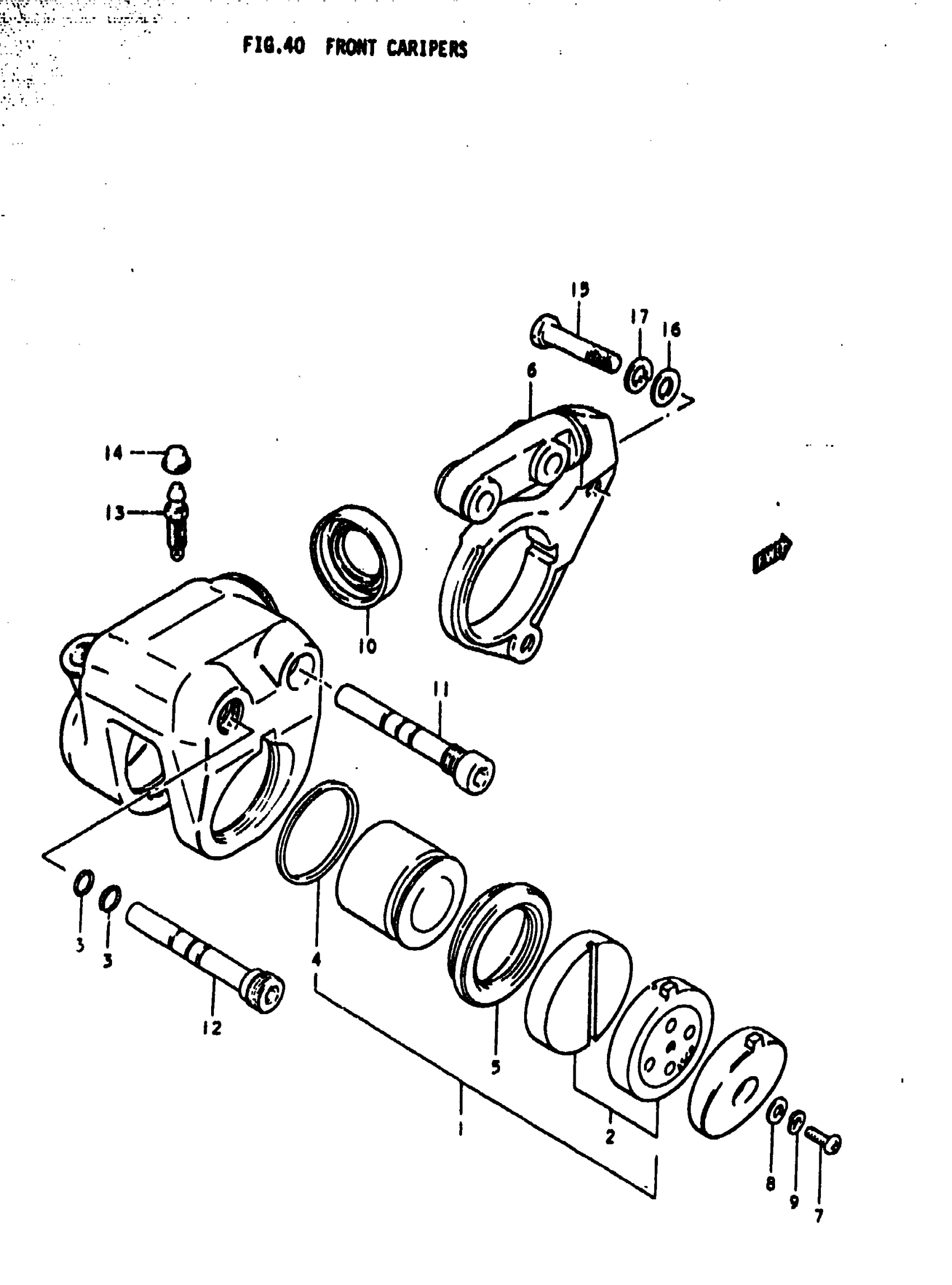

1979 Suzuki GS1000S Front Caripers Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

CALIPERS ASSY, RH

59100-47022

1
Out of stock

0

CALIPERS ASSY, LH | Includes Item(s) 1 - 14

59300-47022

1
Out of stock

1

NO DESCRIPTION AVAILABLE This part replaces 59100-47840.

59100-47861

2
Out of stock

2

NO DESCRIPTION AVAILABLE This part replaces 59300-47830.

59300-47880

2
Out of stock

3

O RING

59111-34020

2
Out of stock

4

PISTON SEAL This part replaces 59107-34020.

59107-34021

2
Out of stock

5

PISTON BOOTS This part replaces 59108-34020.

59108-34021

2
Out of stock

6

HOLDER, CARIPERS RH

59150-47020

1
Out of stock

6

HOLDER, CARIPERS LH

59150-34020

1
Out of stock

7

SCREW

02112-05107

2
Out of stock

8

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

9

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

10

BOOT, HOLDER

59112-34020

2
Out of stock

11

AXLE, CARIPERS NO. 1

59305-45020

2
Out of stock

12

AXLE, CARIPERS NO. 2

59306-45020

2
Out of stock

13

BREATHER

59121-34020

2
Out of stock

14

CAP, BLEEDER This part replaces 52474-60020.

55156-66310

2
Out of stock

15

BOLT (10X38) This part replaces 09104-10007.

09104-10029

4
Out of stock

16

4

$2.31

In stock

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

4
Out of stock
