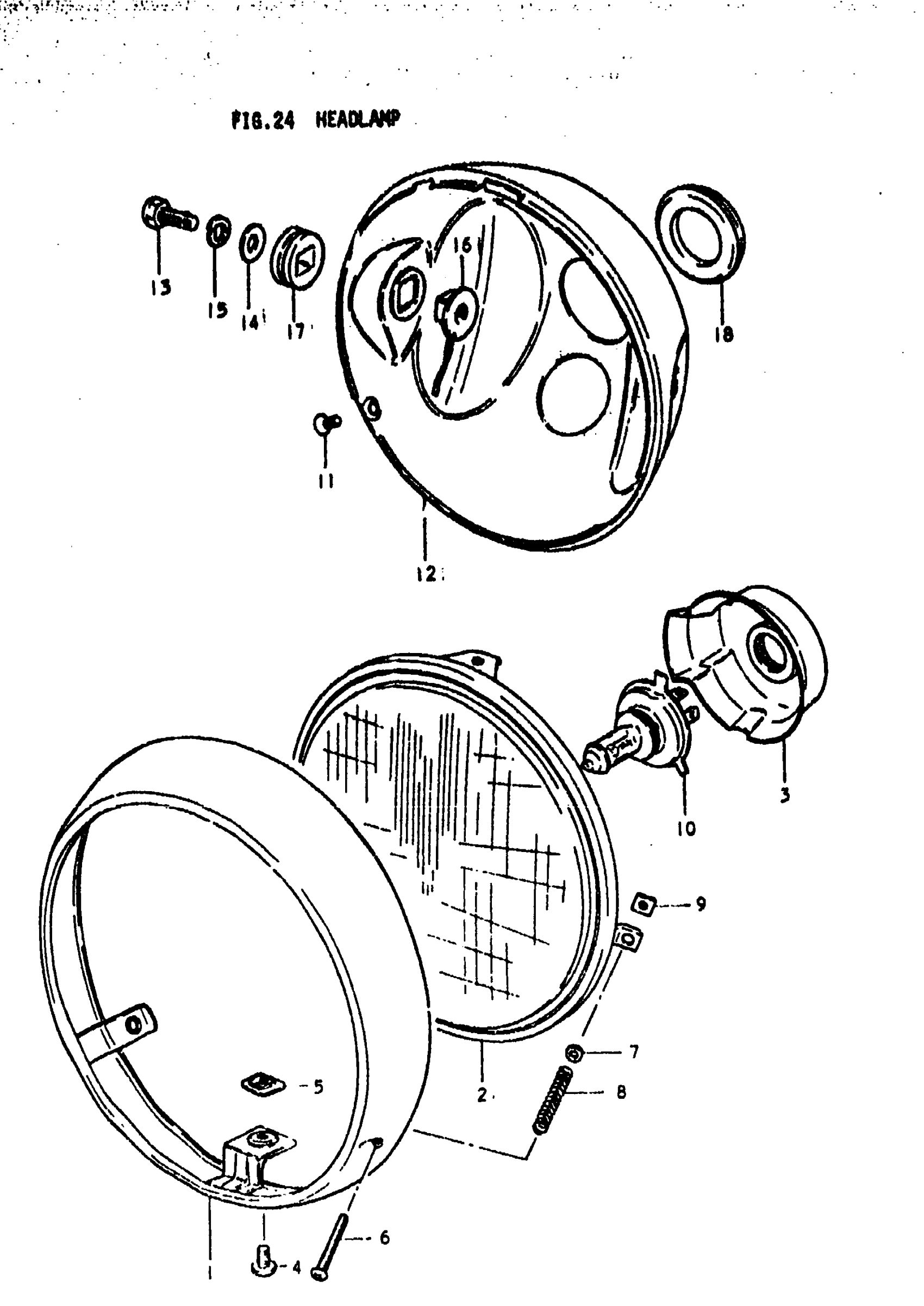

Suzuki GS1000L (1979) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | Includes Item(s) 1 - 9 This part replaces 35100-45230-999.

35100-45231-999

Unavailable

1

RIM This part replaces 35111-45230.

35111-45231

Unavailable

2

UNIT

35121-45230

Unavailable

3

COVER

35173-45230

Unavailable

4

SCREW This part replaces 02112-05088.

02112-05087

$1.45

5

NUT

35155-48510

$2.58

6

SCREW This part replaces 35151-48510.

35151-45230

Unavailable

7

WASHER This part replaces 35157-48510.

35157-27630

$3.67

8

SPRING This part replaces 35154-45230.

35154-48510

Unavailable

9

NUT This part replaces 35152-48510.

35135-45600

$4.12

10

BULB | H4, 12V, 60/55W

09471-12060

$22.69

11

SCREW This part replaces 02132-05108.

02122-05107

$1.48

12

HOUSING, HEADLAMP

51810-33600

Unavailable

13

BOLT

01204-08207

$2.50

14

WASHER This part replaces 08322-11088.

08322-01087

$1.86

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

16

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.85

17

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.45

18

GROMMET

51845-31031

$4.26
