1979 Suzuki GS1000L Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 1979 Suzuki GS1000L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

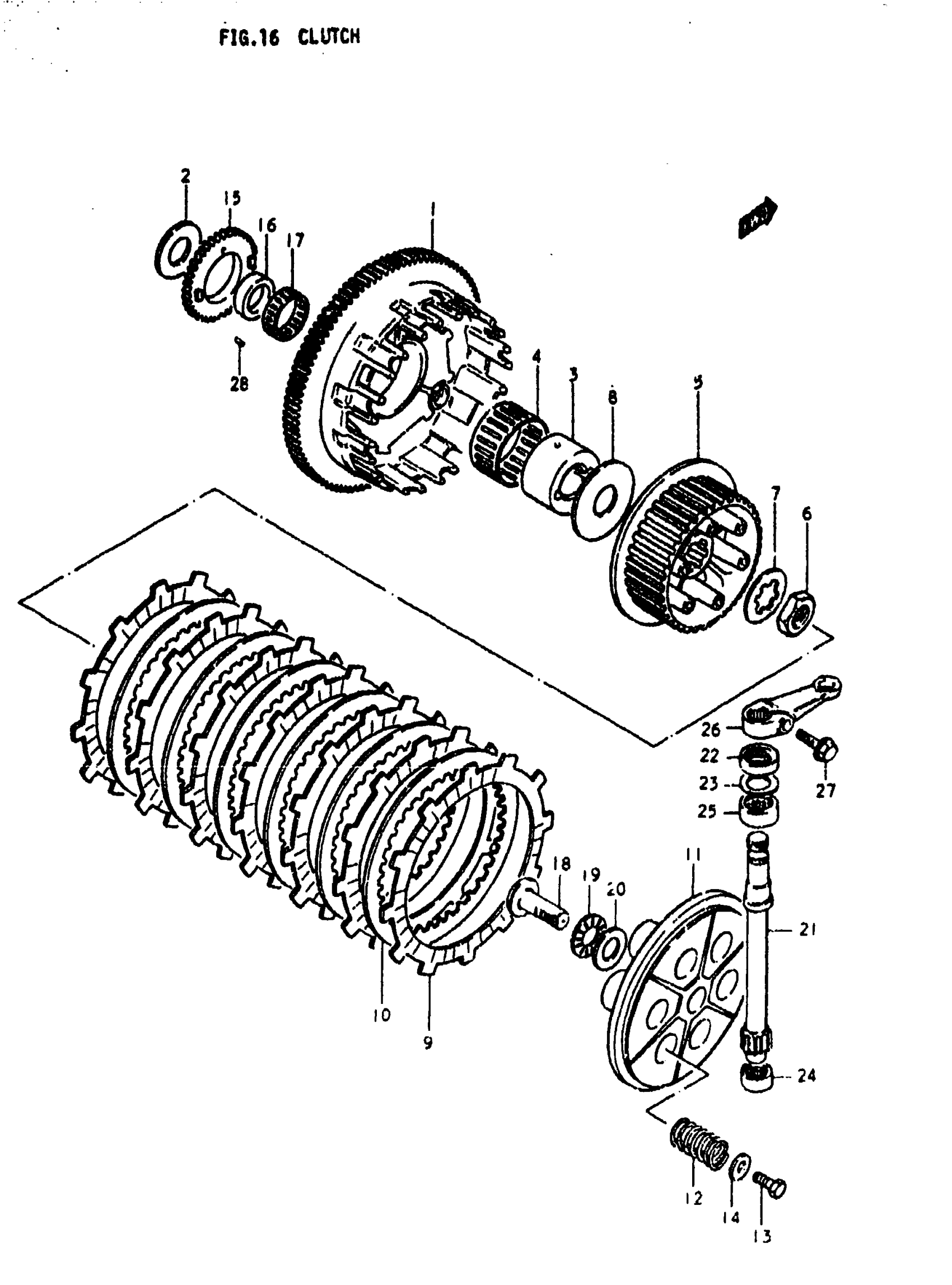

1979 Suzuki GS1000L Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GEAR ASSY, PRIMARY DRIVEN

21200-49002

1
Out of stock

2

WASHER | 25x50x2.5 This part replaces 09160-25023.

09160-25055

1
Out of stock

3

SPACER This part replaces 21251-45001.

21251-49200

1
Out of stock

4

BEARING This part replaces 09263-51001.

09263-51002

1
Out of stock

5

NO DESCRIPTION AVAILABLE This part replaces 21411-49001.

21410-49X00

1
Out of stock

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

1
Out of stock

7

WASHER

09167-25007

1
Out of stock

8

WASHER | 25x66x3.5

09160-25022

1
Out of stock

9

PLATE CLUTCH DR This part replaces 21441-49001.

21441-49002

8
Out of stock

10

PLATE, DRIVEN,NO.1 This part replaces 21451-49000.

21451-44B00

7
Out of stock

11

DISC, PRESSURE This part replaces 21462-49000.

21462-49201

1
Out of stock

12

SPRING

09440-19007

6
Out of stock

13

6

$2.10

In stock

14

WASHER (6.5X20X1.6) | 15.5x24x2.3 This part replaces 09160-06020.

09160-06066

6
Out of stock

15

GEAR, OIL PUMP DRIVE (NT:34) | NT:34 This part replaces 16321-49990.

16321-49000

1
Out of stock

16

SPACER

16325-45001

1
Out of stock

17

BEARING

09263-36002

1
Out of stock

18

RACK, CLUTCH RELEASE

23165-49000

1
Out of stock

19

THRUST BEARING

09263-15003

1
Out of stock

20

WASHER, CLUTCH PUSH | 15x28x1 This part replaces 09160-15015.

09160-15045

1
Out of stock

21

PINION, CLUTCH RELEASE

23261-49001

1
Out of stock

22

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

23

WASHER (14.5X22X1) | 14.2x22x1 This part replaces 09160-14003.

09160-14054

1
Out of stock

24

BEARING NO.1

09263-12014

1
Out of stock

25

BEARING NO.2

09263-15012

1
Out of stock

26

ARM, RELEASE This part replaces 23271-49001.

23271-45400

1
Out of stock

27

BOLT This part replaces 01527-06207.

01550-06207

1
Out of stock

28

CUSHION,PRIMARY This part replaces 21215-49000.

21215-49001

1
Out of stock
