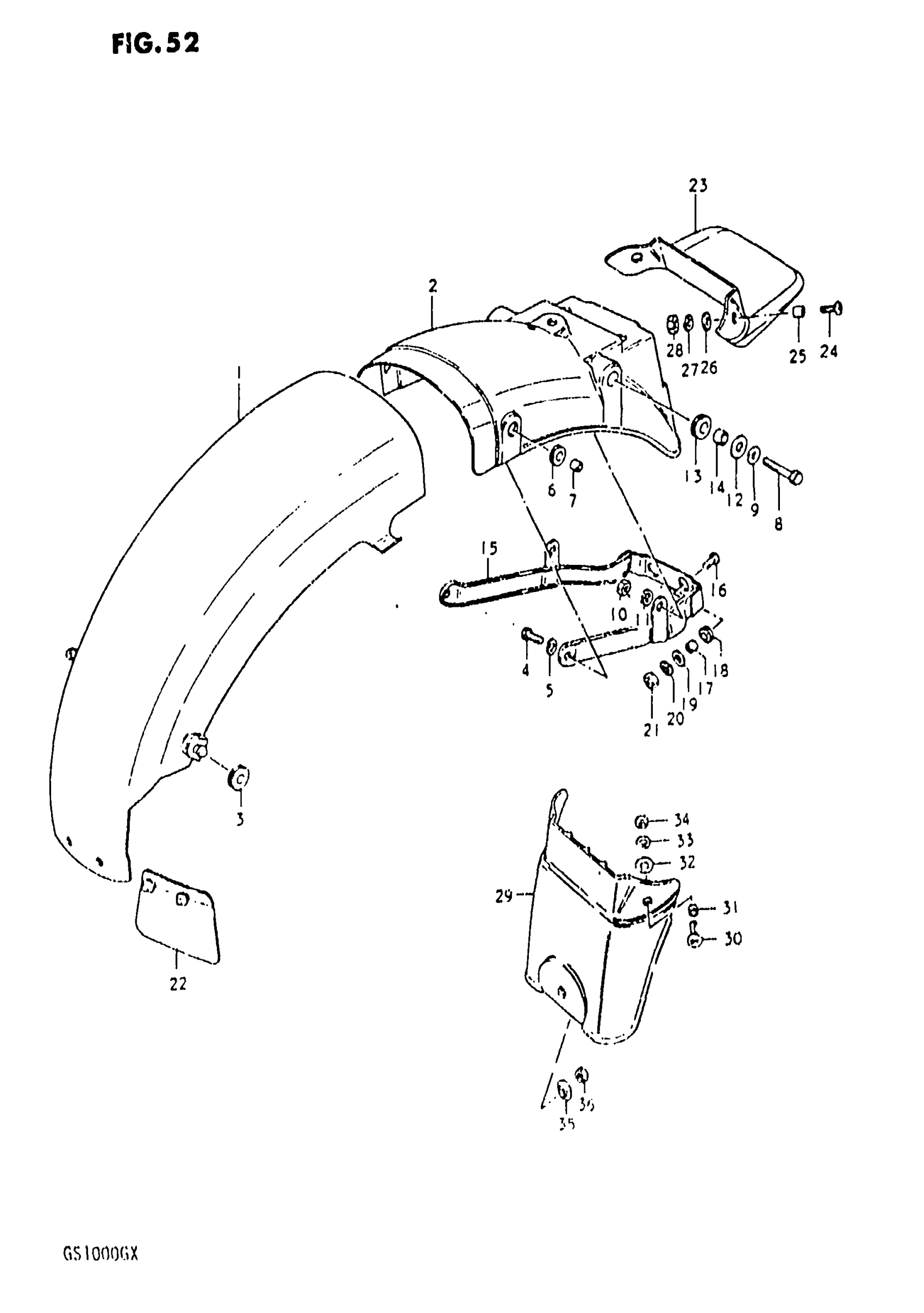

Suzuki GS1000G (1981) REAR FENDER Diagram

#

Description
Price

1

BODY,RR FENDER This part replaces 63112-49001.

63112-49004

Unavailable

2

BODY, REAR FENDER REAR | BLACK

63113-49000-291

Unavailable

3

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

4

BOLT This part replaces 01107-06208.

01500-06207

$1.99

5

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

6

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.70

7

SPACER (6.1X9X7.5)

09180-06038

$1.86

8

BOLT

01204-08457

$3.17

9

WASHER This part replaces 08322-21088.

08322-01087

$1.86

10

NUT This part replaces 08310-12088.

08310-00087

$1.83

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$1.83

12

WASHER 6.5x26x1.2

09160-08032

$2.28

13

FENDER SIDE CUS This part replaces 09320-12011.

09320-12090

$1.89

14

SPACER This part replaces 09180-08021.

09180-08188

$2.68

15

REINFORCEMENT, REAR FENDER

63120-49000

Unavailable

16

SCREW

02142-06207

$1.38

17

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$1.68

18

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.91

19

WASHER This part replaces 09160-06012.

09160-06054

$1.62

20

LOCK WASHER This part replaces 08321-21060.

08321-01067

$1.83

21

.NUT This part replaces 08310-11068.

08310-00067

$1.83

22

MUD GUARD, REAR FENDER

63411-31900

Unavailable

23

EXTENSION, REAR FENDER | OPT

63311-49030

Unavailable

24

SCREW | OPT This part replaces 09125-06009.

09125-06073

$1.93

25

SPACER (6.2x8.3x5.7) | OPT

09180-06001

$2.50

26

WASHER (6.5X18X1.0) | OPT

09160-06028

$1.43

27

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$1.83

28

.NUT | OPT This part replaces 08310-11068.

08310-00067

$1.83

29

NO DESCRIPTION AVAILABLE | OPT This part replaces 63311-49000.

63311-49050

Unavailable

30

SCREW | OPT This part replaces 09125-06009.

09125-06073

$1.93

31

SPACER (6.2x8.3x5.7) | OPT

09180-06001

$2.50

32

WASHER (6.5X18X1.0) | OPT

09160-06028

$1.43

33

LOCK WASHER | OPT This part replaces 08321-21068.

08321-01067

$1.83

34

.NUT This part replaces 08310-11068.

08310-00067

$1.83
