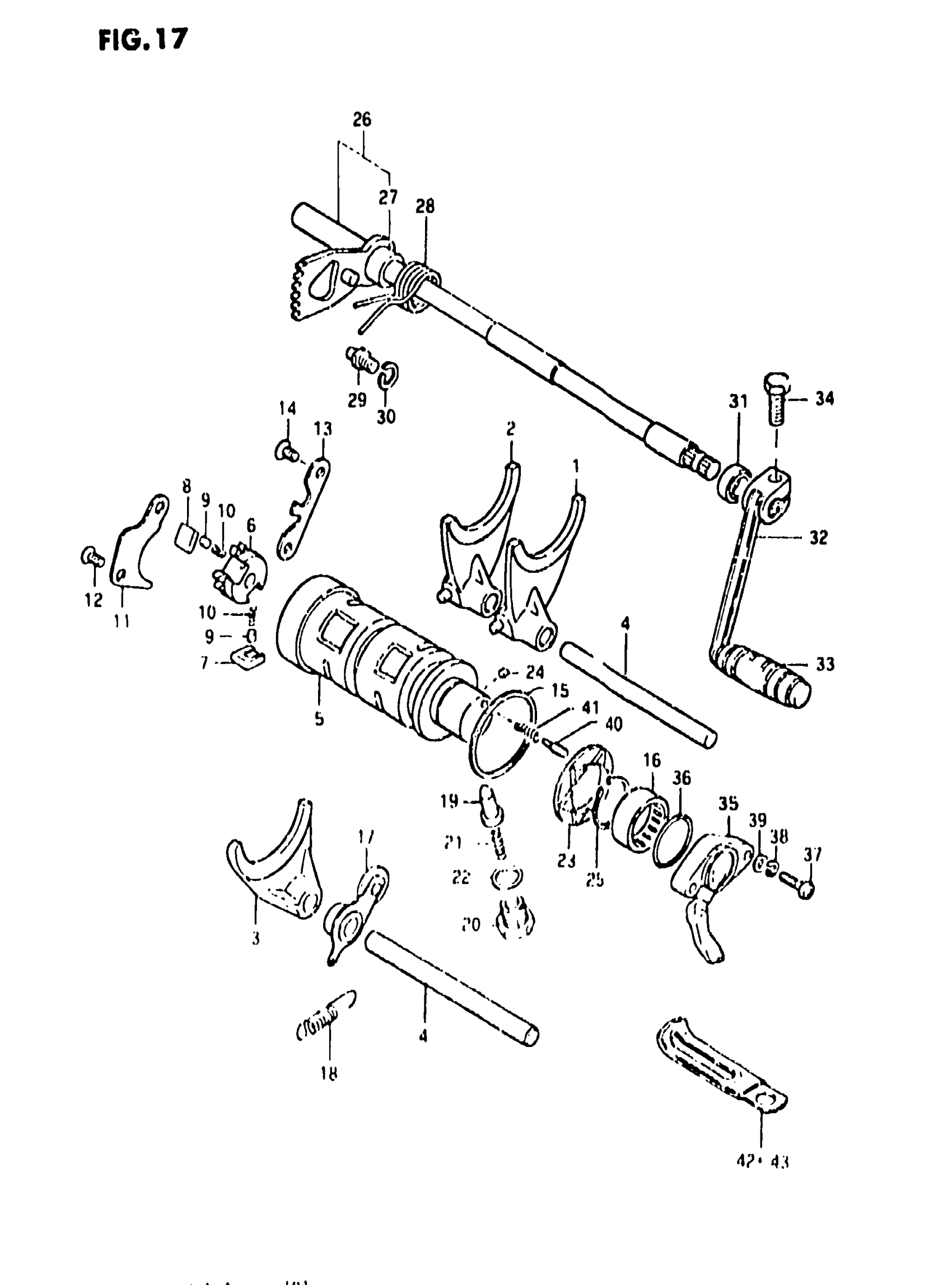

Suzuki GS1000G (1981) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, DRIVEN GEAR SHIFTING | 4TH

25211-49200

$98.00

2

FORK, DRIVEN GEAR SHIFTING | 5TH

25211-34000

Unavailable

3

FORK, DRIVE GEAR SHIFTING | 3RD

25231-45100

Unavailable

4

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

$26.03

5

CAM, GEAR SHIFTING

25310-45101

Unavailable

6

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

$30.40

7

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

$6.61

8

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

$6.80

9

PIN

09261-05003

$1.69

10

SPRING

09440-04003

$1.48

11

LIFTER, PAWL

25331-11001

$7.22

12

SCREW This part replaces 02122-06128.

02122-06127

$1.83

13

GUIDE, CAM

25341-18000

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.83

15

WASHER

09160-40001

Unavailable

16

BEARING

09263-25018

$19.30

17

STOPPER, CAM

25350-45100

Unavailable

18

SPRING

09443-09006

Unavailable

19

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

$13.50

20

HOLDER, STOPPER

25354-30000

$10.35

21

SPRING

09440-06018

Unavailable

22

GASKET

09168-14004

$1.69

23

PLATE, STOPPER

25381-45000

Unavailable

24

PIN This part replaces 06211-04063.

04221-04069

$2.30

25

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

$1.09

26

NO DESCRIPTION AVAILABLE | Includes Item(s) 27 This part replaces 25510-45100.

25510-45101

Unavailable

27

SPACER

09180-12090

Unavailable

28

SPRING This part replaces 09444-26012.

09444-26013

$2.84

29

STOPPER, ARM This part replaces 25671-01000.

25671-01011

$4.09

30

.LOCK WASHER This part replaces 09162-08005.

08321-01087

$1.83

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$5.70

32

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 33 This part replaces 25600-45100.

25600-45130

Unavailable

33

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

$3.42

34

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.55

35

BODY, SWITCH

37720-45100

$113.83

36

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

$2.31

37

SCREW This part replaces 02112-05208.

02112-05207

$1.97

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.83

39

WASHER This part replaces 08322-21058.

08322-01057

$1.86

40

CONTACT, SWITCH

09209-05011

$2.02

41

SPRING

09440-04010

$1.52

42

CLAMP This part replaces 09404-06401.

09404-06039

$1.73

43

CLAMP This part replaces 09404-08401.

09404-08420

$2.90
