1981 Suzuki GS1000G Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1981 Suzuki GS1000G, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

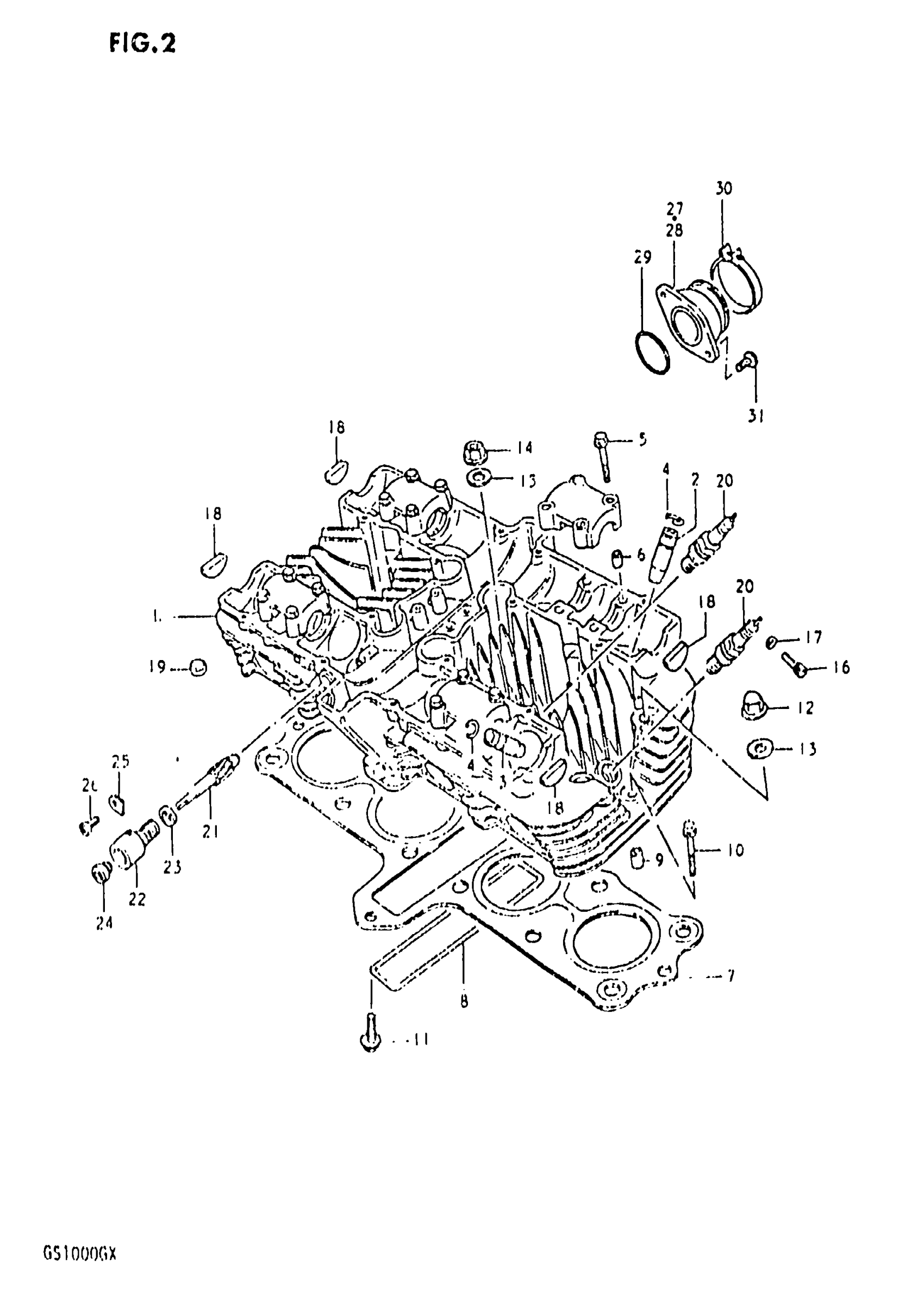

1981 Suzuki GS1000G Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-49830.

11100-49880

1
Out of stock

2

GUIDE, INTAKE VALVE

11115-45740

4
Out of stock

3

GUIDE, EXHAUST VALVE

11116-45740

4
Out of stock

4

RING, VALVE GUIDE

09381-10003

8
Out of stock

5

BOLT (6X39)

09103-06026

16
Out of stock

6

PIN

09206-08001

8
Out of stock

7

GASKET This part replaces 11141-49002.

11141-49410

1
Out of stock

8

O RING

09280-99003

1
Out of stock

9

PIN

04211-11189

2
Out of stock

10

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

2
Out of stock

11

BOLT This part replaces 01517-06308.

01550-06307

1
Out of stock

12

NUT

09159-10026

4
Out of stock

13

GASKET This part replaces 09168-10019.

09168-10017

4
Out of stock

14

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

8
Out of stock

15

WASHER

09160-10039

8
Out of stock

16

BOLT, PICK UP & CLAMP This part replaces 09106-05006.

07130-0510B

4
Out of stock

17

GASKET

09168-05010

4
Out of stock

18

PLUG, CYLINDER HEAD

09241-23002

4
Out of stock

19

PAD, RUBBER This part replaces 11152-45000.

11152-38A00

18
Out of stock

20

SPARK PLUG This part replaces 09482-00225.

09482-00091

4
Out of stock

20

SPARK PLUG W24E This part replaces 09482-00196.

09482-00247-111

4
Out of stock

21

GEAR, TACHO. DRIVEN (NT:10) This part replaces 26431-45001.

26431-45002

1
Out of stock

22

SLEEVE This part replaces 26441-45000.

26441-49000

1
Out of stock

23

SEAL BAND

26451-45000

1
Out of stock

24

OIL SEAL

09289-05002

1
Out of stock

25

PLATE

26449-33000

1
Out of stock

26

SCREW

09128-05101

1
Out of stock

27

2

$43.82

In stock

28

PIPE,INTAKE,L This part replaces 13120-49100.

13120-49101

2
Out of stock

29

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

4
Out of stock

30

CLAMP

09402-54303

4
Out of stock

31

SCREW This part replaces 02112-06168.

02112-06167

8
Out of stock
