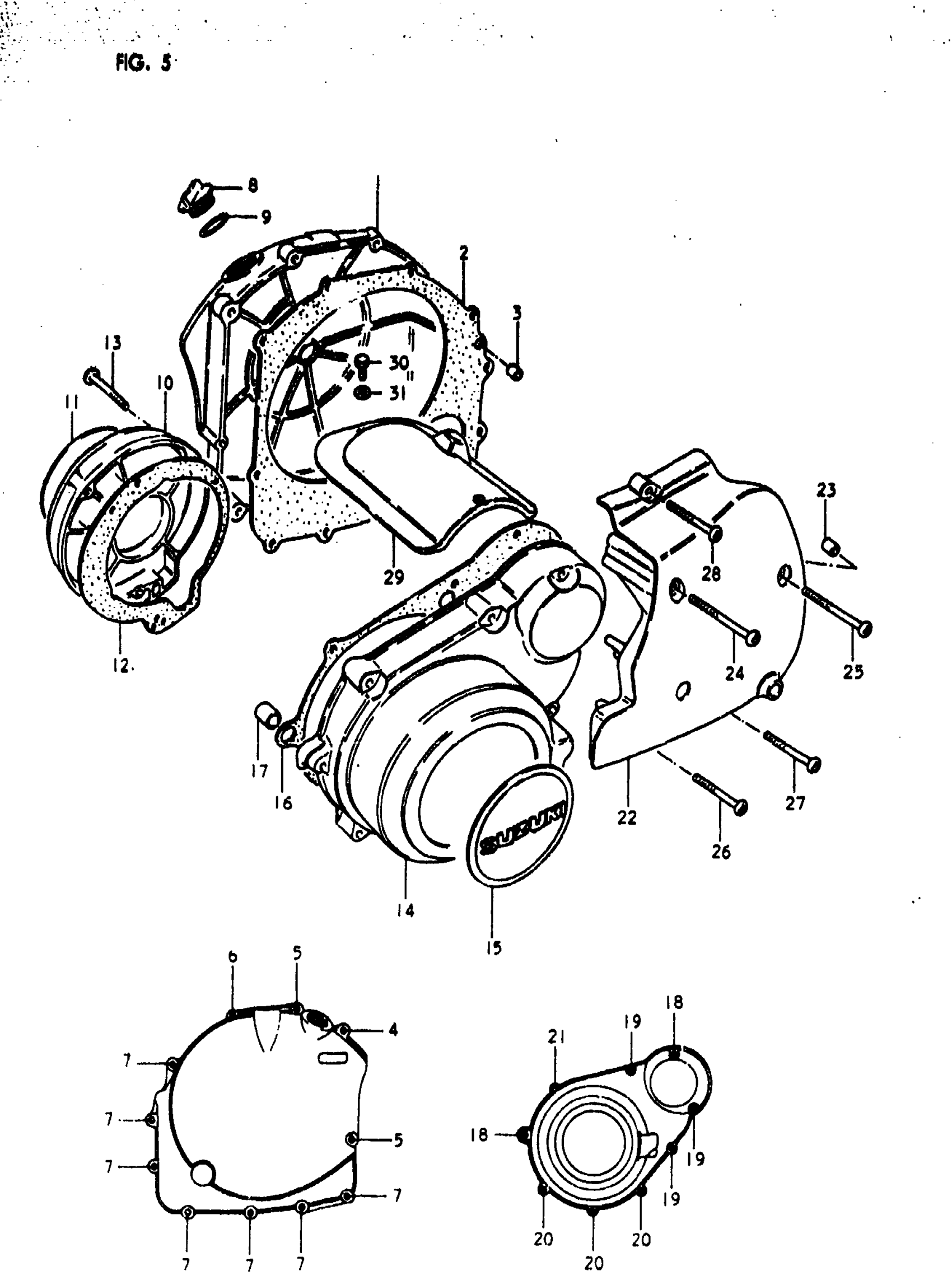

Suzuki GS1000E (1980) CLANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH

11340-49000

Unavailable

2

GASKET,CL COVER This part replaces 11482-49000.

11482-49000-H17

Unavailable

3

PIN

04211-09129

$1.70

4

SCREW This part replaces 02112-06358.

02112-06357

$1.82

5

SCREW This part replaces 02112-06308.

02112-06307

$2.04

6

SCREW This part replaces 02112-06258.

02112-06257

$1.68

7

SCREW This part replaces 02112-06208.

02112-06207

$1.83

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$9.42

9

O RING

09280-32005

$2.07

10

COVER, CONTACT BREAKER This part replaces 11381-49001.

11381-49002

Unavailable

11

EMBLEM This part replaces 68235-45100.

68235-45200

Unavailable

12

GASKET

11491-45000

Unavailable

13

SCREW This part replaces 02112-05308.

02112-0530A

$1.93

14

COVER, GENERATOR This part replaces 11351-49001.

11351-49002

Unavailable

15

EMBLEM This part replaces 68233-45100.

68233-45200

$18.20

16

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.55

17

PIN This part replaces 09206-13001.

04211-13189

$2.25

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.83

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.86

20

SCREW This part replaces 02112-06358.

02112-06357

$1.82

21

SCREW This part replaces 02112-06308.

02112-06307

$2.04

22

COVER, ENGINE SPROCKET

11360-49000

Unavailable

23

PIN

04211-09129

$1.70

24

SCREW (6x100)

09125-06003

$3.80

25

SCREW This part replaces 02112-06858.

02112-06857

$2.74

26

SCREW This part replaces 02112-06708.

02112-06707

$2.64

27

SCREW (6x55)

02112-06557

$2.63

28

SCREW This part replaces 02112-06308.

02112-06307

$2.04

29

COVER, STARTER MOTOR

11382-49002

$52.35

30

BOLT This part replaces 01104-05108.

01500-0510B

$1.88

31

WASHER This part replaces 08322-21058.

08322-01057

$1.93
