1980 Suzuki GS1000E AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1980 Suzuki GS1000E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

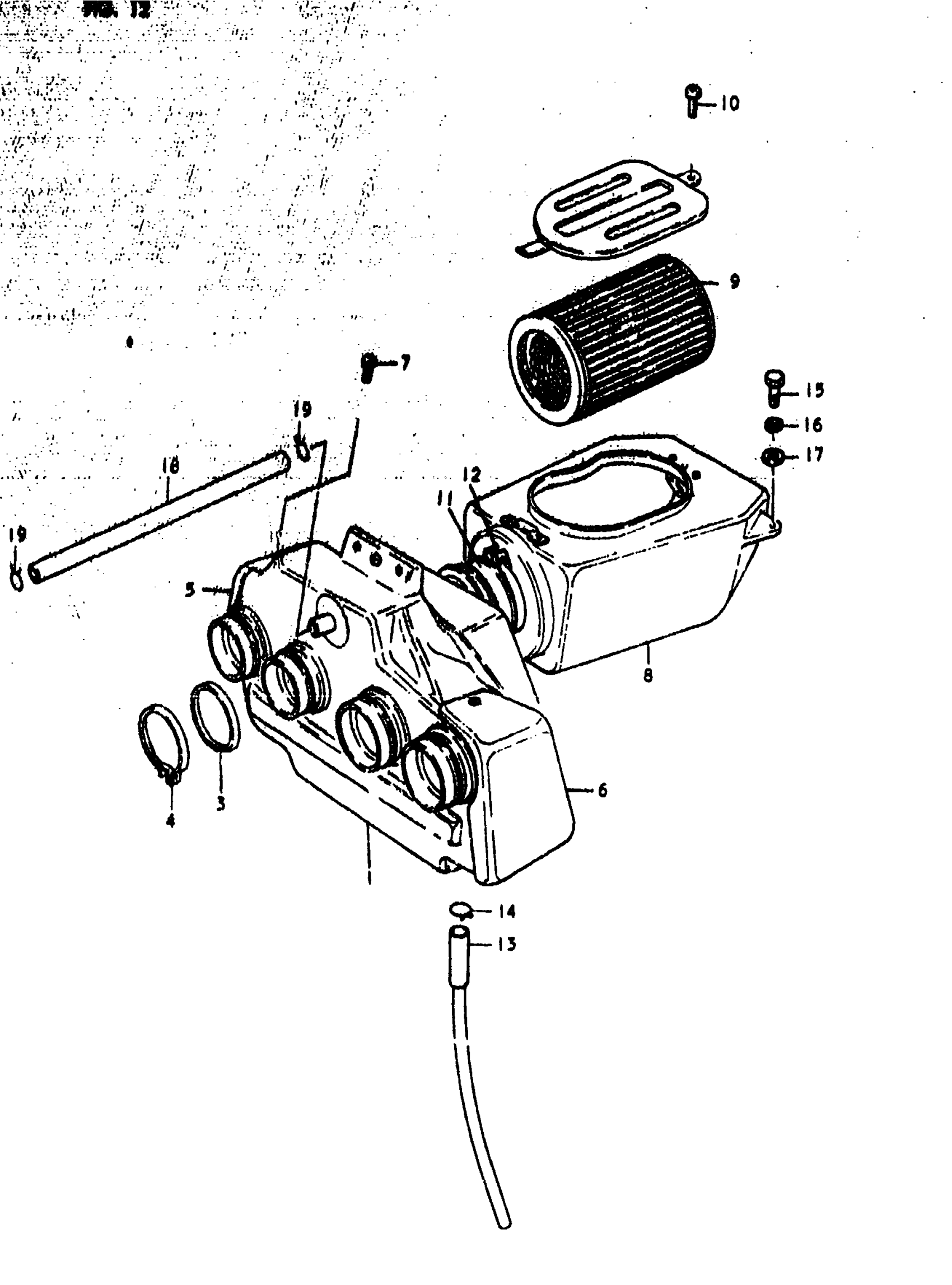

1980 Suzuki GS1000E AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT | Includes Item(s) 2 - 7

13710-49020

1
Out of stock

2

HOSE, OUTLET This part replaces 13881-49020.

13881-49021

4
Out of stock

3

RING This part replaces 13885-49000.

13885-47030

4
Out of stock

4

CLAMP This part replaces 09402-62206.

09402-62208

4
Out of stock

5

COVER, RH

13831-49020

1
Out of stock

6

COVER, LH

13832-49020

1
Out of stock

7

SCREW

03211-04088

—
Out of stock

8

CASE SET, REAR | Includes Item(s) 9 - 12

13701-49001

1
Out of stock

9

FILTER This part replaces 13780-49000.

13780-45500

1
Out of stock

10

SCREW This part replaces 02112-05108.

02112-05107

1
Out of stock

11

HOSE, JOINT

13795-49000

1
Out of stock

12

CLAMP This part replaces 13796-49000.

09402-70902

2
Out of stock

13

TUBE,DRAIN This part replaces 13870-00020.

13870-11459

1
Out of stock

14

CLIP

09401-14301

1
Out of stock

15

3

$2.10

In stock

16

3

$2.28

In stock

17

WASHER This part replaces 08322-21068.

08322-01067

3
Out of stock

18

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

19

CLIP

09401-14301

2
Out of stock
