1979 Suzuki GS1000C AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1979 Suzuki GS1000C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

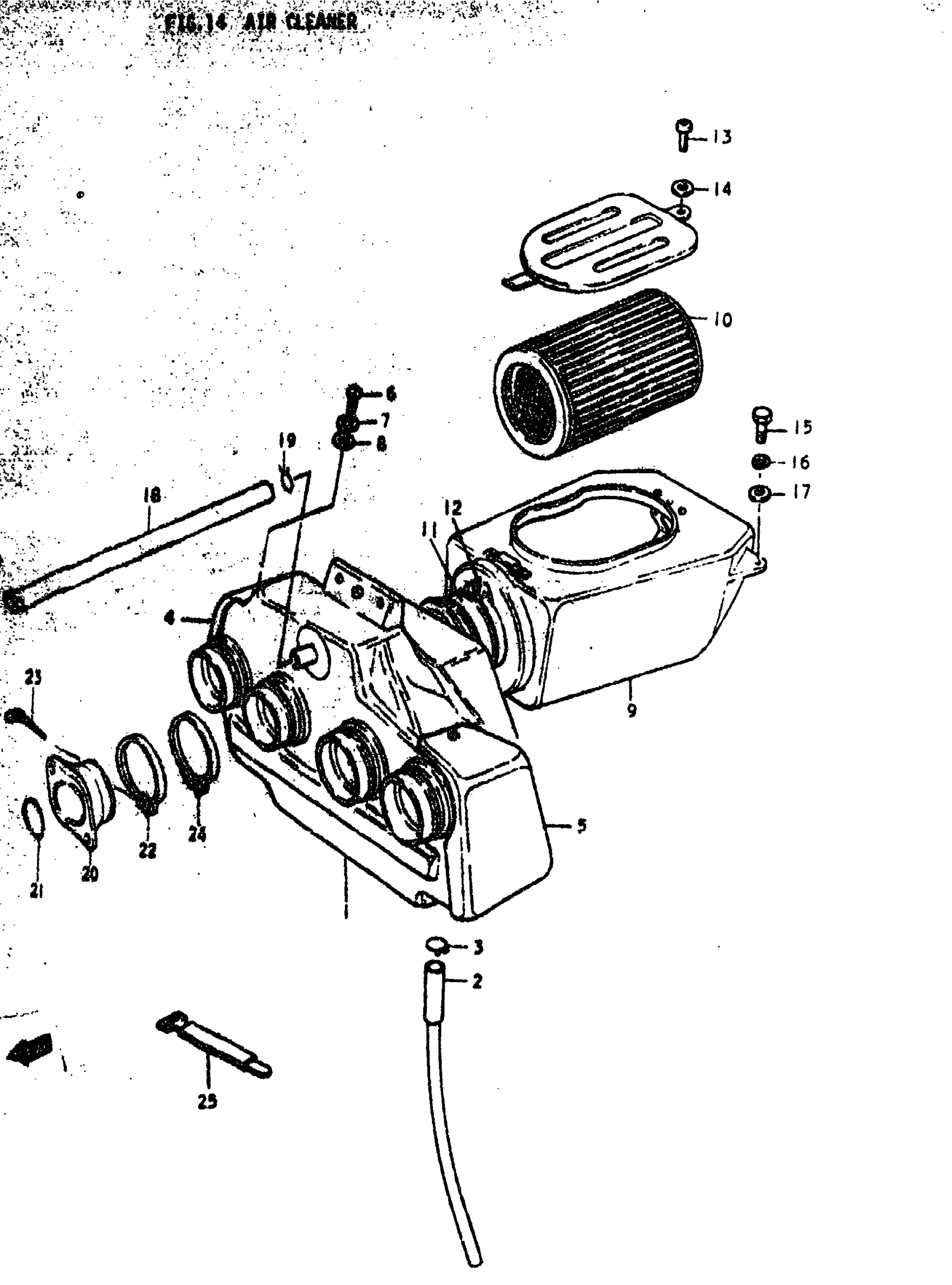

1979 Suzuki GS1000C AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE ASSY, FRONT | C&EC

13710-49000

1
Out of stock

1

CASE ASSY, FRONT | N&EN; Includes Item(s) 2 - 8

13710-49010

1
Out of stock

2

TUBE,DRAIN | C&EC,N&EN This part replaces 13790-44010.

13870-11459

1
Out of stock

3

CLIP | C&EC,N&EN This part replaces 13795-44010.

09401-14301

1
Out of stock

4

COVER, RH | N&EN

13775-49010

1
Out of stock

5

COVER, LH | N&EN

13776-49010

1
Out of stock

6

SCREW | N&EN This part replaces 02122-05108.

02122-05107

2
Out of stock

7

LOCK WASHER | N&EN This part replaces 08321-21058.

08321-0105A

2
Out of stock

8

WASHER | N&EN This part replaces 08322-21058.

08322-01057

2
Out of stock

9

CASE ASSY, REAR | C&EC This part replaces 13701-49000.

13701-49001

1
Out of stock

9

CASE ASSY, REAR | N&EN; FROM 13701-49000; Includes Item(s) 10 - 14

13701-49001

1
Out of stock

10

FILTER | C&EC,N&EN This part replaces 13780-49000.

13780-45500

1
Out of stock

11

HOSE | C&EC,N&EN

13795-49000

1
Out of stock

12

CLAMP | C&EC,N&EN This part replaces 13796-49000.

09402-70902

2
Out of stock

13

SCREW | C&EC,N&EN This part replaces 02112-05128.

02112-05127

1
Out of stock

14

WASHER | C&EC,N&EN This part replaces 08322-21058.

08322-01057

1
Out of stock

17

WASHER | C&EC,N&EN This part replaces 08322-21068.

08322-01067

3
Out of stock

18

HOSE,11X15X2000 | C&EC,N&EN; 11x15x230 This part replaces 09343-11001.

09352-11154-00B

1
Out of stock

19

CLIP | C&EC,N&EN

09401-14301

2
Out of stock

20

PIPE,INTAKE | C&EC,N&EN This part replaces 13110-45010.

13110-49001

4
Out of stock

21

O RING | C&EC,N&EN

09280-32006

4
Out of stock

22

CLAMP | C&EC,N&EN This part replaces 09402-46306.

09402-46208

4
Out of stock

23

SCREW | C&EC,N&EN This part replaces 02112-06168.

02112-06167

8
Out of stock

24

CLAMP | C&EC,N&EN

09402-52306

4
Out of stock

25

CLAMP, OVER FLOW HOSE | C&EC,N&EN; L: 120

09407-12402

1
Out of stock
