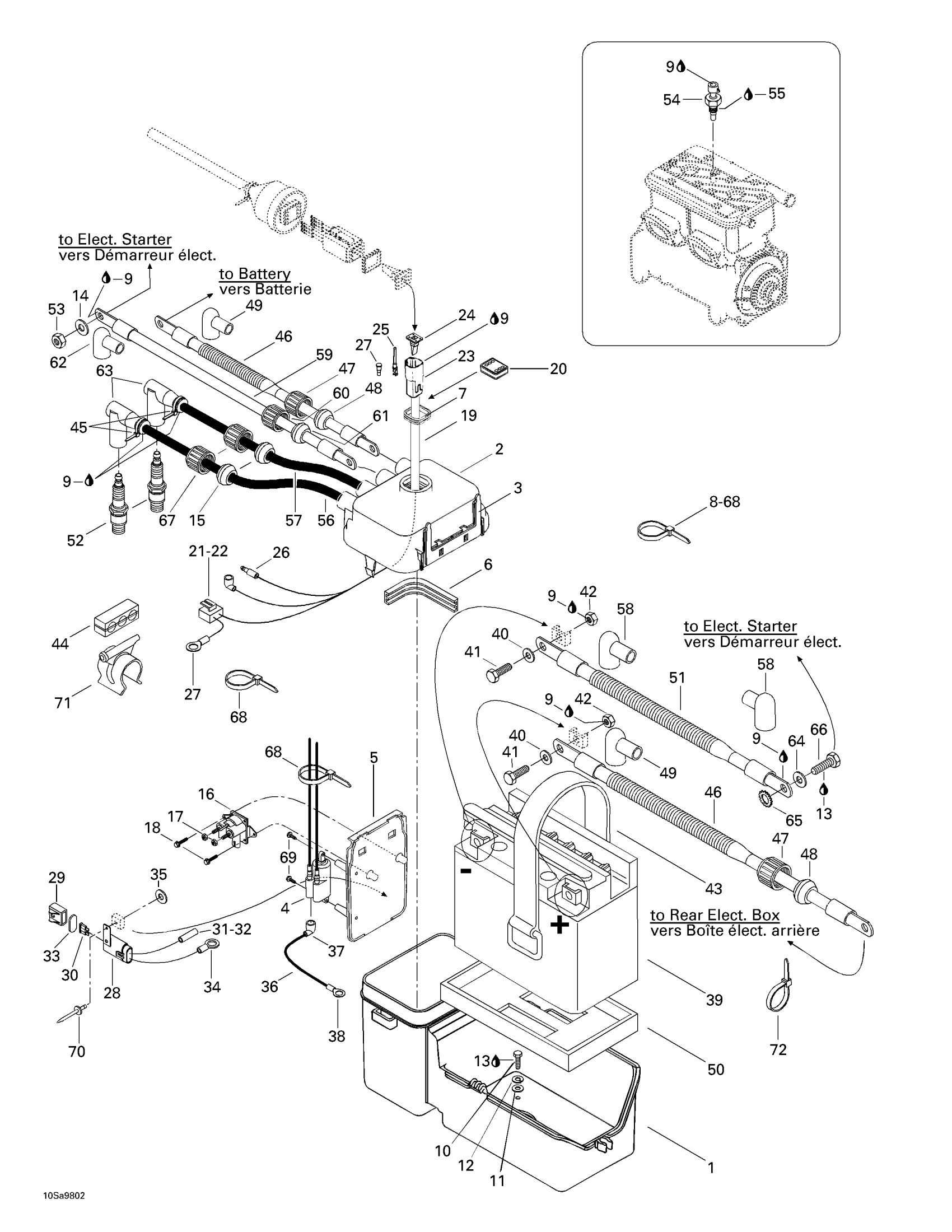

Sea-doo GS, 5626/5844, 1998 Rear Electrical Box Diagram

#

Description
Price

1

Base

278001191

Unavailable

2

Cover

278001265

Unavailable

3

Ground Plate

278000732

Unavailable

4

IGNITION COIL - Call your local BRP dealership

278001130

Unavailable

5

Mounting Plate

278001193

Unavailable

6

GASKET - Call your local BRP dealership

278000440

Unavailable

7

Gasket

293200030

Unavailable

8

Tie Wrap 142 mm

293750002

Unavailable

9

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

10

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

11

Flat Washer 5 mm, Stainless

234052600

Unavailable

12

Helical Lock Washer M5

234151601

Unavailable

13

Loctite 271, 10 ml

293800005

Unavailable

14

Stainless Flat Washer M6

234061600

$0.25

15

Grommet

278000682

Unavailable

16

Starter Relay

278003012

Unavailable

17

Hex. Elastic Stop Nut M6

232561600

$0.92

18

Hex. Flange Screw M6 X 10

210261040

Unavailable

19

Rear Electric Box Harness | Includes 19 - 27.

278000861

Unavailable

20

Sealing Cap

293000052

Unavailable

21

Male Connector, 2 Circuits

278001113

$12.65

22

Female Terminal

278001114

$2.55

23

Male Terminal Housing, 6 Circuits

710001539

$15.57

24

Female Lock, 6 Circuits

278000735

$3.02

25

Male Terminal

278000631

$4.12

26

Male Terminal

278000230

Unavailable

27

Ring Terminal

278000300

Unavailable

28

Fuse Harness 15 Amp | Includes 28 - 34.

278000665

Unavailable

29

Fuse Holder Cap

278001326

$6.03

30

Fuse, 15 Amperes

278000343

$2.72

31

Female Terminal | DS 650 X

278001009

Unavailable

32

Insulated Sheath

278001007

Unavailable

33

Cushion

278000805

$3.22

34

Ring Terminal

278000300

Unavailable

35

Flat Washer, Emhart

213200016

Unavailable

36

Ground Harness | Includes 82 - 84.

278000664

Unavailable

37

FEMALE TERMINAL - Call your local BRP dealership

278000228

Unavailable

38

Ring Terminal

278000300

Unavailable

39

Battery 19A | Includes 5 to 8

278001756

Unavailable

40

FLAT WASHER 6 MM - Call your local BRP dealership

211200018

Unavailable

41

Hex. Screw M6 X 16

207161644

Unavailable

42

Hex. Nut M6

232061414

$0.44

43

STRAP - Call your local BRP dealership

293850031

Unavailable

44

3 WIRE SUPPORT - Call your local BRP dealership

278000245

Unavailable

45

Tie Wrap 142 mm

293750002

Unavailable

46

Engine Harness | RX DI 5591/5592.

278000511

Unavailable

47

Electric Wire Cap

278000100

Unavailable

48

GROMMET - Call your local BRP dealership

278000098

Unavailable

49

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

50

Battery Lower Pad

278001234

Unavailable

51

Battery Ground Cable

278001097

Unavailable

52

NGK Spark Plug BR8ES This part replaces 278000609.

219703119

Unavailable

53

Hex. Elastic Stop Nut M6

232561600

$0.92

54

Temperature Sensor

278000965

Unavailable

55

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

56

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

57

SPARK PLUG WIRE - Call your local BRP dealership This part replaces 278001268.

278002198

Unavailable

58

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

59

Starter Cable (Red) | Includes 59 - 62.

278000975

Unavailable

60

Electric Wire Cap

278000100

Unavailable

61

GROMMET - Call your local BRP dealership

278000098

Unavailable

62

PROTECTION CAP - Call your local BRP dealership

278000020

Unavailable

63

SPARK PLUG CAP - Call your local BRP dealership

278000237

Unavailable

64

Stainless, Flat Washer 8 mm

234081600

Unavailable

65

WASHER-LOCK TOOTHED DIN.6797A-A2 - Call your local BRP dealership

213400001

Unavailable

66

HEX. SCREW M8 X 20 - Call your local BRP dealership

207182060

Unavailable

67

Electric Wire Cap

278000100

Unavailable

68

Tie Wrap 94 mm | 4X4

293750001

$0.83

69

Self Tapping Screw M6.3 x 25

215462550

Unavailable

70

Pop Rivet 3/16"

293150005

Unavailable

71

COLLAR SUPPORT - Call your local BRP dealership

278000559

Unavailable

72

Tie-Rap 173 mm

293750009

Unavailable
