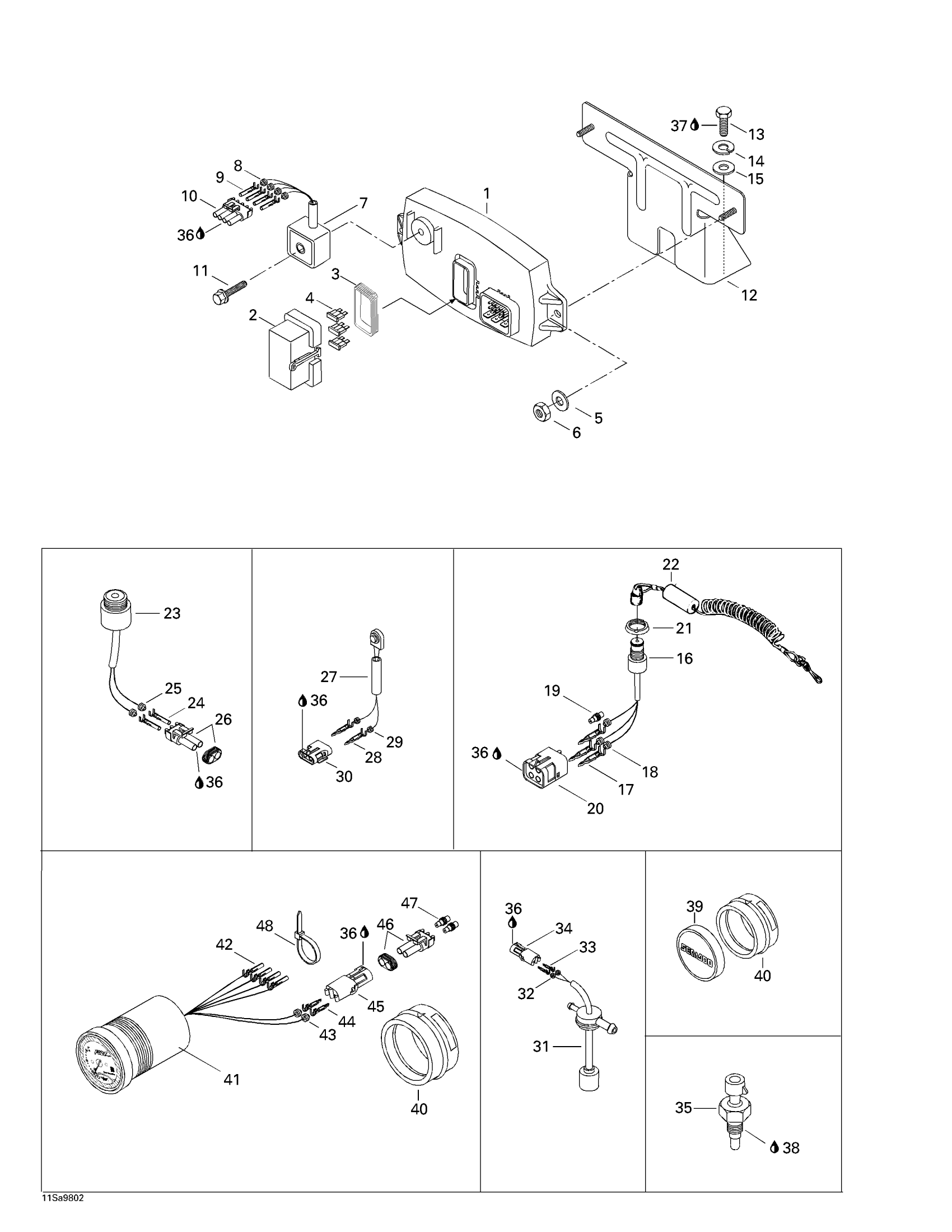

Sea-doo GS, 5626/5844, 1998 Electronic Module And Electrical Accessories Diagram

#

Description
Price

1

ELECTRONIC MODULE ASS'Y - Call your local BRP dealership | Includes 1 - 4.

278000916

Unavailable

2

FUSE COVER - Call your local BRP dealership | Includes 2 to 3, North America This part replaces 278001618.

278002102

Unavailable

3

Cover Seal

278001070

Unavailable

4

Fuse, 15 Amperes

278000343

$2.72

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

Fuse, 5 Amperes | CE

278000344

$3.22

5

Flat Washer M6, Stainless

234062600

Unavailable

6

Hex. Elastic Stop Nut M6

232561600

$0.92

7

RECTIFIER ASSY - Call your local BRP dealership | Includes 8 - 11.

278001239

Unavailable

8

Wire Seal

278000218

Unavailable

9

Female Terminal

409007300

$0.36

10

Male Housing, 4 Circuits

278000395

Unavailable

11

Hex. Tapping Screw

211000139

Unavailable

12

Box Support Ass'y

278001128

Unavailable

13

HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership

243041660

Unavailable

14

WASHER-LOCK IMPERIAL - Call your local BRP dealership

211200043

Unavailable

15

Flat Washer 5 mm, Stainless

234052600

Unavailable

16

Safety Switch | Includes 15 - 19.

278000977

Unavailable

17

Male Terminal | XT Models

278000222

$2.55

18

Wire Seal

278000218

Unavailable

19

Wire Seal

278000216

Unavailable

20

CONNECTOR_FEMALE 4 CAVITIES - Call your local BRP dealership

278000890

Unavailable

21

Safety Nut (DESS Switch)

278002963

$2.72

22

Safety Lanyard, Antitheft This part replaces 278001543.

278002199

Unavailable

23

Buzzer Ass'y | Includes 11 - 14.

278000978

Unavailable

24

Female Terminal

278000223

Unavailable

25

Wire Seal

278000218

Unavailable

26

Male Connector, 2 Circuits

278000220

$11.02

27

Ignition Switch Ass'y (Stop / Start) | Includes 27 - 30.

278001115

Unavailable

28

Male Terminal | XT Models

278000222

$2.55

29

Wire Seal

278000218

Unavailable

30

Female Housing, 2 Circuits

278000217

Unavailable

31

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

32

Wire Seal

278000218

Unavailable

33

Male Terminal | XT Models

278000222

$2.55

34

Female Housing, 2 Circuits

278000217

Unavailable

35

Temperature Sensor

278000965

Unavailable

36

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

37

Loctite 271, 10 ml

293800005

Unavailable

38

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

39

Gauge Cap (Indigo Blue)

293000069

Unavailable

40

Gauge Support

293720047

Unavailable

41

Oil / Fuel Level Gauge | Includes 41 - 48.

278000976

Unavailable

42

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

43

Wire Seal

278001065

Unavailable

44

Male Terminal | XT Models

278000222

$2.55

45

Female Housing, 2 Circuits

278000217

Unavailable

46

Male Connector, 2 Circuits

278000220

$11.02

47

Wire Seal

278000216

Unavailable

48

Tie Wrap 142 mm

293750002

Unavailable
