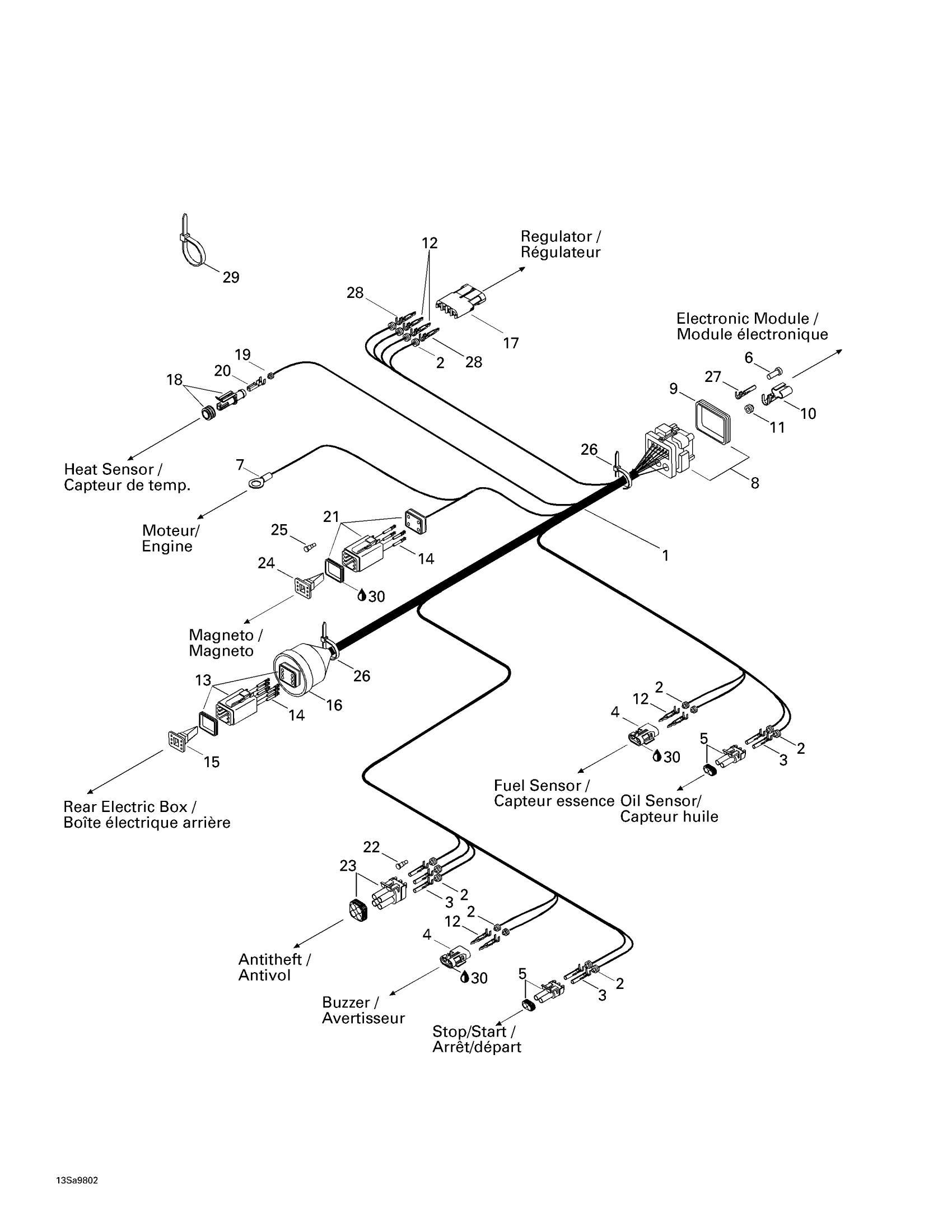

Sea-doo GS, 5626/5844, 1998 Electrical Harness Diagram

#

Description
Price

1

Main Harness Ass'y | Includes 1 - 28.

278000908

Unavailable

2

Wire Seal

278000218

Unavailable

3

Female Terminal

278000223

Unavailable

4

Female Housing, 2 Circuits

278000217

Unavailable

5

Male Connector, 2 Circuits

278000220

$11.02

6

SEALING CAP - Call your local BRP dealership

293000070

Unavailable

7

Open Barrel

278001165

Unavailable

8

Male Connector, 26 Circuits | Includes 16a - 17.

278000993

Unavailable

9

WIRE SEAL - Call your local BRP dealership

278001307

Unavailable

10

FEMALE TERMINAL - Call your local BRP dealership

278000994

Unavailable

11

WIRE SEAL - Call your local BRP dealership

278000996

Unavailable

12

Male Terminal | XT Models

278000222

$2.55

13

MALE HOUSING, 6 CIRCUITS - Call your local BRP dealership

710001540

Unavailable

14

Female Terminal

278000632

Unavailable

15

MALE LOCK, 6 CIRCUITS - Call your local BRP dealership

278000737

Unavailable

16

Switch Boot

570150700

Unavailable

17

FEMALE HOUSING, 4 CIRCUITS - Call your local BRP dealership

278000394

Unavailable

18

Male Housing, 1 Circuit

278001012

$12.65

19

Wire Seal

278001013

Unavailable

20

Female Terminal

278001014

Unavailable

21

Male Connector, 4 Circuits | CE

278000739

$14.92

22

Wire Seal

278000216

Unavailable

23

CONNECTOR_MALE 4 CAVITIES - Call your local BRP dealership

278000891

Unavailable

24

Male Lock, 4 Circuits | CE

278000738

$2.91

25

Sealing Cap

293000052

Unavailable

26

Tie Wrap 142 mm

293750002

Unavailable

27

FEMALE TERMINAL - Call your local BRP dealership

278000995

Unavailable

28

Male Terminal

409004300

$5.46

29

Tie Wrap 94 mm | 4X4

293750001

$0.83

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 173 mm

293750009

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie Wrap 368 mm

293750008

$0.85

30

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable
