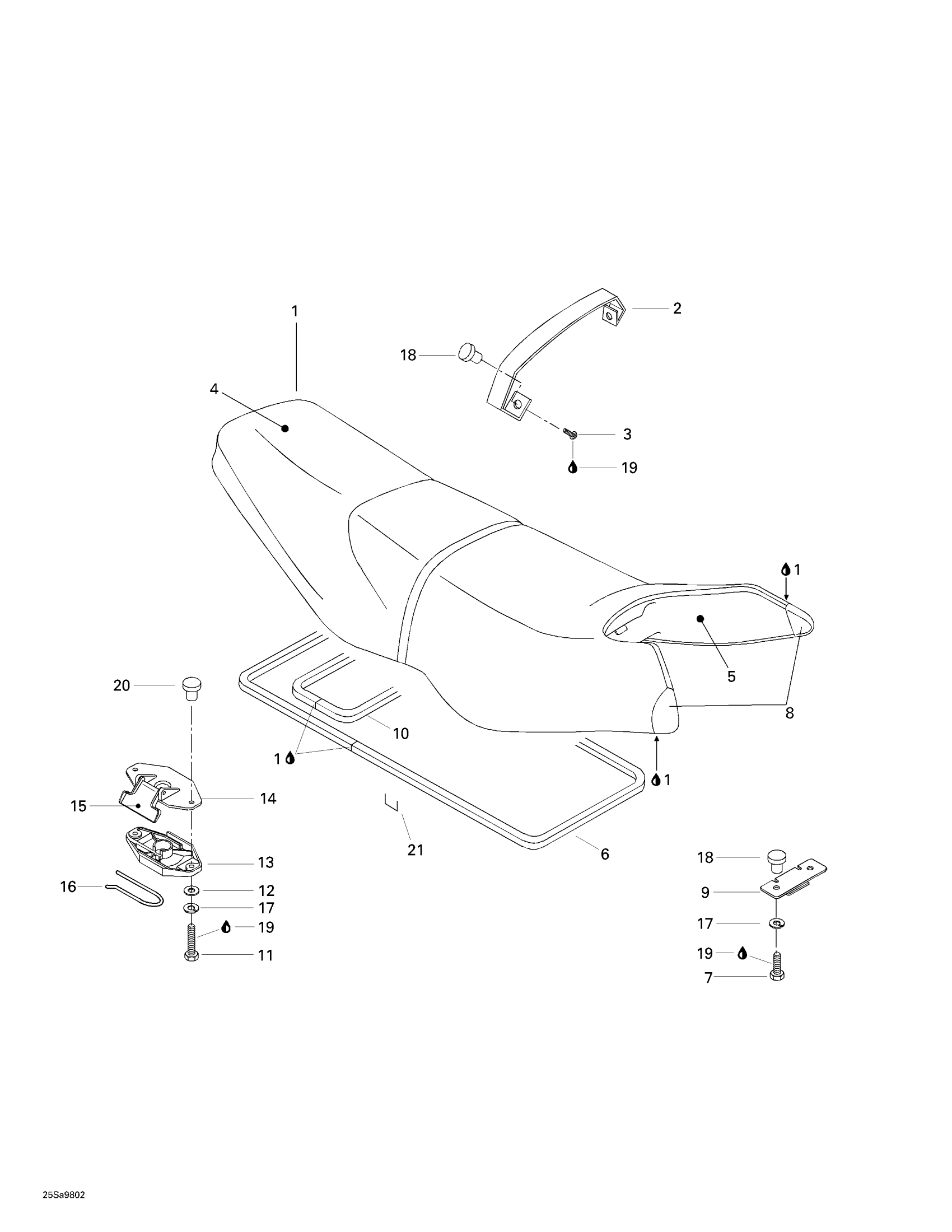

Sea-doo GS, 5626/5844, 1998 Seat And Engine Cover Diagram

#

Description
Price

1

Seat Ass'y (Indigo) | Includes 1 - 21.

269000452

Unavailable

1

Not Available As Spare Part - Friction Washer

Unavailable

2

Seat Strap

269000370

Unavailable

3

Socket Screw Button Head M6 X 10 | DS 650

250000436

Unavailable

4

Seat Cover with Foam

269000368

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Was 293200017 Neoprene Seal

219704365

Unavailable

7

Hex. Screw M6 X 16

207161660

Unavailable

8

RH Corner Seat

269000365

Unavailable

LH Corner Seat

269000366

Unavailable

9

Base Keeper

291000174

Unavailable

10

Was 293200017 Neoprene Seal

219704365

Unavailable

11

Hex. Screw M6 X 25

207162560

Unavailable

12

Stainless Flat Washer M6

234061600

$0.25

13

Latch Ass'y

269700109

Unavailable

14

Latch Ass'y

269700109

Unavailable

15

Latch Ass'y

269700109

Unavailable

16

Latch Spring

269700017

$7.27

17

Lock Washer Helical M6

234161601

Unavailable

18

Threaded Insert

211100035

Unavailable

19

Loctite 243, 10 ml

293800060

$20.77

20

NUT-T-SHAPE - Call your local BRP dealership

211100038

Unavailable

21

Staple

293730005

Unavailable
