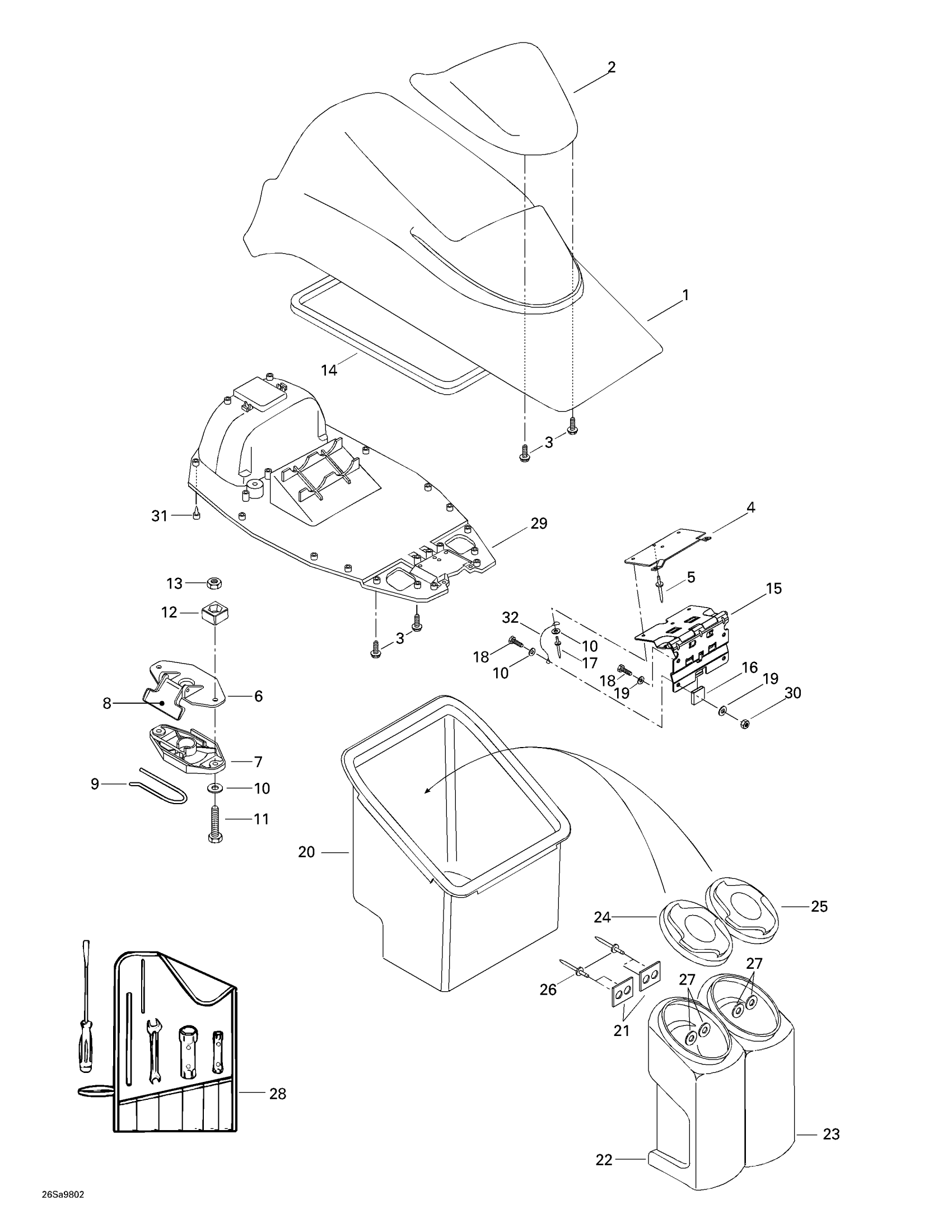

Sea-doo GS, 5626/5844, 1998 Front Storage Compartment Diagram

#

Description
Price

1

Upper Storage Cover

269500365

Unavailable

2

Deflector

269500367

Unavailable

3

Hex. Flange Screw K40 X 13

241141360

Unavailable

4

Retainer Plate

269500280

Unavailable

5

Pop Rivet 3/16"

293150039

Unavailable

6

Latch Ass'y | Includes 27 - 30.

269000465

Unavailable

6

Latch Ass'y

269700109

Unavailable

7

Latch Ass'y

269700109

Unavailable

8

Latch Ass'y

269700109

Unavailable

9

Latch Spring

269700017

$7.27

10

Stainless Flat Washer M6

234061600

$0.25

11

Hex. Screw M6 X 30

207063060

Unavailable

12

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

Unavailable

13

Hex. Nut M6

232061600

Unavailable

14

Was 293200017 Neoprene Seal

219704365

Unavailable

15

Hinge Ass'y

269500522

Unavailable

16

Protector Cap

293830046

Unavailable

17

Pop Rivet 3/16"

293150039

Unavailable

18

SCREW-SOCKET BN.HD.M6 X 20 - Call your local BRP dealership

211000018

Unavailable

19

Flat Washer M6, Stainless

234062600

Unavailable

20

Storage Tray

269500286

Unavailable

21

GASKET - Call your local BRP dealership

293250037

Unavailable

22

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

23

EXTINGUISHER HOUSING - Call your local BRP dealership

269500606

Unavailable

24

EXTINGUISHER HOUSING CAP - Call your local BRP dealership

269501939

Unavailable

25

Storage Housing Cap

269500237

Unavailable

26

RIVET_POP 1/8 X ,487 - Call your local BRP dealership

293150032

Unavailable

27

Flat Washer M3, Stainless

234032600

$0.54

28

Tool Kit

295000066

Unavailable

29

Lower Storage Cover

269500520

Unavailable

30

Hex. Elastic Stop Nut M6

232561600

$0.92

31

Rubber Bumper

293830005

$5.33

32

RETAINER CABLE - Call your local BRP dealership

269500524

$23.82
