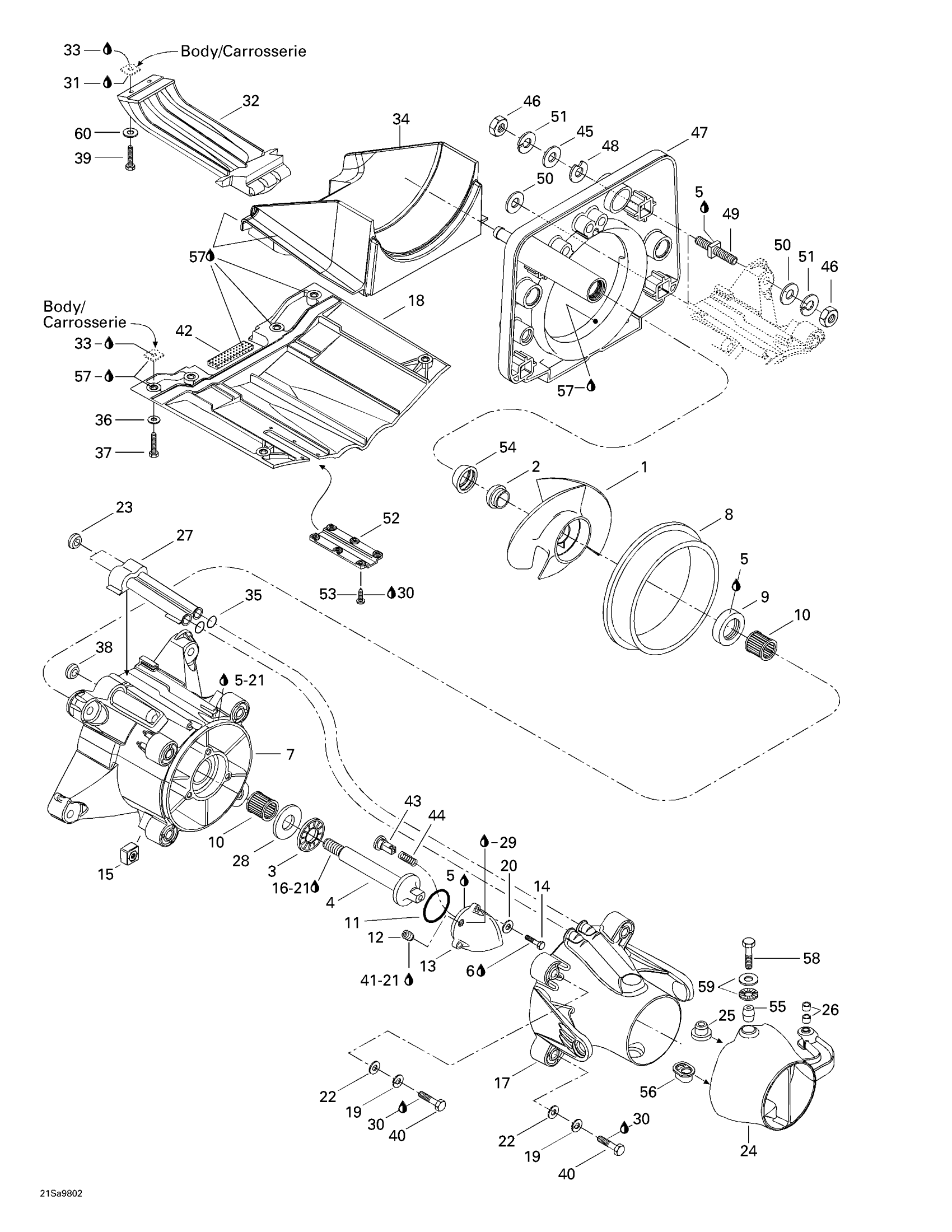

Sea-doo GS, 5626/5844, 1998 Propulsion System Diagram

#

Description
Price

1

STAINLESS STEEL IMPELLER ASS'Y - Call your local BRP dealership

271000821

Unavailable

2

Impeller Boot

271000516

Unavailable

3

BEARING THRUST - Call your local BRP dealership

293350019

Unavailable

4

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

5

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

6

Loctite 243, 10 ml

293800060

$20.77

7

IMPELLER HOUSING ASS'Y - Call your local BRP dealership | Includes 7 - 10.

295500429

Unavailable

8

Wear Ring

271000290

Unavailable

9

Oil Seal

267000094

Unavailable

10

Needle Bearing

293350017

Unavailable

11

O-Ring

293300011

Unavailable

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

Unavailable

13

IMPELLER COVER - Call your local BRP dealership

271000670

Unavailable

14

Hex. Screw M5 X 20

207152060

Unavailable

15

Square Nut M8

211100033

Unavailable

16

Loctite 271, 10 ml

293800005

Unavailable

17

Venturi Ass'y

271000428

Unavailable

18

Riding Plate (Black)

271000735

Unavailable

19

Lock Washer 8 mm, Stainless

234181601

Unavailable

20

Flat Washer M5, Stainless

234051600

$0.64

21

Was 293800041 Loctite Primer 7649

219704458

Unavailable

22

Flat Washer 8 mm, Stainless

234082600

Unavailable

23

O-RING - Call your local BRP dealership

293300040

Unavailable

24

Steering Nozzle Ass'y | Includes 24 - 26.

271000634

Unavailable

25

Venturi Bushing

293900001

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

WATER OUTLET - Call your local BRP dealership

271000366

Unavailable

28

THRUST WASHER - Call your local BRP dealership

293350020

Unavailable

29

JET PUMP OIL SYNTHETIC 6 FL OZ / 178 ML | 4X4

779221

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

Unavailable

32

INLET GRATE - Call your local BRP dealership

271000732

Unavailable

33

Silicone Sealant 51388, 300 ml

296000309

Unavailable

34

Shoe (Black)

271000592

Unavailable

35

O-Ring

293300013

$5.69

36

Stainless, Flat Washer 8 mm

234081600

Unavailable

37

Hex. Screw M8 X 30

207183060

Unavailable

38

O Ring

293300046

Unavailable

39

Hex. Screw M6 X 25

207162560

Unavailable

40

HEX. SCREW M8 X 60 - Call your local BRP dealership

207086060

Unavailable

41

Was 293800013 Loctite 56765

219704454

Unavailable

42

Neoprene Seal (1PAC=3M)

219704364

$22.72

43

Pusher

271000898

Unavailable

44

SPRING - Call your local BRP dealership

271000704

Unavailable

45

Flat Washer 10 mm, Stainless

234002600

Unavailable

46

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

47

pump Support

271000737

Unavailable

48

Shim 0.3 mm

272000053

Unavailable

49

Square Stud

250300022

Unavailable

50

Flat Washer 10 mm, Stainless

234001600

Unavailable

51

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

52

Ride Shoe Cap

291000446

Unavailable

53

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

54

Impeller Ring

271000517

Unavailable

55

Sleeve

271001816

Unavailable

56

Plastic Bushing

293900010

Unavailable

57

Instant Gasket

219701421

Unavailable

58

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

59

Thrust Washer

211200002

Unavailable

60

Stainless Flat Washer M6

234061600

$0.25
