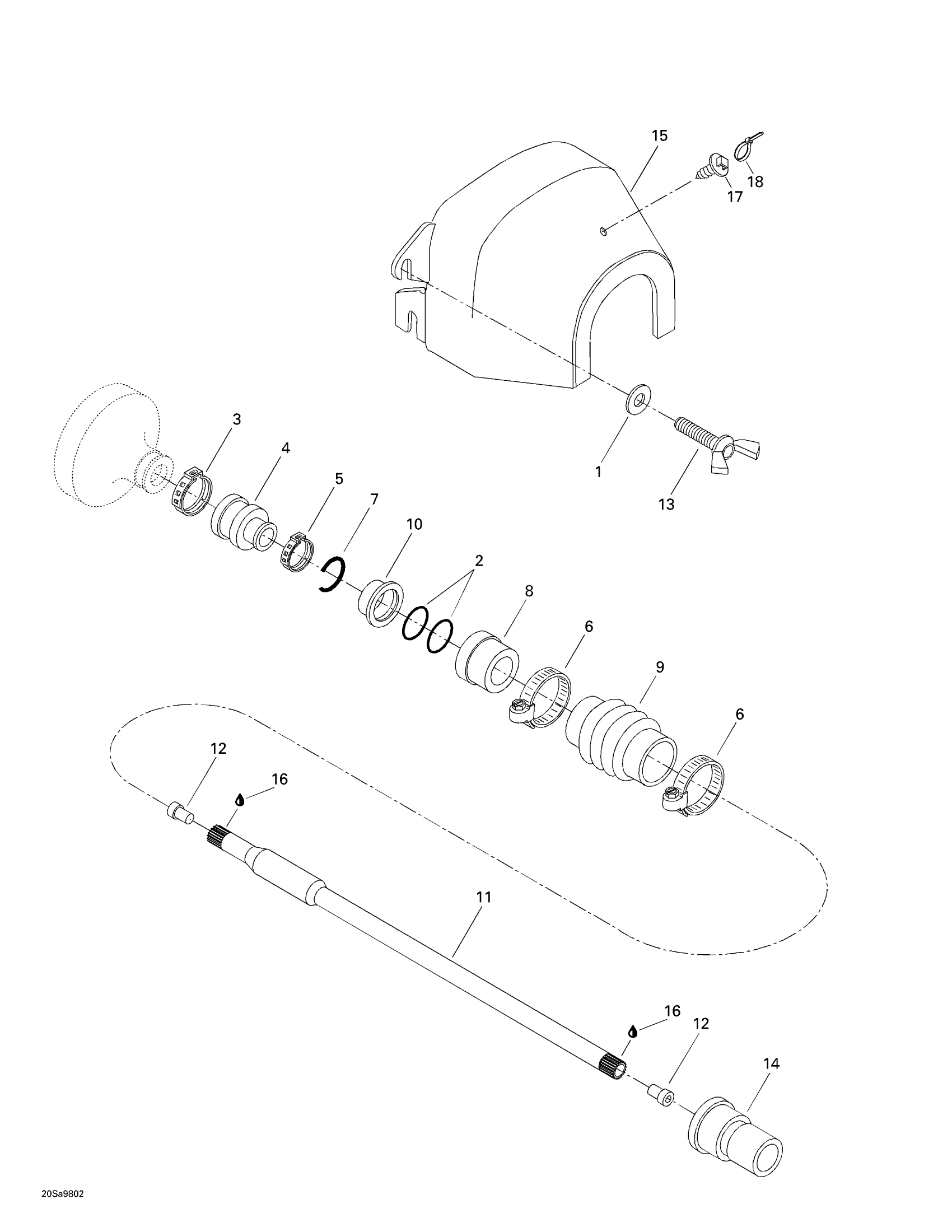

Sea-doo GS, 5626/5844, 1998 Drive System Diagram

#

Description
Price

1

Flat Washer M6, Stainless

234062600

Unavailable

2

O-Ring

293300032

Unavailable

3

OETIKER CLAMP - Call your local BRP dealership

293650021

Unavailable

4

RUBBER BOOT - Call your local BRP dealership

272000001

Unavailable

5

OETIKER CLAMP - Call your local BRP dealership

293650067

Unavailable

6

Norma Clamp

293650075

Unavailable

7

C-CLIP - Call your local BRP dealership

272000135

Unavailable

8

Carbon Ring

272000770

Unavailable

9

BELLOWS - Call your local BRP dealership

272000184

Unavailable

10

Support Ring

272000064

Unavailable

11

Drive Shaft

272000096

Unavailable

12

DRIVE SHAFT PLUG - Call your local BRP dealership

272000019

Unavailable

13

Wing Screw M6 x 16

211000070

Unavailable

14

HULL INSERT, 33 MM - Call your local BRP dealership

292000075

Unavailable

15

Flywheel Guard

272000132

Unavailable

16

Synthetic Grease, 400 G

293550010

Unavailable

17

Mount Dart

293730040

$0.86

18

Tie Wrap 142 mm

293750002

Unavailable
