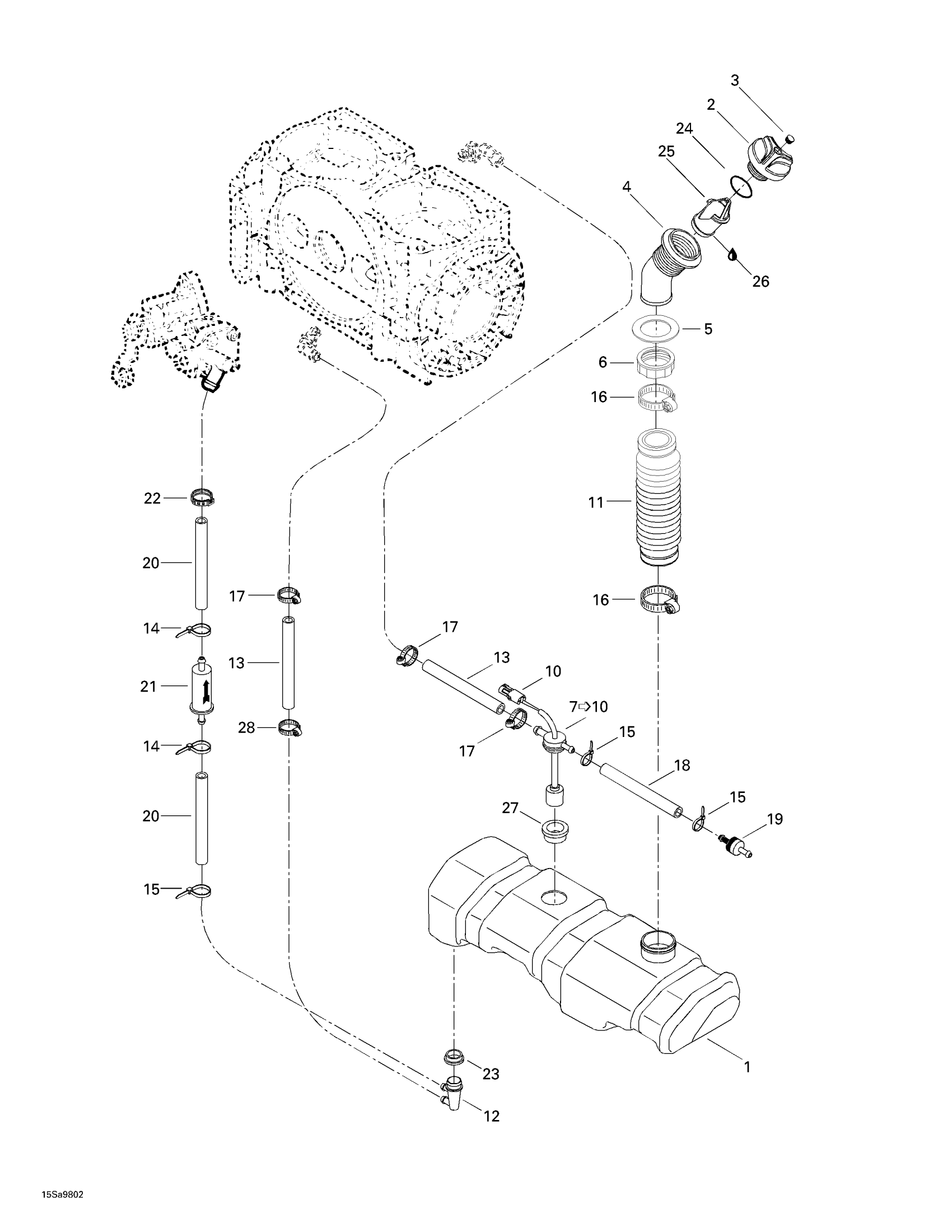

Sea-doo GS, 5626/5844, 1998 Oil Injection System Diagram

#

Description
Price

1

Oil Tank

275000238

Unavailable

2

OIL CAP ASS'Y - Call your local BRP dealership | Includes 2 - 3.

275000178

Unavailable

3

Snap Cap

293000051

Unavailable

4

Filler Neck

275000187

Unavailable

5

Gasket

293250029

Unavailable

6

Filler Neck Nut, Fuel

211100012

Unavailable

7

OIL LEVEL SENSOR ASS'Y - Call your local BRP dealership | Includes 33 - 36.

204470106

Unavailable

8

Wire Seal

278000218

Unavailable

9

Male Terminal | XT Models

278000222

$2.55

10

Female Housing, 2 Circuits

278000217

Unavailable

11

Filler Hose

275000188

Unavailable

12

FITTING ELBOW 90 - Call your local BRP dealership

293710051

Unavailable

13

Was 275500008 Hose 12 mm

219704356

Unavailable

14

Tie Wrap 94 mm | 4X4

293750001

$0.83

15

Tie Wrap 142 mm

293750002

Unavailable

16

Tridon Clamp

293650035

Unavailable

17

Tridon Gear Clamp

293650170

$1.74

18

HOSE-6MM. 5000MM LONG - Call your local BRP dealership

219704396

Unavailable

19

Check Valve

275500398

Unavailable

20

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

21

OIL FILTER - Call your local BRP dealership

275000051

Unavailable

22

Oetiker Clamp

293650042

Unavailable

23

Grommet

293720008

Unavailable

24

GASKET - Call your local BRP dealership This part replaces 293250075.

293250211

Unavailable

25

Restrictor

275000190

Unavailable

26

Était/Was 293800038 Loctite 518, 50 ml

219704456

Unavailable

27

Grommet

204470104

Unavailable

28

Norma Clamp

293650084

Unavailable
