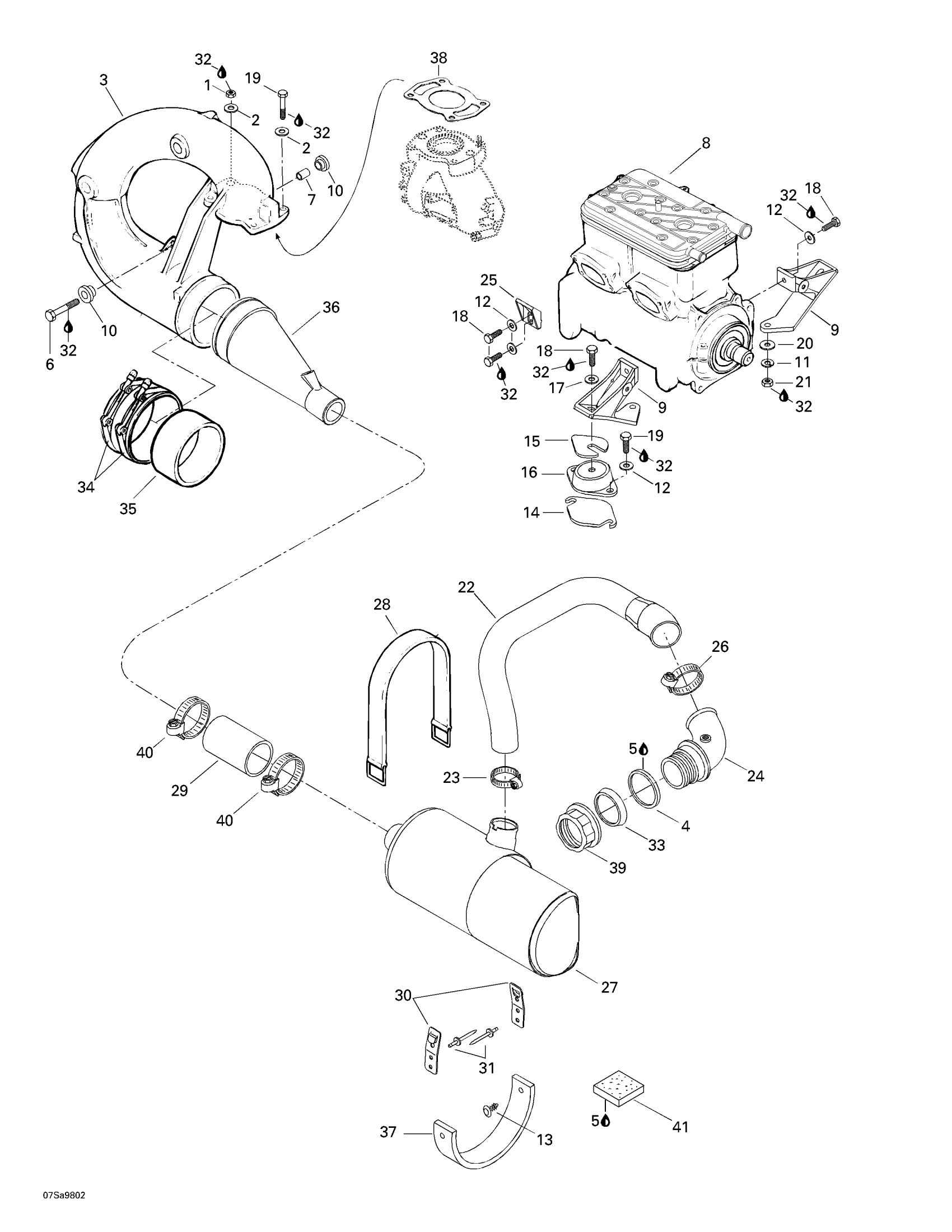

Sea-doo GS, 5626/5844, 1998 Engine Support And Muffler Diagram

#

Description
Price

1

Hex. Nut M8

232081600

Unavailable

2

Flat Washer M8.5 x 18

293050001

Unavailable

3

Tuned Pipe Ass'y

274000487

Unavailable

4

GASKET - Call your local BRP dealership

293250041

Unavailable

5

Silicone Sealant 51388, 300 ml

296000309

Unavailable

6

Hex. Screw M8 X 40

207084060

Unavailable

7

Bushing

274000114

Unavailable

8

Rotax Eng. 717 Single Carb. (Silver)

270000350

Unavailable

9

RH Engine Support

270000180

Unavailable

LH Engine Support

270000181

Unavailable

10

Rubber Bushing

293830031

Unavailable

11

Helicoidal Lock Washer M10 | XT Models

234101601

Unavailable

12

Stainless, Flat Washer 8 mm

234081600

Unavailable

13

Black, Dart

293730011

Unavailable

14

Shim 0.4 mm

270000006

Unavailable

Shim 1.3 mm

270000007

Unavailable

15

SHIM 0.4 MM - Call your local BRP dealership

270000024

Unavailable

SHIM 1.3 MM - Call your local BRP dealership

270000025

Unavailable

16

Rubber Mount

270000425

Unavailable

17

Flat Washer 8 mm, Stainless

234082600

Unavailable

18

HEX. SCREW M8 X 25 - Call your local BRP dealership

207182560

Unavailable

19

Hex. Screw M8 X 30

207183060

Unavailable

20

Flat Washer 10 mm, Stainless

234001600

Unavailable

21

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

22

Exhaust Hose

274000585

Unavailable

23

Tridon Clamp

293650036

$5.86

24

EXHAUST OUTLET - Call your local BRP dealership | Engine 1503 BVIC

274000542

Unavailable

25

Front Engine Support

270000179

Unavailable

26

Tridon Clamp

293650064

Unavailable

27

Muffler

274000533

Unavailable

28

Retainer Strap

293850097

Unavailable

29

EXHAUST HOSE - Call your local BRP dealership

274000032

Unavailable

30

STRAP CLIP - Call your local BRP dealership

293850024

Unavailable

31

Avdel Rivet 3/16"

293150037

$0.47

32

Loctite 243, 10 ml

293800060

$20.77

33

STABILIZING WASHER - Call your local BRP dealership

274000225

Unavailable

34

NORMA CLAMP - Call your local BRP dealership

293650068

Unavailable

35

Sealing Ring

274000074

Unavailable

36

Exhaust Cone Ass’Y

274000488

Unavailable

37

Rubber Pad

293830055

Unavailable

38

Exhaust Gasket This part replaces 290950253.

420950253

Unavailable

39

Nut 72 mm

274000224

Unavailable

40

Tridon Clamp

293650023

Unavailable

41

Pad Rubber

293830059

Unavailable
