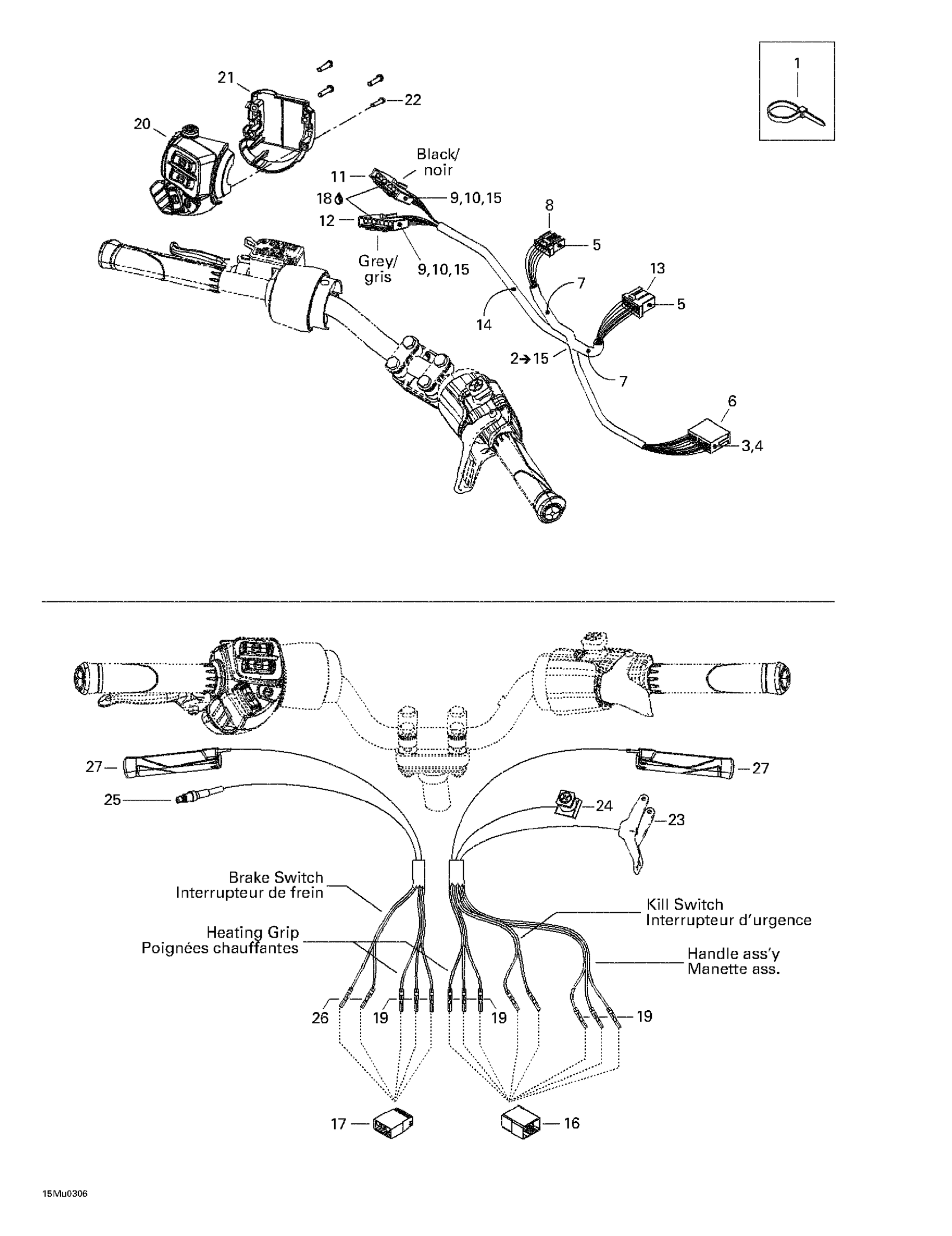

Ski-Doo Grand Touring V-1000, 2003 Steering Harness Diagram

#

Description
Price

1

Tie Wrap 142 mm

293750002

Unavailable

1

Tie-Rap 173 mm

293750009

Unavailable

1

Tie-Rap 180 mm

414115200

$0.09

1

Tie Wrap 368 mm

293750008

$0.85

2

Wiring Harness | Includes 1 - 14.

515175844

Unavailable

3

Male Terminal

515175232

$1.49

4

MALE TERMINAL - Call your local BRP dealership

515175273

Unavailable

5

Female Terminal

515175231

Unavailable

6

MALE TERMINAL HOUSING, 13 CIRCUITS - Call your local BRP dealership

515175352

$12.02

7

Tubing 10 MM 1000MM Long

219704407

Unavailable

8

Female Terminal Housing, 6 Circuits

515175543

$8.57

9

FEMALE TERMINAL - Call your local BRP dealership

515175808

$5.74

10

FEMELLE LOCK, 8 CIRCUITS - Call your local BRP dealership

515175809

$7.65

11

FEMALE TERMINAL HOUSING 8 CIRCUITS BLACK - Call your local BRP dealership

515175807

$2.69

12

FEMALE TERMINAL HOUSING, 8 CIRCUITS - Call your local BRP dealership

515175810

Unavailable

13

Female Terminal Housing, 8 Circuits

515175819

$7.46

14

LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership

219704427

Unavailable

15

Female Terminal

515175941

$2.48

16

Male Terminal Housing, 8 Circuits

515175817

Unavailable

17

Male Terminal Housing, 6 Circuits

515175662

Unavailable

18

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

19

Male Terminal

515175232

$1.49

20

LH HOUSING SWITCH - Call your local BRP dealership

515175772

Unavailable

21

Switch Housing Plate

515175926

Unavailable

22

Torx Screw #8-18

250000263

$1.02

23

Handle Ass’Y

512059624

Unavailable

24

Emergency Stop Switch | Includes 91 to 91a

515177362

$84.58

25

Microswitch

507032366

Unavailable

26

Male Terminal

515175232

$1.49

27

Handle Grip

506152238

Unavailable
