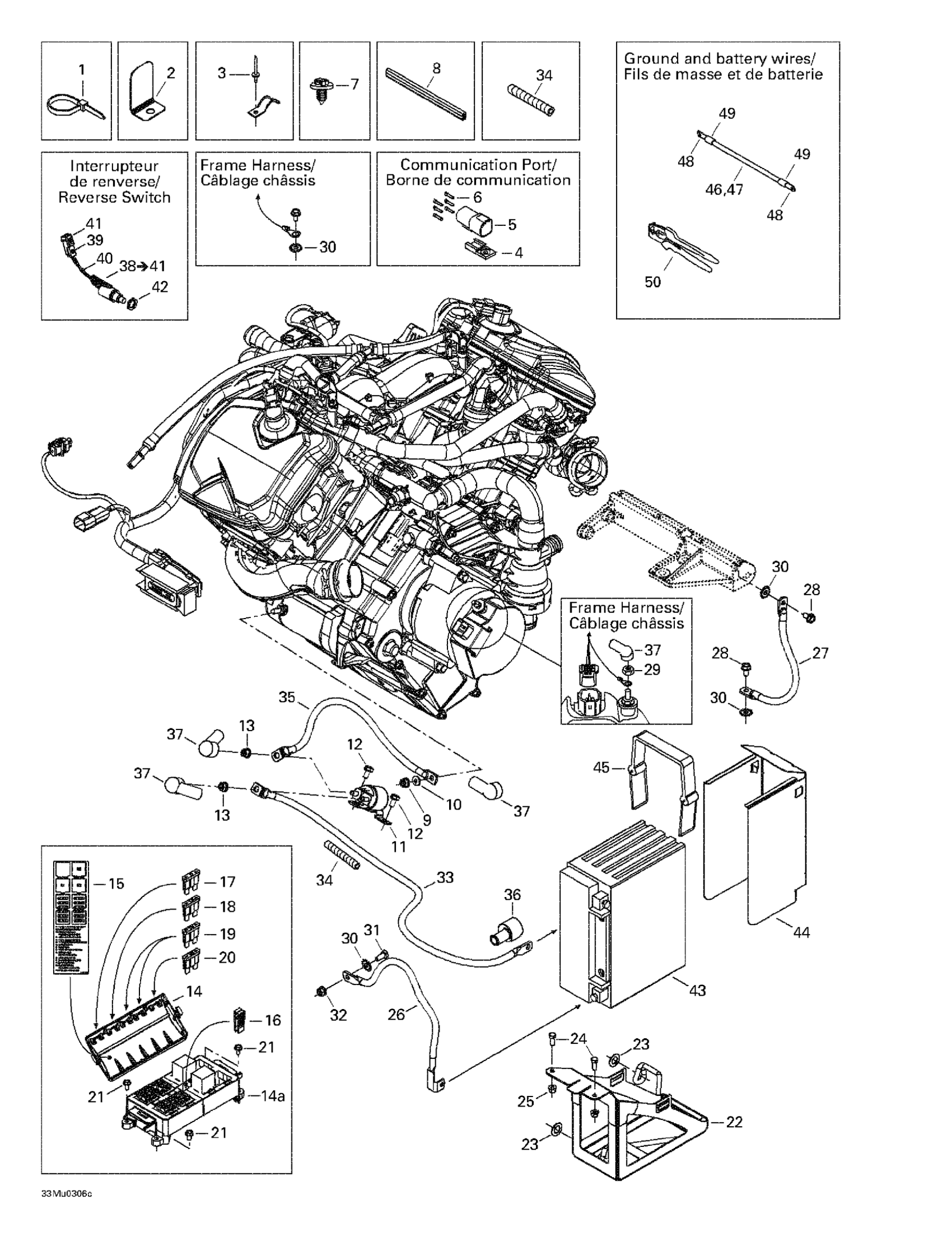

Ski-Doo Grand Touring V-1000, 2003 Battery And Starter Diagram

#

Description
Price

1

Tie Wrap 142 mm

293750002

Unavailable

Tie-Rap 180 mm

414115200

$0.09

Tie-Rap 173 mm

293750009

Unavailable

Tie Wrap 368 mm

293750008

$0.85

2

Tab Lock

518322530

Unavailable

3

Pop Rivet 3/16"

390402400

Unavailable

4

Clip

270000141

$8.33

5

Male Terminal Housing, 6 Circuits

515175668

$14.02

6

Sealing Cap

293000052

Unavailable

7

Mount Dart

293730040

$0.86

8

Was 271000110 Protection Trim

219704353

Unavailable

9

Elastic Stop Nut M6

232561414

Unavailable

10

Flat Washer 6 mm

234061410

Unavailable

11

Starter Relay

515176011

Unavailable

12

Hex. Flange Screw M6 X 12

210261250

$1.56

13

Elastic Stop Nut M6

232561414

Unavailable

14

COVER - Call your local BRP dealership

515176066

Unavailable

14a

Fuse Box Base

515175739

Unavailable

15

Fuse Decal

516001613

Unavailable

16

FUSE TOOL - Call your local BRP dealership

515175811

Unavailable

17

Fuse, 5 Amperes | CE

278000344

$3.22

18

FUSE, 7.5 AMPERES - Call your local BRP dealership | CE

278000704

Unavailable

19

Fuse, 20 Amperes

409003900

$3.22

20

Fuse, 30 Amperes

410917200

$3.22

21

Hex. Forming Screw M5 X 16

210251650

Unavailable

22

Battery Support

515175954

Unavailable

23

Washer

503175800

$3.26

24

Hex. Screw M5 X 14

207151444

Unavailable

25

Hex. Flange Elastic Nut M5

233251414

Unavailable

26

Not Available As Spare Part - Friction Washer

Unavailable

27

Not Available As Spare Part - Friction Washer

Unavailable

28

Hex. Flange Screw M6 X 12

210261250

$1.56

29

Elastic Stop Nut M6

232561414

Unavailable

30

Lock Washer Serrated M6

250200041

Unavailable

31

Hex. Screw M6 X 16

207161644

Unavailable

32

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

33

Not Available As Spare Part - Friction Washer

Unavailable

34

Was 409901700 Tubing (9 mm)

219704399

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Protector Cap | XT

515175919

$16.89

37

PROTECTOR CAP - Call your local BRP dealership

278001771

Unavailable

38

Switch Ass'y

515176472

$71.51

39

Male Terminal

515175232

$1.49

40

Tape

293740005

Unavailable

41

Male Terminal Housing, 2 Circuits

515175654

$7.48

42

BRASS NUT - Call your local BRP dealership

250100012

Unavailable

43

Battery, 12 Volts, 21 Amperes | Includes 8a to 8a1

219800519

Unavailable

44

DEFLECTOR - Call your local BRP dealership

515175616

Unavailable

45

Battery Strap This part replaces 515175955.

605356180

Unavailable

46

Ground Cable Battery, no 6, meter)

278001680

Unavailable

47

Cable Battery, no 6, meter)

278001690

Unavailable

48

Terminal 45°, Small Hole

278001682

Unavailable

TERMINAL 45, SMALL HOLE - Call your local BRP dealership

278001683

Unavailable

TERMINAL 90, SMALL HOLE - Call your local BRP dealership

278001684

Unavailable

FLAT TERMINAL, BIG HOLE - Call your local BRP dealership

278001685

Unavailable

TERMINAL 45, BIG HOLE - Call your local BRP dealership

278001686

Unavailable

TERMINAL 90, BIG HOLE - Call your local BRP dealership

278001687

Unavailable

FLAT TERMINAL - Call your local BRP dealership

278001688

Unavailable

Terminal 30°, 2 Holes

278001776

Unavailable

49

Was 710000483 Heat Shrink Tubing

219704447

Unavailable

50

Crimp Plier

529035730

Unavailable
