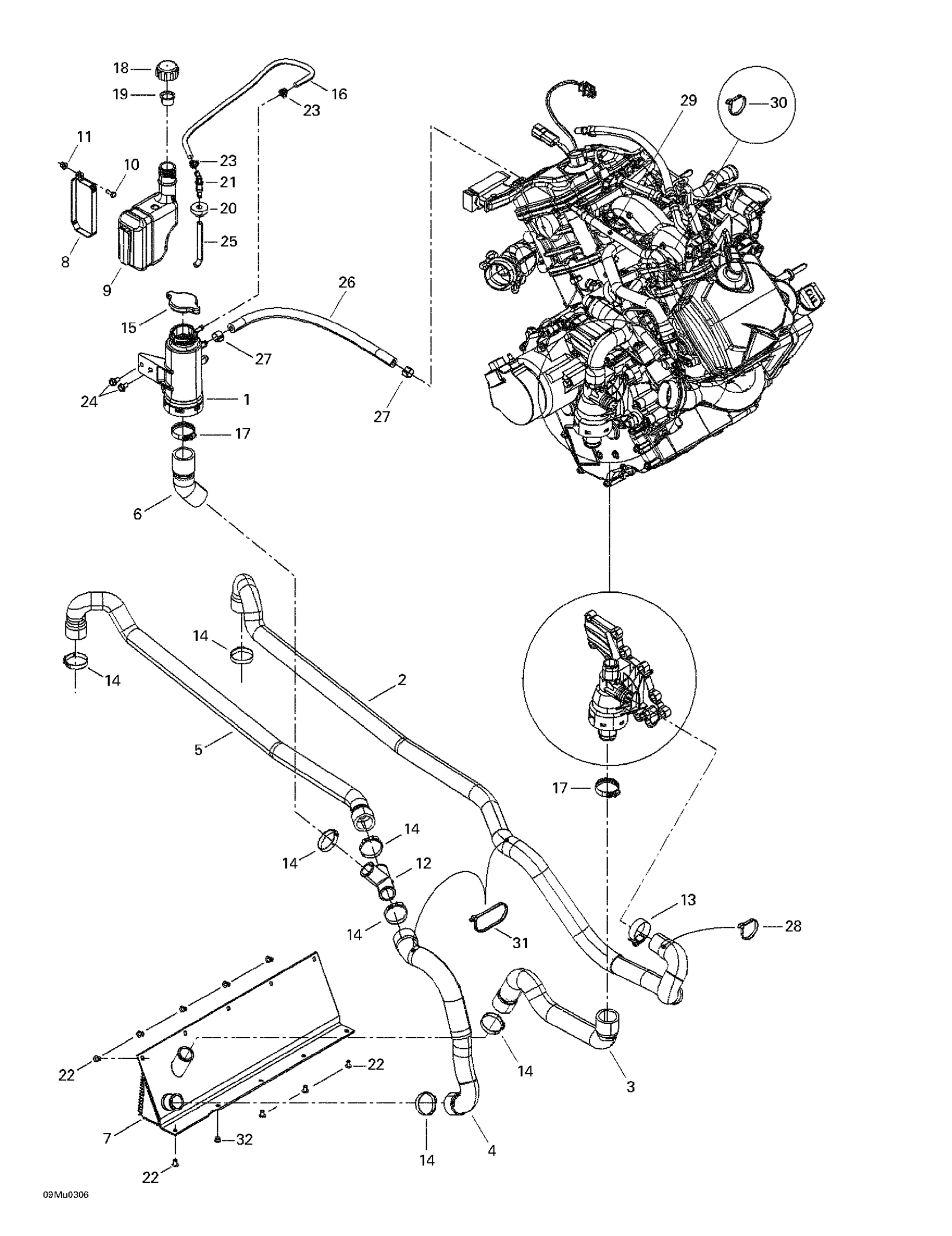

Ski-Doo Grand Touring V-1000, 2003 Cooling System Diagram

#

Description
Price

1

FILLER NECK ASS'Y - Call your local BRP dealership

509000176

Unavailable

2

OUTLET HOSE - Call your local BRP dealership

509000103

Unavailable

3

INLET HOSE - Call your local BRP dealership

509000104

Unavailable

4

Front Hose Radiator

509000193

Unavailable

5

REAR HOSE RADIATOR - Call your local BRP dealership

509000105

Unavailable

6

Tank Hose

509000195

Unavailable

7

Front Radiator

509000146

Unavailable

8

COOLANT TANK SUPPORT - Call your local BRP dealership

509000191

Unavailable

9

COOLANT TANK - Call your local BRP dealership

709200099

Unavailable

10

Hex. Screw M5 X 12

207151244

$0.85

11

Hex. Flange Elastic Nut M5

233251414

$1.91

12

T-Fitting

509000219

$14.90

13

TRIDON GEAR CLAMP - Call your local BRP dealership

408800400

Unavailable

14

Oetiker Gear Clamp 36.1MM

509000045

$4.07

15

Radiator Pressure Cap

509000180

$13.42

16

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

17

Tridon Gear Clamp

293650045

$5.18

18

TANK CAP - Call your local BRP dealership

709200009

Unavailable

19

PROTECTION CAP - Call your local BRP dealership

709200205

Unavailable

20

Grommet

709200285

$8.13

21

Elbow Male Connector

414580600

$4.01

22

Pop Rivet 3/16"

390402200

$0.30

23

Spring Clamp

414554800

$0.81

24

Hex. Flange Screw M6 X 12

210261250

$1.79

25

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$114.15

26

Hose 8 mm

509000093

Unavailable

27

Oetiker Clamp

293650125

$3.09

28

Tie-Rap 180 mm

414115200

$0.10

29

Tubing 16 Mm 1000Mm Long

219704408

$7.15

30

Tie Wrap 142 mm

293750002

$1.01

31

Tie Wrap 368 mm

293750008

$0.97

32

Pop Rivet 3/16"

390402400

$0.28
